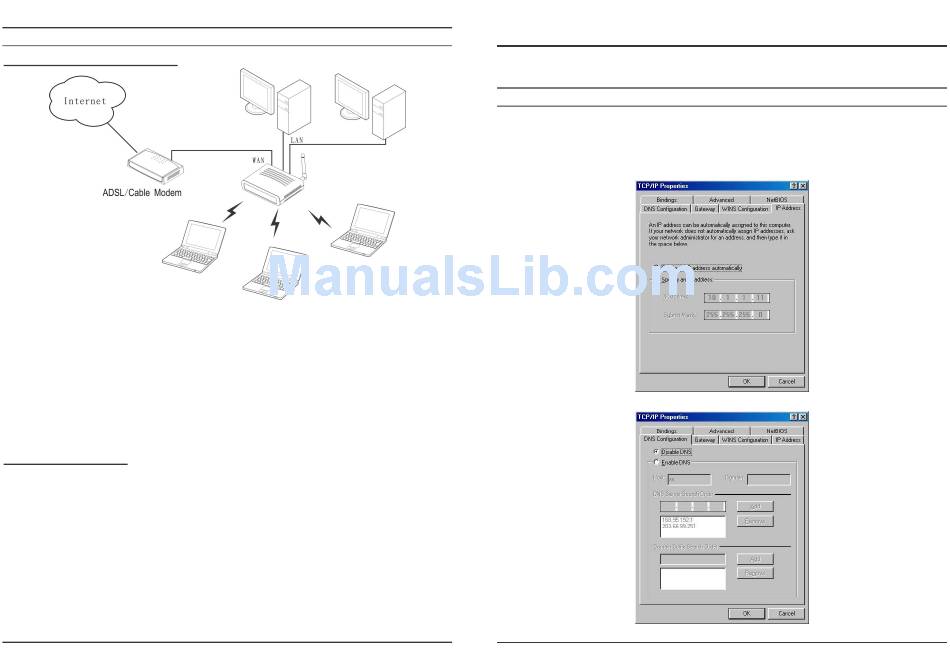

Hardware connections

1. Plug in one end of the network cable to the WAN port of the WLAN Router.

2. Plug in the other end of the network cable to the Ethernet port of the xDSL or

Cable modem.

3. Use another network cable to connect to the Ethernet card on the computer

system; the other end of the cable connects to the LAN port of the WLAN

Router. Since the 108Mbps Super-G

can connect up to four computers directly to the unit. There you do not have to

buy a switch to connect these computers since one WLAN Router functions both

as a connection-sharing unit and as a switch.

The control LEDs of the WLAN Router are clearly visible and the status of the

network link can be seen instantly:

1. With the power source on, once the device is connected to the broadband modem,

the Power, System, LAN, WLAN and WAN port LEDs of the WLAN Router

will light up indicating a normal status.

2. While the WAN is link up to the ADSL/Cable modem, the WAN port's LED

will light up.

3. While the LAN is link up to the computer system, the LAN port's LED will light

up.

Wireless LAN Router has four ports, you

The network TCP/IP settings differ based on the computer's operating system

(Win95/98/ME/NT/2000/XP) and are as follows.

1. Click on the "Network neighborhood" icon found on the desktop.

2. Click the right mouse button and a context menu will be show.

3. Select "Properties" to enter the TCP/IP setting screen.

4. Select "Obtain an IP address automatically" on the "IP address" field.

5. Select "Disable DNS" in the "DNS" field.
