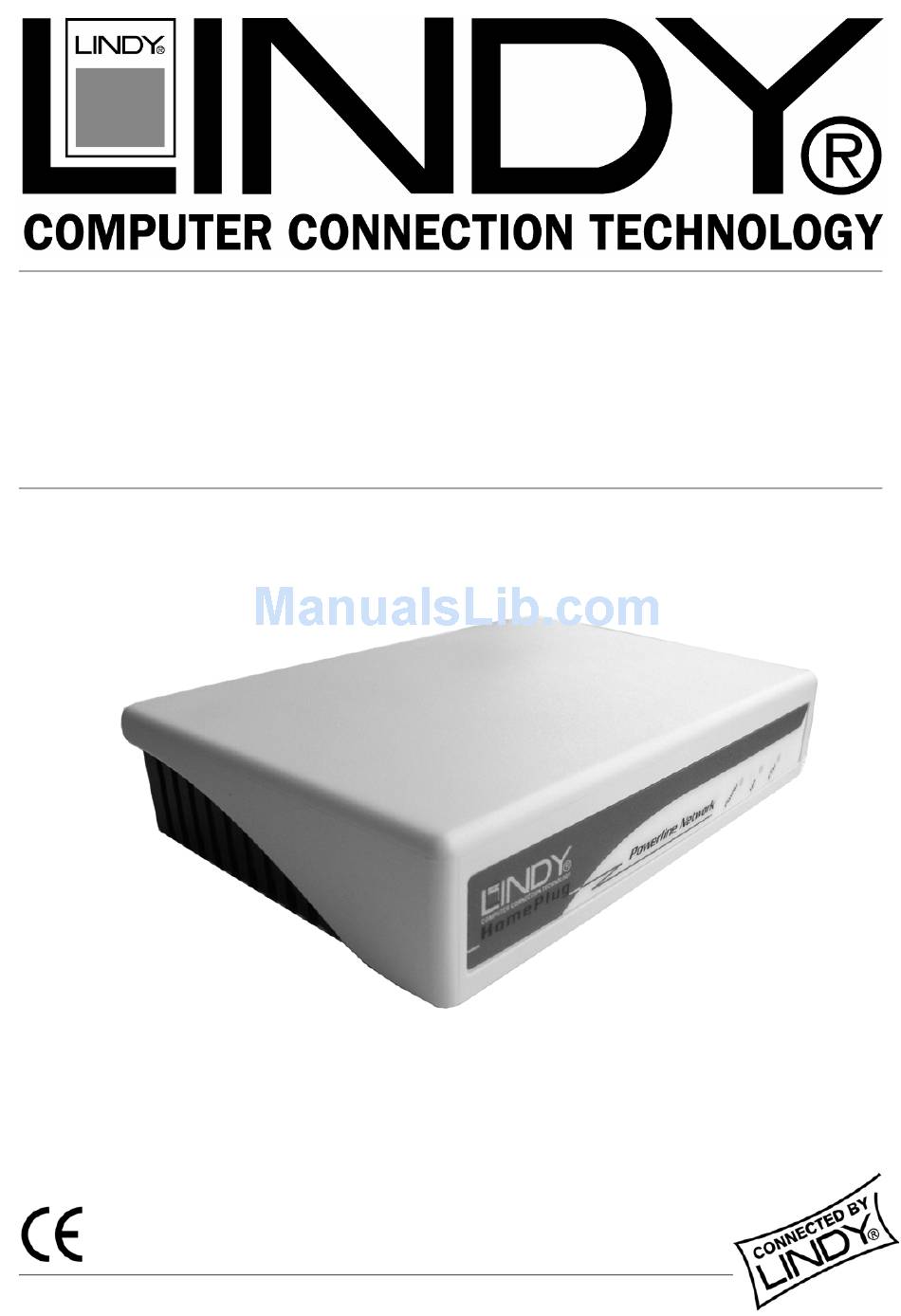

- Page 1 HomePlug Ethernet Bridge User Manual English LINDY No. 25120 www.LINDY.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (Feb 2004)
- Page 2 Thank you for purchasing a LINDY HomePlug product. HomePlug technology makes setting up a home or small office network quick and easy! HomePlug allows you to create a network using electrical power lines. Simply plug a LINDY HomePlug Ethernet Bridge into your computers Ethernet port and then into a mains socket. The...
- Page 3 Make sure that all devices are loaded with the same password! Each LINDY HomePlug device has a Default Encryption Key (DEK) which is printed on the bottom of the module. The DEK is required when setting up a new password.
- Page 4 Enter a User Name and Organisation, and select either ‘Anyone who uses this computer’ or ‘Only for me’, according to your preference. Click ‘Next’ to continue. Review or change your installation settings, then click ‘Install’. LINDY HomePlug Ethernet Bridge Page 4...
- Page 5 (See ‘Connecting the HomePlug Ethernet Bridge’ on page 6). Click ‘OK’ to continue Installation is now complete, click ‘Finish’. Restart your computer for the changes to take effect by clicking ‘Yes’ LINDY HomePlug Ethernet Bridge Page 5 Manual...
- Page 6 HomePlug module. Plug the other end of the network cable into the RJ-45 network socket on your network device. Plug the mains cable into the socket and switch it on. Front View Rear View LINDY HomePlug Ethernet Bridge Page 6...
- Page 7 State Refresh Connect Link Quality LINDY HomePlug Ethernet Bridge Shows the MAC address of the local HomePlug adaptor. Click on this button to refresh the information about the locally connected HomePlug adaptor. When you have more than one HomePlug device connected directly to your computer you can select which one you want to connect to, by highlighting it in the device window, and clicking ‘Connect’.
- Page 8 Shows the speed that each remote device is connected at. The data rate will vary depending on the power line quality. Scan HomePlug Click here to scan for new HomePlug devices on the Network network. LINDY HomePlug Ethernet Bridge Page 8...
- Page 9 LINDY HomePlug Ethernet Bridge Enter a new network password here (the default password on all LINDY HomePlug devices is ‘HomePlug’). Note: the password is case sensitive and must be the same on all of the HomePlug devices on the network! Click here to set the network password for the local device.
- Page 10 Clicking this button applies the current network password to all the devices listed in the ‘Remote Passwords’ box. Remove Remove a device from the ‘Remote Passwords’ box by highlighting it and clicking this button. LINDY HomePlug Ethernet Bridge Page 10...
- Page 11 DEK number of the remote HomePlug device (located on the bottom of the device) in the Device Password box and click ‘Add’. The DEK number will appear in the ‘Remote Passwords’ box. LINDY HomePlug Ethernet Bridge Page 11 Manual...
- Page 12 Passwords’ box – each device will always be listed by its DEK number! Open the Security section and check the Network Password of the locally connected device – it will have changed to the new password (e.g. LINDY) LINDY HomePlug Ethernet Bridge Page 12...
- Page 13 ‘Refresh’. Note: When the password change is successful the link quality will be ‘Good’ or ‘Excellent’. When a HomePlug device with an incorrect password is present on the network, the link will be poor! LINDY HomePlug Ethernet Bridge Page 13...
-
Page 14: Radio Frequency Energy
2. This device must accept any interference received, including interference that may cause undesired operation For Home and Office Use Tested to comply with FCC Standards LINDY No. 25120 © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (Feb 2004)
