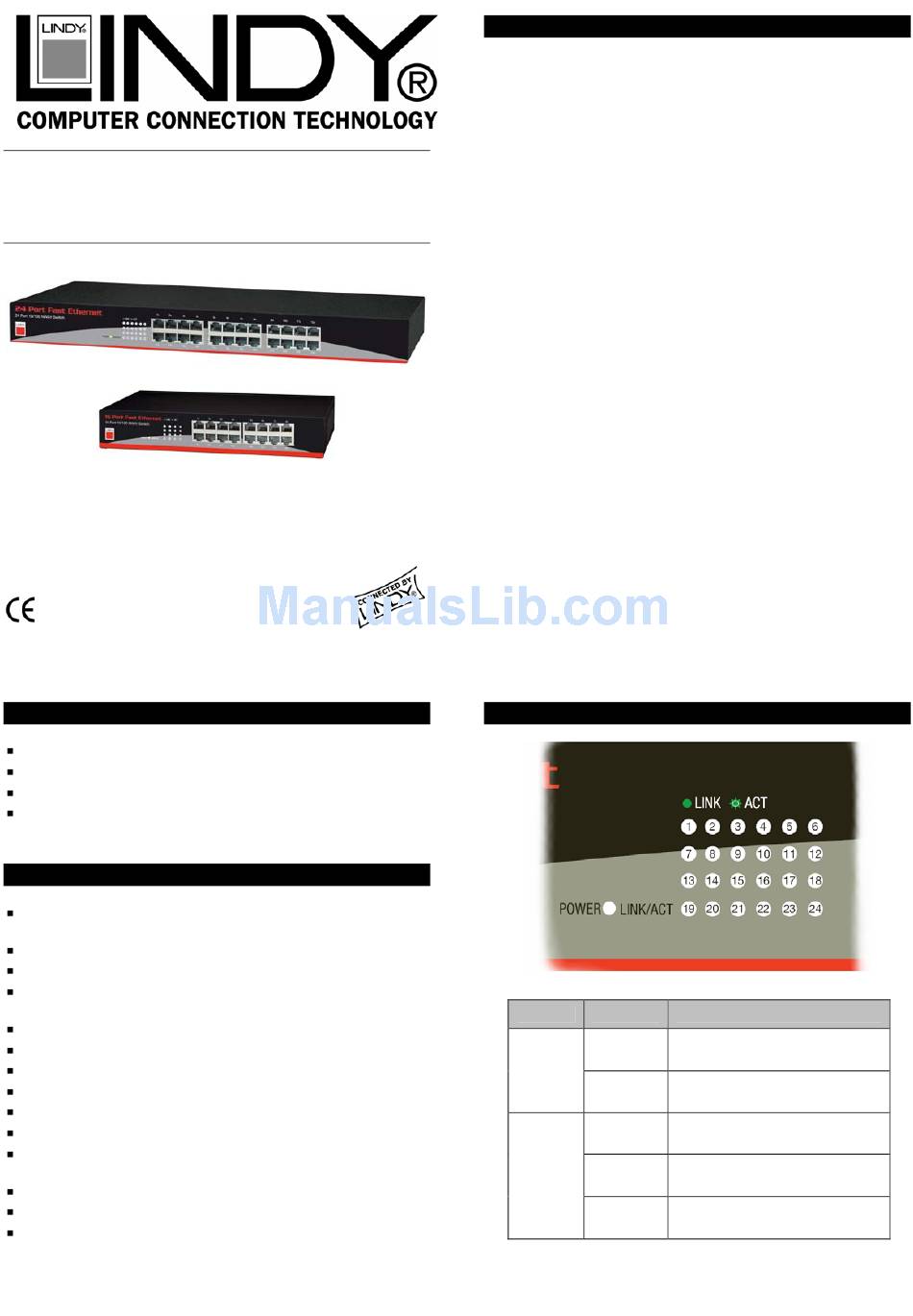

Lindy 25009 User Manual

16 & 24 Port Fast Ethernet
User Manual
LINDY No. 25009, 25017
www.lindy.com
Packing List
16 or 24 Port 10/100Mbps Fast Ethernet NWAY Switch
1 x power cable
19" Rack mount brackets with screws, rubber feet
This manual
Specifications
Standards: IEEE 802.3 10Base-T, 802.3u 100Base-TX,
IEEE 802.3x Flow Control
Ports: 16 or 24 x RJ-45 10/100Mbps Fast Ethernet
Auto MDI/MDI-X (Auto crossover)
Network speed: 10/100/Mbps & Full/Half-duplex mode auto
detection
Switching Architecture: Store and Forward
MAC Address: 8K
Buffer Memory: 160KB
NWAY Auto-negotiation: All ports
Dimensions: 441 x 130 x 44mm (WxDxH) 24 Port model
Dimensions: 441 x 161 x 44mm (WxDxH) 16 Port model
Power Supply: internal 3.3V, 4A (100 ~ 240V AC, 50 ~ 60
Hz, external)
Operating Temperature: 0-40°C
Operating Humidity: 10-90% (Non-condensing)
For indoor use only
NWAY Switch
English
Introduction
Thank you for purchasing the LINDY Fast Ethernet NWAY
Switch. This high performance network switch is ideal for small
networks or for segmenting larger networks into smaller,
connected subnets for improved performance.
All of its ports are capable of 10/100Mbps auto-negotiation, while
the 10/100Mbps auto-sensing ability provides the easiest, most
hassle-free way to integrate older 10Base-T network devices.
This switch delivers a dedicated 10 or 100Mbps connection to
every attached client with no bandwidth congestion issues. It
also supports an auto MDI/MDI-X function - each port can be
used to connect to any other Ethernet device without the need
for crossover cables!
Store-and-forward architecture is used by the switch to filter and
forward data after each packet is received and examined to be
free of errors. All of the ports support full and half-duplex
operation which doubles the network bandwidth and allows the
simultaneous transmission and reception of frames without
causing collisions.
The 'Plug & Play' switch requires no special software to
configure and is fully compliant with the 10Base-T specifications
of the IEEE802.3 Standard and with 100Base-TX specifications
of the IEEE802.3u Standard. Diagnostic LEDs on the front panel
show the operating status of both the switch and the individual
ports.
LED Indicators
LED Status
On
Power
Off
On
Link/Act Flashing
Off
Operation
Power is on
Power is off
The port is connected
The port is transmitting or
receiving data
No connection
