Summary of Contents for Lindy 25020

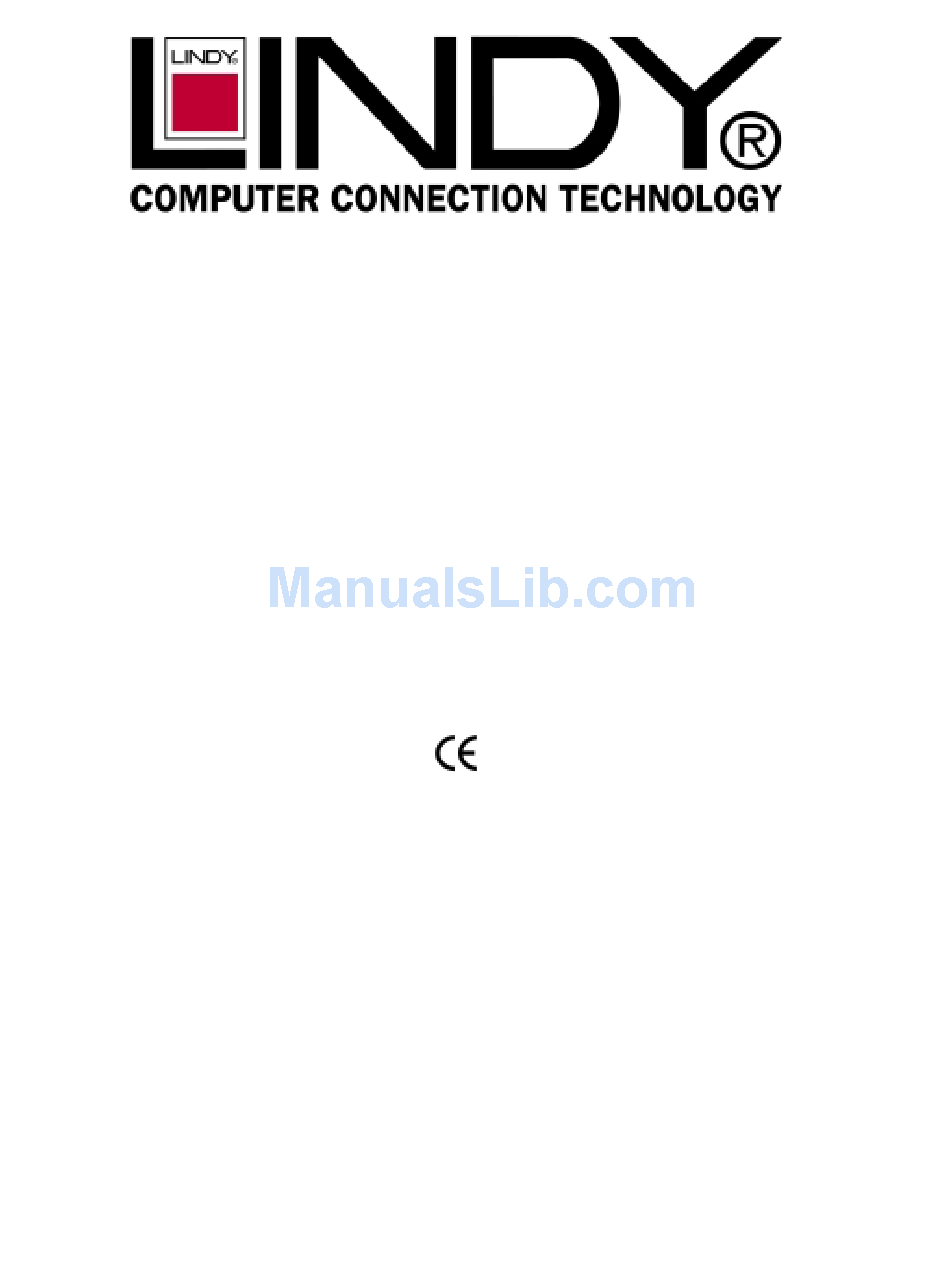

- Page 1 16-Port 10/100Mbps Fast Ethernet Switch 16-Port 10/100Mbps Fast Ethernet Switch with 1 Fiber port USER'S GUIDE LINDY Part No. 25020...
-
Page 2: Table Of Contents
2.4.1 Power Socket... 5 2.4.2 DIP-Switch... 6 Broadcast Storm Control... 6 INSTALLATION... 7 LOCATE THE SWITCH ... 7 RACKMOUNT PLACEMENT ... 7 HELPFUL SUGGESTIONS ... 8 Prior to Installation... 8 Half- and Full-Duplex... 8 Auto-Negotiation... 8 MAC Address Table ... 8 SAMPLE APPLICATION ... -
Page 3: Unpacking Information
UNPACKING INFORMATION Thank you for purchasing this Switch. Before continuing, please check the contents of the product package. This product package should contain the following items: One (1) 16-Port Switch One (1) Power Cord Four (4) Rubber Feet (for desktop placement) One (1) Rackmount Kit (optional) This User’s Guide... -
Page 4: Product Introduction
Each 10/100Mbps TP port provides an Auto-Negotiation function and an Auto-Crossover (Auto-MDI/MDIX) function that senses for the attached device's maximum operating speed and automatically sets the Switch to operate at that speed. Each TP port uses RJ-45 connector that allows network TP cables to be easily attached or removed. Users only need to connect a network device into any TP port and the Switch will do the rest. -
Page 5: Status Leds
2.3.3 Status LEDs This Switch comes with a complete range of LEDs. The table below lists each LED’s name, color and a brief description of its function. One (1) for power On/Off. One (1) per port for Link/Activity. One (1) per port for Full-Duplex/Collision. -
Page 6: Dip-Switch
The Broadcast Storm Control discards broadcast frames when the number of cumulated non-unicast frames is over the threshold, in order to prevent Network Traffic congestion bringing the Network to a halt. In this Switch, each port will drop broadcast packets (Destination MAC ID is ff ff ff ff ff ff) after receiving continuous 64 broadcast packets. The counter will be reset to 0 every 800ms or when receiving any non-broadcast packets. -
Page 7: Installation
LOCATE THE SWITCH Attach the Four (4) rubber feet included in the product package to the bottom of the Switch, one in each corner. Place the Switch on a clean, flat desk or table top close to a power outlet. -
Page 8: Helpful Suggestions
HELPFUL SUGGESTIONS Prior to Installation Before installing this Switch and connecting it to network devices, it is important to plan the network's layout. Things you should consider include: Dedicated Bandwidth: File servers and other high-traffic hardware improve their performance if they have their own dedicated 10Mbps or 100Mbps bandwidth. -
Page 9: Sample Application
Sample Application The optimal application for this Switch is to interconnect file servers with other bandwidth-hungry workgroups, departments, and offices all with dedicated bandwidths. 24-Port Switch 100BASE-T X Workstatio n with 10/100Mbps Fast Ethern et Adap ter 16-Port Switch 100BASE-FX... -
Page 10: Product Specifications
PRODUCT SPECIFICATIONS Models 16-Port Switch Standards IEEE 802.3u: 100BASE-TX IEEE 802.3: 10BASE-T Ports Sixteen (16) 100BASE-TX/10BASE-T Media Support 100BASE-TX: Category 5 TP 10BASE-T: Category 3, 4 or 5 TP Bandwidth 100BASE-TX: 200/100Mbps via Auto-Negotiation 10BASE-T: 20/10Mbps via Auto-Negotiation Forwarding/ 148810 packets/second per port @ 100Mbps, maximum...
