Fixed Mount Scanner
FUZZYSCAN FAMILY
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FuzzyScan and is the answer not in the manual?

Questions and answers

Related Manuals for Cino FuzzyScan

Summary of Contents for Cino FuzzyScan

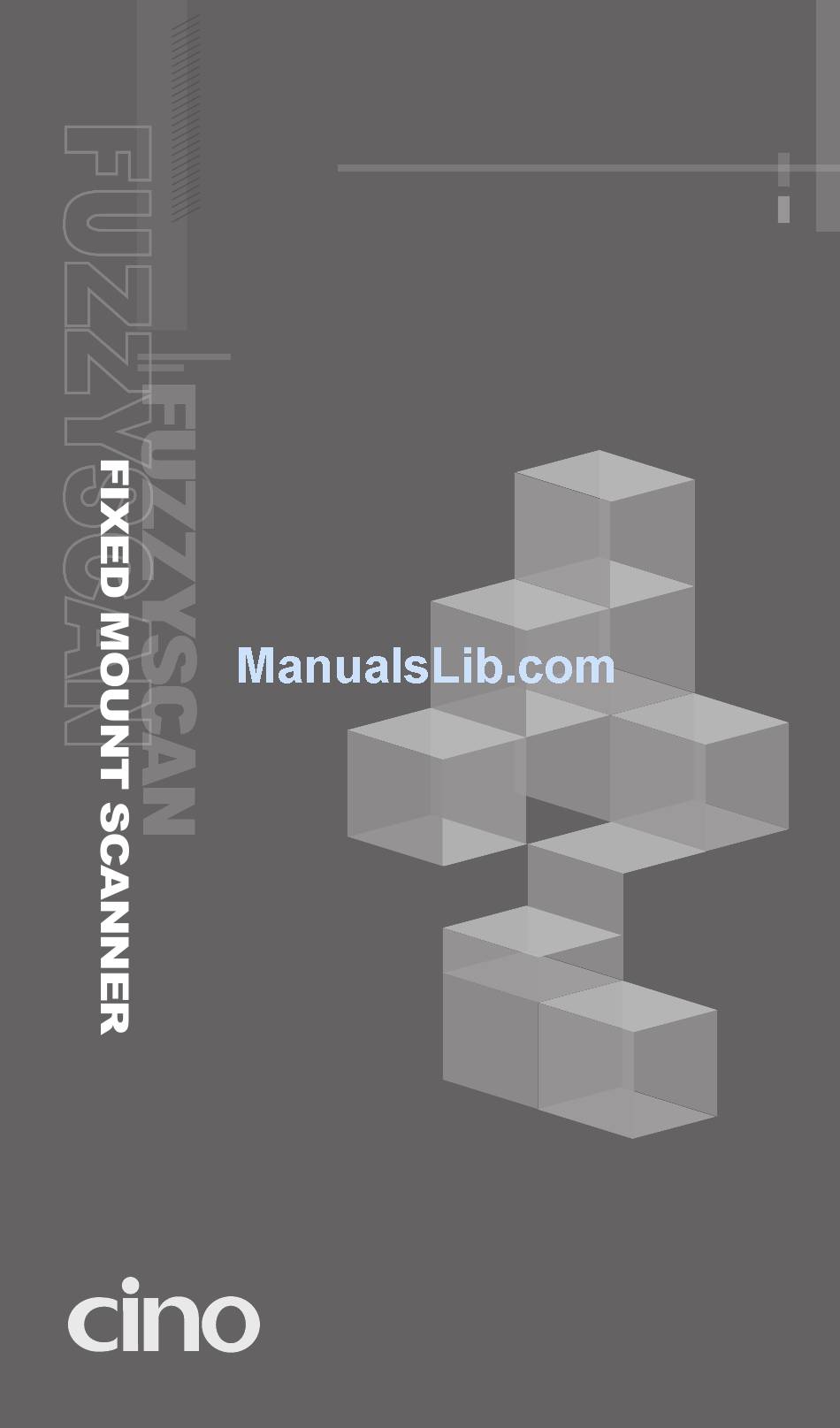

  • Page 1 Fixed Mount Scanner FUZZYSCAN FAMILY Quick Start Guide...

  • Page 2: Getting Familiar With Your Fuzzyscan

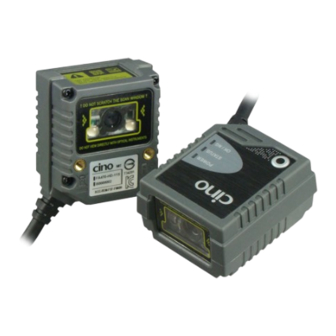

    Getting Familiar with Your FuzzyScan Thank you for choosing Cino FuzzyScan Fixed Mount Scanner. Built with FuzzyScan 3.0 Imaging Technology, durable ultra-compact design and rich functionality, it provides an ideal barcode scanning solution for both industrial and general purpose applications. This document provides a quick reference for installation and operation.
  • Page 3 Connect to Your Host Both standard RS232 and USB interfaces are available in different models. Each model is equipped with corresponding connector to meet various application demands. USB Models (FM4xx-11x/FA4xx-11x) The USB models provide a plug-and-play solution. Both USB HID and USB COM Port Emulation interfaces are available for user’s choice.
  • Page 4 Install Your FuzzyScan Adjust Reading Angle The readability may be impacted by the specular reflection caused by the perpendicular reading angle. To get the most optimal reading performance, it is recommended to install the scanner at an approximate 15° angle to the perpendicular line of the target barcode.
  • Page 5 Intelli Button For normal operation, the Intelli Button of the scanner acts as a manual Trigger Switch. You can press the Intelli Button to scan the corresponding barcode commands to configure your scanner with ease. Moreover, the useful Intelli Button can help you to identify the best mounting position. Please refer to following descriptions for more details.

  • Page 6: Operation Modes

    Use Your FuzzyScan Both FuzzyScan Barcode commands and Serial commands are available to configure your scanner. The FuzzyScan barcode commands are a series of proprietary barcodes which allow you to easily configure the scanner for most applications. Moreover, the FuzzyScan serial commands are ideal for...

  • Page 7: Operation Mode

    Operation Mode area-imaging fixed mount scanner The details of each operation mode supported by FA470 area-imaging fixed mount scanner are listed below. Trigger Mode Under trigger mode, the scanner will turn on the light source to read barcode when it receives an external trigger or a serial trigger ON command. Once the external trigger has been released, or the scanner gets a good read or a serial trigger OFF command, the scanner will stop reading and wait for the next trigger to activate scanning again.
  • Page 8 Operation Mode linear fixed mount scanner The details of each operation mode supported by FM480 fixed mount scanner are listed below. Trigger Mode Under trigger mode, the scanner will turn on the light source to read barcode when it receives an external trigger or a serial trigger ON command. Once the external trigger has been released, or the scanner gets a good read or a serial trigger OFF command, the scanner will stop reading and wait for the next trigger to activate scanning again.

  • Page 9: Host Interface Quick Set

    Host Interface Quick Set RS232 Serial USB HID Standard Mode USB HID Turbo Mode USB Com Port Emulation USB HID Interface Quick Set - Record Suffix - None RETURN ◆ SPACE ENTER - Keyboard Layout - USA ◆ France Germany United Kingdom-UK Canadian French Spain...

  • Page 10: Baud Rate

    Serial Interface Quick Set - Record Suffix - None CR ◆ SPACE CRLF - Baud Rate - 38.4K BPS 1200 BPS 4800 BPS 19.2K BPS 600 BPS 2400 BPS 9600 BPS ◆ 300 BPS - Data Frame - 8, None, 1 ◆ 7, None, 2 8, None, 2 8, Odd, 1...
  • Page 11 USB HID Interface Control Command Parameter Selection Option Code Keyboard Layout USA ◆ Latin America France Italy Germany Netherlands United Kingdom-UK Denmark Canadian French Belgium Spain Switzerland-Germany Sweden/Finland Iceland Portugal Japan Universal Norway Record Suffix None ENTER RETURN ◆ User define character SPACE Preamble None ◆...

  • Page 12: Serial Interface Control

    Serial Interface Control Command Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission ◆ Enable STX/ETX transmission Record Suffix None CR ◆ SPACE User define character CRLF Preamble None ◆ 1-15 characters [00-7F], [FIN] Postamble None ◆ 1-15 characters [00-7F], [FIN] Handshaking Protocol None ◆...

  • Page 13: Operation Control

    Operation Control Command Parameter Selection Option Code Redundancy None Level 1 ◆ Level 2 Level 3 Level 4 Level 5 Scan Voting Power On Indicator Disable (LED off) LED steady on ◆ LED flash Buzzer Tone Control Buzzer tone – mute Buzzer tone –...

  • Page 14: Output Control

    Disable symbology ID transmission ◆ Enable prefix CINO symbology ID transmission Enable suffix CINO symbology ID transmission Enable prefix and suffix CINO symbology ID transmission Enable prefix AIM symbology ID transmission Enable suffix AIM symbology ID transmission Enable prefix and suffix AIM symbology ID transmission...

  • Page 15: System Commands

    System Commands PROGRAM Master Default (Enter Programming Mode) System Information Save User Default (Exit Programming Mode) PowerTool Host Link Factory Default User Default Option Codes FIN (Finish) END (Exit)
  • Page 16 P/N: YMAUB70010010R0 Disclaimer Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this publication.
