Cino FuzzyScan Quick Start Manual

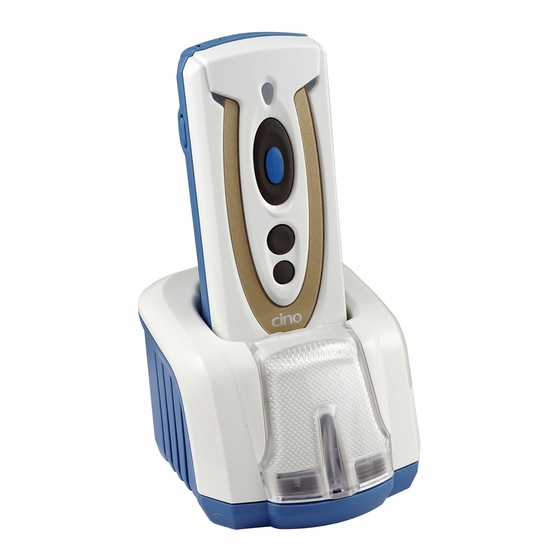

Cordless bluetooth pocket scanner
Hide thumbs Also See for FuzzyScan:

Advertisement

Table of Contents

See also: Reference Manual , Quick Start Manual
Bluetooth Pocket Scanner
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FuzzyScan and is the answer not in the manual?

Questions and answers

Related Manuals for Cino FuzzyScan

Summary of Contents for Cino FuzzyScan

  • Page 1 Bluetooth Pocket Scanner Quick Start Guide...

  • Page 2: Getting Familiar With Your Fuzzyscan

    Getting Familiar with Your FuzzyScan Thank you for choosing Cino FuzzyScan Bluetooth Pocket Image Scanner. Powered by the combination of cutting-edge FuzzyScan Imaging Technology and Bluetooth wireless technology, it not only provides outstanding reading performance, but also delivers the convenience and freedom of mobility. It’s ideal for a broad range of applications to unleash your productivity with ease.

  • Page 3: Preparations Before Using

    Preparations before Using Install the Battery Take off the battery cover from the scanner by removing two blue tapes. Ensure the battery contacts of the battery pack are facing the charging contacts inside the battery cavity. Then click the battery pack into the battery cavity carefully.

  • Page 4: Decide Your Radio Link Mode

    Decide Your Radio Link Mode The FuzzyScan Bluetooth image scanner provides several radio link modes to communicate with most host devices. When the Bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR mode (peer-to-peer connection) or PICO mode (multiple connections) to provide a plug-and-play cordless migration of your existing non-Bluetooth-enabled devices.

  • Page 5: Use Fuzzyscan In Pair Mode

    The default host interface of smart cradle is preset to USB HID. If you want to set the host interface to USB COM, you have to install the USB virtual COM driver into your host device before using the scanner. Please visit CINO website to download the driver.

  • Page 6: Use Fuzzyscan In Pico Mode

    Use FuzzyScan in PICO Mode Please choose your desired interface cable, then plug it into the host interface port of the smart cradle and connect it to the host device. RS232 PS/2 Turn on the power of your host device.

  • Page 7: Use Fuzzyscan In Hid Mode

    Use FuzzyScan in HID Mode Power on or wake up the scanner by pressing the Trigger key within radio coverage if the scanner is power-off or in sleep state, and ensure the status indicator of scanner blinks red and green alternatively (in “Uninstall”...

  • Page 8: Use Fuzzyscan In Spp Mode

    Bluetooth drivers. Please consult your professional IT consultant to obtain necessary support if any problem has been encountered during the installation processes. For more detailed information, please visit CINO website.
  • Page 9 Bluetooth drivers. Please consult your professional IT consultant to obtain necessary support if any problem has been encountered during the installation processes. For more detailed information, please visit CINO website.
  • Page 10 Out-of-range Scanning When the radio connection is established between scanner and remote host device, the scanner will transmit each scanned data right after scanning the barcode. However, the default of the scanner is unable to scan any barcode data when it loses the radio connection with the remote host device. If you enable the out-of-range scanning function, the scanner is able to continue scanning barcode data while it is out of radio coverage.

  • Page 11: Batch Scanning (Inventory Mode)

    Batch Scanning (Inventory Mode) Thanks to the specially designed Batch Scanning function, the scanner is capable of storing up to 80,000 (PF/PL) or 100,000 (PA) EAN-13 barcode data. It is an ideal cost-saving solution for inventory applications. Press and hold the Function Key 2 for more than 3 seconds to enter Batch Scanning, by which 3 beeps will be heard and the status indicator of the scanner will blink green at regular interval during batch scanning In this mode, all scanned barcode data will be stored into the memory storage.
  • Page 12 There are three ways to output the stored barcode data and quantity information. The preset output format is to transmit stored barcode data as many times as the quantity indicated. But you still can set the scanner to outpt the stored barcode data together with quantity information in two fields, and a prest delimter “,“...

  • Page 13: Host Interface Quick Set

    Link Mode Quick Set PAIR Mode PICO Mode UNINSTALL SPP Master Mode SPP Slave Mode HID Mode HID Legacy Mode HID Mode with Passkey Host Interface Quick Set (Smart Cradle only) USB HID PS/2 (DOS/V) KBW Standard Mode ◆ Standard Mode RS232 Serial USB HID Turbo Mode PS/2 (DOS/V) KBW...

  • Page 14: System Commands

    System Commands System Information Paging Master Default PowerTool Host Link Sleep Save Configuration Factory Default Power Off Clone Option Codes FIN (Finish) END (Exit)

  • Page 15: Status Indicator

    Indications Scanner Indication Items Link Indicators Beeping Radio connection 1 blue blink per 2.5 sec. Radio disconnection 3 blue blinks per 2 sec. During connection Quick blue blinks Short clicks Radio connection built 1 blue blink per 2.5 sec. 4 beeps in ascending tone Radio connection lost 3 blue blinks per 2 sec.
  • Page 16 P/N: YMAUB30030010R0 Disclaimer Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this publication.
