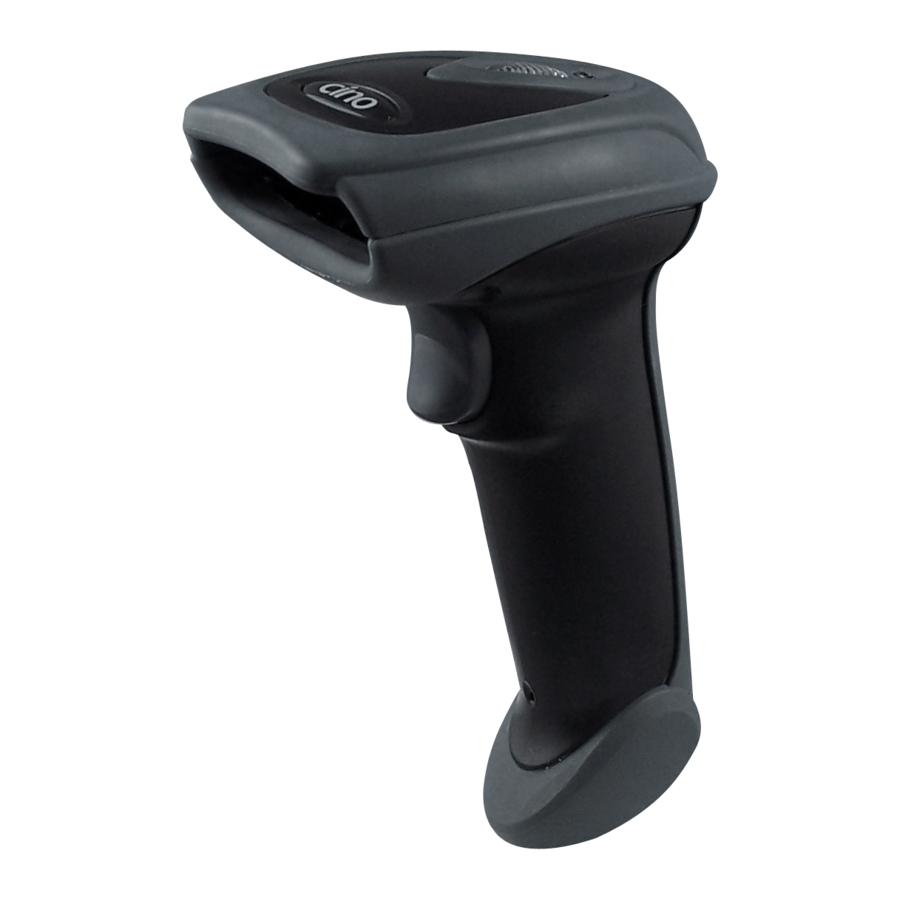

Cino FUZZYSCAN Programming Manual

On-counter scanner
Hide thumbs Also See for FUZZYSCAN:
Table of Contents

Advertisement

Quick Links

International Edition, Rev. A0.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUZZYSCAN and is the answer not in the manual?

Questions and answers

Julie Fletcher
March 14, 2025

how do I alter the FuzzyScan Cino beeper volume

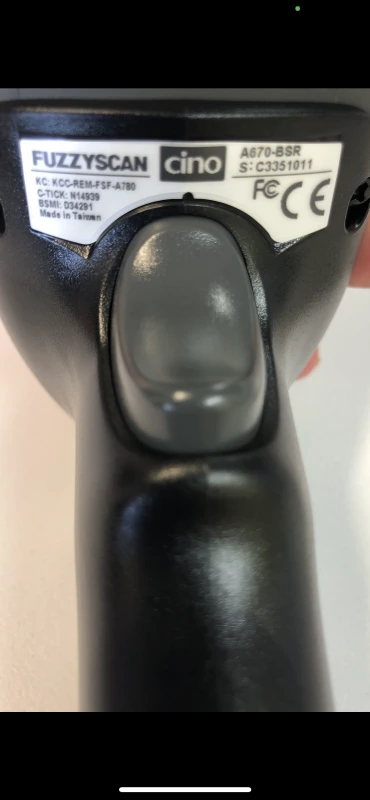

User image 67d3b6fc0f26e
0
1 comments:
Mr. Anderson
March 14, 2025

To change the beeper volume on the Cino FuzzyScan scanner, follow these steps:

1. Enter programming mode by scanning the “PROGRAM” barcode.
2. Select the desired option code for buzzer volume:
- Low: Scan the option code `0`
- Medium: Scan the option code `1`
- High: Scan the option code `2`
3. If needed, scan “FIN” to complete the selection and exit programming mode.

This will adjust the beeper volume to the chosen level.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Cino FUZZYSCAN

Summary of Contents for Cino FUZZYSCAN

  • Page 1 International Edition, Rev. A0.9...
  • Page 2 Revision History Rev. No. Released Date Description Rev. A0.9 Nov. 9, 2020  First Release...
  • Page 3 © Copyright PC Worth Int’l Co., Ltd Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this publication.

  • Page 4: Table Of Contents

    Table of Contents CONFIGURING YOUR SCANNER .........................7 Barcode Programming Manual ................................7 Programming Procedures ..................................8 Host Interface Selection ..................................12 Symbology Reading Control ................................13 User Defined Symbol ID ................................13 Symbology ID Transmission ..............................15 Readable Barcode Setting ................................. 16 Code 39/Code 32 Setting ................................
  • Page 5 GS1 DataBar Setting.................................. 36 Composite Codes, Codablock F, PDF417/MicroPDF417 Setting ....................37 Code 16K & Code 49 Setting ..............................38 QR Code Setting ..................................39 Data Matrix Setting..................................40 MaxiCode Setting ..................................41 Aztec Code Setting ..................................42 Australian Post, US Planet, US Postnet, British Post,& Japan Post Setting ................43 Netherlands KIX Code, Intelligent Mail,&...
  • Page 6 Presentation Background Lighting & Sensitivity ........................60 Aiming Control, Delay Aiming Time-out Control, Decode Aiming Control .................. 61 Center Alignment, Unique Barcode Reporting ........................... 62 Smart Scene ....................................63 Buzzer Tone & Volume Adjust, Power On & Good Read Indicator Control ................64 1D Code Inverse Reading ................................
  • Page 7 Host Interface Quick Set Commands ..............................92 Operation Mode Quick Set Commands .............................. 93 Option Codes ...................................... 94 System Commands .................................... 95...

  • Page 8: Configuring Your Scanner

    You may scan specific requirements. the desired family code and option code to set FuzzyScan. If Option Code you want to change the programming family for multiple...

  • Page 9: Programming Procedures

    You following table. You can easily find the bold mark in the need not re-program the FuzzyScan if you want to keep the programming menu, and refer to their flowcharts for details. existing configurations in the next power on.
  • Page 10 Flash Memory ASIC or non-volatile memory, then issue the completion beeping. then issue the completion beeping. Please note that the FuzzyScan will take 3-4 seconds to store parameters in internal Flash Memory ASIC or non-volatile memory after you scan the “END”. Please don’t turn off the power before the completion beeping.
  • Page 11 Configuring Your Scanner Multiple scans selection Single scan selection Scan Scan “PROGRAM” Enter programming mode. “PROGRAM” Enter programming mode. Select one of desired Select one of desired Scan programming families. Scan programming families. One of Family Codes One of Family Codes 1.
  • Page 12 Configuring Your Scanner Cycling scan selection Dual level selection Scan Scan “PROGRAM” Enter programming mode. “PROGRAM” Enter programming mode. Select one of desired Select one of desired Scan Scan programming families. programming families. One of Family Codes One of Family Codes Cycling select one or Select several option codes (1st) Scan...

  • Page 13: Host Interface Selection

    Configuring Your Scanner Host Interface Selection PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code IBM PS/2, 25-30 series keyboard wedge interface Host Interface Selection Standard/TTL RS-232 peer-to-peer serial USB Com Port Emulation PS/2 (DOS/V) direct link (keyboard replacement) PS/2 (DOS/V) keyboard wedge turbo mode PS/2 (DOS/V) keyboard wedge standard mode USB HID standard mode◄...

  • Page 14: Symbology Reading Control

    Configuring Your Scanner Symbology Reading Control User Defined Symbol ID PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Code 128 (default=B) (1 character) Symbol ID : 1 character GS1-128 (default=C) (1 character) UPC-A (default=A) (1 character) EAN-13 (default=F) (1 character) Codabar/NW-7 (default=D)
  • Page 15 Configuring Your Scanner Symbology Reading Control User Defined Symbol ID (continued)  PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Aztec Code (default=e) (1 character) Symbol ID : 1 character Chinese Sensible (default=f) (1 character) Australian Post (default=g) (1 character) British Post (default=h) (1 character)

  • Page 16: Symbology Id Transmission

    Symbology ID Transmission Enable prefix CINO symbology ID transmission Enable suffix CINO symbology ID transmission Enable both prefix and suffix CINO symbology ID transmission Enable prefix AIM symbology ID transmission Enable suffix AIM symbology ID transmission Enable both prefix and suffix AIM symbology ID transmission...

  • Page 17: Readable Barcode Setting

    Interleaved 2 of 5 * Remember to scan “FIN” to terminate China Postal Code Germany Postal Code this selection. But if you select the Code 93 * “Auto”, FuzzyScan will terminate this Code 11 selection automatically. MSI/Plessey UK/Plessey Telepen GS1 DataBar (RSS-14) *...
  • Page 18 Configuring Your Scanner Symbology Reading Control Readable Barcode Setting (continued)  PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Australian Post Readable Symbology Setting British Post Intelligent Mail barcode Japanese Post KIX Post Planet Code Postnet  If your application is known, you may select those known symbologies only to increase the reading speed and decrease the possibility of reading error. Furthermore, to add the “Symbology ID”...

  • Page 19: Code 39/Code 32 Setting

    Trioptic Code 39 Setting Enable Trioptic Code 39 Default (01)◄ Code 39 Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ Code 39 Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 20: Code 39 Setting

    Configuring Your Scanner Symbology Reading Control Code 39 Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Level 0 Code 39 Security Level Level 1 Level 2◄ Level 3   Code 39 Security Level The scanner offers four levels of decode security for Code39 barcodes: Level 0: If you are experiencing misread of poorly-printed or serious out-of-spec.

  • Page 21: Codabar/Nw-7 Setting

    Weight Modulus 11 Runes (Modulus 10/weight 2) Default (04)◄ Codabar Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ Codabar Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 22: Upc-A & Upc-E Setting

    Configuring Your Scanner Symbology Reading Control UPC-A & UPC-E Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable UPC-A UPC Family Setting Enable UPC-A◄ Disable UPC-E Enable UPC-E◄ Disable UPC-E expansion◄ Enable UPC-E expansion Disable UPC standardization◄ Enable UPC standardization Disable UPC numeric system Enable UPC numeric system◄...
  • Page 23 Configuring Your Scanner Symbology Reading Control UPC-A & UPC-E Setting (continued)  PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Select UPC without supplement digits◄ UPC Supplement Setting Select UPC with only 2 supplement digits Select UPC with only 5 supplement digits Select UPC with 2/5 supplement digits Disable force supplement digits output◄...
  • Page 24 Configuring Your Scanner UPC/EAN Security Level The scanner offers three levels of decode security for UPC/EAN barcodes: Level 0: If you are experiencing misread of poorly-printed or out-of-spec. barcodes, especially in characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this security level may significantly impair the decoding ability of the scanner.

  • Page 25: Ean Setting

    Configuring Your Scanner Symbology Reading Control EAN Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable EAN-13 EAN Setting Enable EAN-13◄ Disable EAN-8 Enable EAN-8◄ Disable EAN-8 expansion◄ Enable EAN-8 expansion Disable EAN-13 check digit transmission Enable EAN-13 check digit transmission◄ Disable EAN-8 check digit transmission Enable EAN-8 check digit transmission◄...
  • Page 26 Configuring Your Scanner Symbology Reading Control EAN Setting (continued)  PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code None Supplement Scan Voting Level 1 Level 2 Level 3◄ Level 4 Level 5 Level 6 Level 7 Level 8 Level 9 Level 10 Level 11 Level 12...
  • Page 27 Configuring Your Scanner Symbology Reading Control EAN Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Level 0 UPC/EAN Security Level Level 1◄ Level 2 Only available for UPC-A & EAN-13 Disable all specific prefix supplement digital output◄ EAN Supplement Control Enable all specific prefix supplement digital output Enable 491 Supplement Digit Output Enable 978/979 Supplement Digit Output...

  • Page 28: Ucc Coupon Extended Code Setting

    Configuring Your Scanner Symbology Reading Control UCC Coupon Extended Code Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable UCC Coupon Extended Code◄ UCC Coupon Extended Code Enable UCC Coupon Extended Code  UCC Coupon Extended Code When UCC coupon extended code function is enabled, scanner decodes UPC-A barcodes starting with digit “5”, EAN-13 barcodes starting with digit “99” and GS1-128 Coupon Codes.

  • Page 29: Iata & Interleaved 2 Of 5 Setting

    Configuring Your Scanner Symbology Reading Control IATA & Interleaved 2 of 5 Setting F_DEFAULT PROGRAM Family Code Selection Parameter Selection Option Code Disable IATA◄ IATA Setting Enable IATA Select 15-digit fixed length IATA checking◄ Select variable length IATA Disable check digit verification◄ Enable check digit automatic verification Enable S/N checking digit verification only Enable CPN checking digit verification only...

  • Page 30: Code 25 Family Setting

    Enable check digit transmission  Default (04)◄ Code 25 Family Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ Code 25 Family Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 31: Code 11 & Code 93 Setting

    Disable check digit transmission◄ Enable check digit transmission Default (04)◄ Code 11 Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ Code 11 Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 32: Msi/Plessey Setting

    Disable check digit transmission◄ Enable check digit transmission Default (04)◄ MSI/Plessey Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ MSI/Plessey Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 33: Code 128 Setting

    ISBT Concatenation On – Check ISBT table ISBT Concatenation Auto Default (01)◄ Code 128 Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ Code 128 Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix;...

  • Page 34: Gs1-128 Setting

    GS1-128 Setting Enable GS1-128◄ Default (01)◄ GS1-128 Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (98)◄ GS1-128 Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate...

  • Page 35: Uk/Plessey Setting

    Disable check digit transmission◄ Enable check digit transmission Default (04)◄ UK/Plessey Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix, and then FuzzyScan will terminate this selection automatically. Default (98)◄ UK/Plessey Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

  • Page 36: Telepen Setting

    Disable check digit transmission◄ Enable check digit transmission Default (04)◄ Telepen Min. Length 01-Maximum (2 digits) Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically. Default (98)◄ Telepen Max. Length 98-Minimum (2 digits) Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically.

  • Page 37: Gs1 Databar Setting

    Default (04)◄ GS1 DataBar Min. Length 01-Maximum (2 digits) Only available for GS1 DataBar Expanded Scan 2 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (74)◄ GS1 DataBar Max. Length 74-Minimum (2 digits) Only available for GS1 DataBar Expanded.

  • Page 38: Composite Codes, Codablock F, Pdf417/Micropdf417 Setting

    Configuring Your Scanner Symbology Reading Control Composite Codes, Codablock F, PROGRAM PDF417/MicroPDF417 Setting F_DEFAULT Family Code Selection Parameter Selection Option Code Disable composite codes◄ Composite Codes Setting Enable composite codes UPC Composite Mode: UPC never linked◄ UPC Composite Mode: UPC always linked If UPC Composite Mode: UPC never linked is selected, UPC barcodes are transmitted whether MicroPDF417 symbol is detected or not.

  • Page 39: Code 16K & Code 49 Setting

    Code 16K Setting Enable Code 16K Default (01)◄ Code 16K Min. Length 01-Maximum (3 digits) Scan 3 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (160)◄ Code 16K Max. Length 160-Minimum (3 digits) Scan 3 digits from the option code chart in Appendix;...

  • Page 40: Qr Code Setting

    Auto detect QR Code Mirror Images◄ Default (01)◄ QR Code Min. Length 01-Maximum (4 digits) Scan 4 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (7089)◄ QR Code Max. Length 7089-Minimum (4 digits) Scan 4 digits from the option code chart in Appendix;...

  • Page 41: Data Matrix Setting

    Auto detect Data Matrix Mirror Images◄ Default (01)◄ Data Matrix Min. Length 01-Maximum (4 digits) Scan 4 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (3116)◄ Data Matrix Max. Length 3116-Minimum (4 digits) Scan 4 digits from the option code chart in Appendix;...

  • Page 42: Maxicode Setting

    MaxiCode Setting Enable MaxiCode Default (01)◄ MaxiCode Min. Length 01-Maximum (3 digits) Scan 3 digits from the option code chart in Appendix, then FuzzyScan will terminate this selection automatically. Default (150)◄ MaxiCode Max. Length 150-Minimum (3 digits) Scan 3 digits from the option code chart in Appendix, then FuzzyScan will terminate...

  • Page 43: Aztec Code Setting

    Aztec Code Setting Enable Aztec Code◄ Default (01)◄ Aztec Code Min. Length 01-Maximum (4 digits) Scan 4 digits from the option code chart in Appendix; then FuzzyScan will terminate this selection automatically. Default (3832)◄ Aztec Code Max. Length 3832-Minimum (4 digits) Scan 4 digits from the option code chart in Appendix;...

  • Page 44: Australian Post, Us Planet, Us Postnet, British Post,& Japan Post Setting

    Configuring Your Scanner Symbology Reading Control Australian Post, US Planet, US Postnet, PROGRAM F_DEFAULT British Post,& Japan Post Setting Family Code Selection Parameter Selection Option Code Disable Australian Post◄ Australian Post Setting Enable Australian Post Raw format Output◄ Numeric Encoding Output (N Encoding Table) Alphanumeric Encoding Output (C Encoding Table) Auto-discriminate Output (Combination C &...

  • Page 45: Netherlands Kix Code, Intelligent Mail,& Korea Post Code Setting

    Configuring Your Scanner Symbology Reading Control Netherlands KIX Code, PROGRAM F_DEFAULT Intelligent Mail,& Korea Post Code Setting Family Code Selection Parameter Selection Option Code Disable Netherlands KIX Code◄ Netherlands KIX Code Setting Enable Netherlands KIX Code Disable Intelligent Mail◄ Intelligent Mail Setting Enable Intelligent Mail (USPS 4CB/One Code) Disable◄...

  • Page 46: Keyboard Interface Control

    Configuring Your Scanner Keyboard Interface Control Keyboard Layout (Language) Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code USA (QWERTY)◄ Keyboard Layout France (AZERTY) Germany (QWERTZ) United Kingdom - UK (QWERTY) Canadian French (QWERTY) Spain (Spanish, QWERTY) Sweden/Finland (QWERTY) Portugal (QWERTY) Norway (QWERTY) Spain(Latin America, QWERTY)

  • Page 47: Record Suffix, Preamble, Postamble, Fnc1 Symbol Character Transmission

    Configuring Your Scanner Keyboard Interface Control Record Suffix, Preamble, Postamble, PROGRAM F_DEFAULT FNC1 Symbol Character Transmission Family Code Selection Parameter Selection Option Code None Record Suffix RETURN◄ SPACE ENTER (Numeric Key Pad) User defined character (1 character) 5, (00-7F) None◄ Preamble 1-15 characters [00-7F], [FIN]...

  • Page 48: Caps Lock & Caps Lock Release Control

     Please check the actual Caps Lock state in use while software application is running. If the Caps Lock state is off, select “Caps Lock Off” state, and then FuzzyScan will perform normal data transmission.

  • Page 49: Delay Setting

     Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.  Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data transmission speed is too fast, characters may be skipped;...

  • Page 50: Function Key &Key Pad Emulation, Upper/Lower Case Setting, Dollar Sign Control

    Configuring Your Scanner Keyboard Interface Control Function Key &Key Pad Emulation, PROGRAM Upper/Lower Case Setting, Dollar Sign Control F_DEFAULT Family Code Selection Parameter Selection Option Code Enable Keyboard Function Code Table 1 Output◄ Function Key Emulation Enable Keyboard Function Code Table 2 Output (Ctrl-Output) Enable Keyboard Function Code Table 3 Output Refer to Appendix –...

  • Page 51: Code Page: Barcode Encoding Format, Keyboard Output

    Configuring Your Scanner Keyboard Interface Control Code Page: Barcode Encoding Format, PROGRAM F_DEFAULT Keyboard Output Family Code Selection Parameter Selection Option Code UTF8 Barcode Encoding Format Codepage 950 Codepage 949 Codepage 936 Codepage 932 Codepage 874 WIN1250 WIN1251 WIN1252◄ WIN1253 WIN1254 WIN1255 WIN1256...
  • Page 52 Configuring Your Scanner ISO 8859-11 Thai ISO 8859-13 Latin 7, Baltic ISO 8859-14 Latin 8, Celtic ISO 8859-15 Latin 9 ISO 8859-16 Latin 10, South-Eastern European Linux Unicode Output Keyboard Output MAC Unicode Output WIN Notepad Unicode Output WIN Wordpad Unicode Output Codepage 950 Output Codepage 949 Output Codepage 936 Output...
  • Page 53 Configuring Your Scanner WIN1258 Output  Corresponding Languages: Please see Appendix below, “Code Page - Table of Corresponding Languages”.  Barcode Encoding Format: 2D barcodes can be encoded using different code pages. To properly decode the data of a 2D barcode, the scanner must first be set to the corresponding code page of such data.

  • Page 54: Serial Interface Control

    Configuring Your Scanner Serial Interface Control STX/ETX Control, Record Suffix, Preamble, PROGRAM Postamble, FNC1 Symbol Char. Transmission F_DEFAULT  Family Code Selection Parameter Selection Option Code Disable STX/ETX transmission◄ STX/ETX Control Enable STX/ETX transmission STX/ETX are two characters used to indicate the starting and ending of the total data frame transmitted via serial interface.

  • Page 55: Delay Setting

     Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.  Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data transmission speed is too fast, characters may be skipped;...

  • Page 56: Protocol, Ack/Nak Setting

     USB COM doesn’t support RTS/CTS handshaking protocol.  When the ACK/NAK Software Handshaking option is selected, the FuzzyScan waits for an ACK (acknowledge) or NAK (not acknowledge) from the host computer after each data transmission. If the NAK is received, FuzzyScan will re-send the data until receiving ACK.’...

  • Page 57: Response Time-Out Setting, Baud Rate, Data Frame

     When the RTS/CTS Hardware Handshaking option is selected, the RTS (request to send) and CTS (clear to send) signals will be issued before normal data communication. This option is very helpful to ensure the reliability of data communication.  The Serial Response Time-out is a pre-defined delay time for FuzzyScan to wait for handshaking, acknowledgment or non-acknowledgment from the host computer...

  • Page 58: Code Page: Barcode Encoding Format, Serial Port Output

    Configuring Your Scanner Serial Interface Control Code Page: Barcode Encoding Format, PROGRAM F_DEFAULT Serial Port Output Family Code Selection Parameter Selection Option Code Barcode Encoding Format UTF8 Code page 950 Code page 949 Code page 936 Code page 932 Code page 874 WIN1250 WIN1251 WIN1252◄...
  • Page 59 Configuring Your Scanner ISO 8859-16 Latin 10, South-Eastern European Serial Port Output Raw Data◄ Unicode (Big Endian) Unicode (Little Endian) UTF8 CP950 Output (Big Endian) CP949 Output (Big Endian) CP936 Output (Big Endian) CP932 Output (Big Endian) CP874 Output WIN1250 Output WIN1251 Output WIN1252 Output WIN1253 Output...

  • Page 60: Operation Mode, Illumination Control

    Configuring Your Scanner Operation Control Operation Mode, Illumination Control PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Trigger mode Operation Mode Presentation mode◄ Force mode Multiple Read Mode Disable Illumination Control Enable◄  Trigger Mode (External Triggering): The scanner begins its scan session upon a pressed trigger button or receiving a Trigger On serial command. The light source of the scanner keeps on before scanning the barcode.

  • Page 61: Presentation Background Lighting & Sensitivity

    Configuring Your Scanner Operation Control Presentation Background Lighting & Sensitivity PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Presentation LEDs Off LEDs On◄ Background Lighting Level 1 Presentation Sensitivity Level 2 Level 3 Level 4 Level 5◄ Level 6 Level 7 ...

  • Page 62: Aiming Control, Delay Aiming Time-Out Control, Decode Aiming Control

    Configuring Your Scanner Operation Control Aiming Control, Delay Aiming Time-out Control, PROGRAM Decode Aiming Control F_DEFAULT Family Code Selection Parameter Selection Option Code Regular Aiming Aiming Control Intelligent Aiming◄ Delay Aiming Control 200 ms Delay Aiming Time-out Control 400 ms◄ 800 ms 1 sec 1.5 sec.

  • Page 63: Center Alignment, Unique Barcode Reporting

    Configuring Your Scanner Operation Control Center Alignment, Unique Barcode Reporting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable in Hand-Held Mode Center Alignment Enable in Hand-Held Mode◄ Disable in Hand-Frees Mode◄ Enable in Hand-Free Mode Disable◄ Unique Barcode Reporting Enable ...

  • Page 64: Smart Scene

    Configuring Your Scanner Operation Control Smart Scene PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Scene 1◄ Smart Scene Scene 2 Scene 3 Scene 4 Scene 5 Scene 6 Scene 7  Smart Scene optimizes the scanner’s motion tolerance, scanning speed and scanning sensitivity in different environments. Scene 1: This is the default setting.

  • Page 65: Buzzer Tone & Volume Adjust, Power On & Good Read Indicator Control

    Configuring Your Scanner Operation Control Buzzer Tone & Volume Adjust, PROGRAM Power On & Good Read Indicator Control F_DEFAULT Family Code Selection Parameter Selection Option Code Buzzer tone – mute Buzzer Tone Adjust Buzzer tone – low (Frequency 1.20 kHz) Buzzer tone –...

  • Page 66: 1D Code Inverse Reading

    Configuring Your Scanner Operation Control 1D Code Inverse Reading PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable◄ 1D Barcode Inverse Reading Enable  With 1D Barcode Inverse Reading enabled, besides traditional 1D barcode with darker lines over lighter background, the scanner can also read inversed 1D barcode consist of lighter lines over darker background.

  • Page 67: Reread Delay, Good Read Delay Control, & Good Read Duration

    Extremely long Extremely short  The Reread Delay (Double Scan Verification) is designed to inhibit FuzzyScan from reading the same barcode twice in pre-defined short duration. Force Verification will not allow reading of the same barcode twice.  This Good Read Delay is the minimum amount of time before the scanner can read another barcode.

  • Page 68: Light Source On Time, Hands-Free Time-Out, Good Read Duration

    Configuring Your Scanner Operation Control Light Source On Time, Hands-free Time-out, PROGRAM F_DEFAULT  Good Read Duration Family Code Selection Parameter Selection Option Code Short◄ Light Source On Time Medium Long Extremely long Short◄ Hands-free Time-out Medium Long Extremely long Disable ...

  • Page 69: Ok/Ng Beeping Control & Ng Message Output

    Configuring Your Scanner Operation Control OK/NG Beeping Control & NG Message Output PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code Disable OK and NG beep OK/NG Beeping Control Enable OK and NG beep Enable OK beep while disable NG beep◄ Enable NG beep while disable OK beep None◄...

  • Page 70: Operation Control

     [Cino ID Hex value] Length: 2 byte Please find Cino ID hex value from Symbology ID Tablein appendix. Locate the Hex value for the symbology and scan the 2 digit hex values from the Option Code. Note: 99 is the universal number, indicating all symbologies.
  • Page 71 Configuring Your Scanner [Code length] Length: 4 byte Specify what length of data output will be acceptable for this symbology. When you calculate the length, you must consider the whole data string which includes the programmed Preamble, Postamble, Scanned Data Length, Prefix/Suffix Symbol ID or AIM ID. Scan the four digit data length from the Option Code. Note: 40 characters is entered as 0040;...
  • Page 72 Configuring Your Scanner You would set up the Batch Reading rule with the following command line: [PROGRAM] [Batch Reading] [0301999941FF07999942FF09999943FF] [FIN] [END] The breakdown of the command line is shown below: The number of elements in the overall rule Code identifier of Code 128 9999 Code length that must match for Code 128, 9999 = all lengths Start character match for Code 128, 41h = “A”...
  • Page 73 Configuring Your Scanner The breakdown of the command line is shown below: The number of elements in the overall rule Code identifier of Code 128 0010 Code length that must match for Code 128 A-CODE128 sample length (9) plus Suffix Symbol ID (1) = 10 Start character match for Code 128, 41h = “A”...

  • Page 74: Condensed Datawizard

     Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.  If you have any problem to use DataWizard, please refer to following pages for details, as well as consult your local FuzzyScan vendor or our web site for further assistance.

  • Page 75: Data Formatter Setting

    Configuring Your Scanner Condensed DataWizard Data Formatter Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code 2ndOption Code Disable◄ Formatter Control Select one barcode symbology (2 digits) automatic termination Select all barcode symbologies automatic termination Disable◄ 1st Insertion Enable (2 digits) [1-3 characters], [FIN] position...

  • Page 76: Data Verifier Setting

     All data must conform to the Identified Barcode Symbologies, Identified Data Length, and one to three Identified Characters in the checking position. Otherwise, the FuzzyScan will not transmit the data to the host computers or terminals, but will instead issue 3 long beeps for verification error and skip the scanned data.

  • Page 77: Data Replacer Setting

    Configuring Your Scanner Condensed DataWizard Data Replacer Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code 2ndOption Code Disable◄ Replacer Control Select one barcode symbology (2 digits) automatic termination Select all barcode symbologies automatic termination Disable◄ 1st Replacement Enable (2 digits) [00-7F] position...

  • Page 78: Data Organizer Setting

    Configuring Your Scanner Condensed DataWizard Data Organizer Setting PROGRAM F_DEFAULT Family Code Selection Parameter Selection Option Code 2nd Option Code Disable◄ Organizer Control Select one barcode symbology (2 digits) Automatic termination Select all barcode symbologies Automatic termination Disable◄ 1st Organization Enable (2 digits) 0 (Forward)◄...
  • Page 79 Chinese Sensible Code arrangement. If you scan “00” to select all types, the GS1 DataMatrix FuzzyScan will arrange all incoming data to meet your pre-defined format. If you want to select only one type Postal Code barcode, please select one of the option code listed below.
  • Page 80 6-digit date code, 6-digit serial  Scan “Program” to enter the programming mode. number and 4-digit unit price, you want the FuzzyScan do the  Scan “Verifier Control” and set barcode symbology to following for you without software modification: “48”...
  • Page 81 Configuring Your Scanner [Data Replacer]  Scan “Replacer Control” and set barcode symbology to “48”.  Scan “1st Replacement” and set the identified position to “00”, then replaced character to “41” (Hex Code of A). [Data Organizer]  Scan “Organizer Control” and set barcode symbology to “48”.

  • Page 82: Appendix

    Appendix APPENDIX...

  • Page 83: Symbology Id Table

    Appendix Symbology ID Table Each AIM Code Identifier contains the three-character string ]cm where: ] = Flag Character; c = Code Character; m = Modifier Character 1D Symbology ID Table Cino ID AIM ID Cino ID AIM ID Code Family...
  • Page 84 Appendix 2D Symbology ID Table Cino ID AIM ID Cino ID AIM ID Code Family Primary Format Code Family Primary Format Code Modified Char. Code Modified Char. Value Char. Char. Value Char. Char. QR Code QR Code British Post British Post...

  • Page 85: Keyboard Function Code Table

    Appendix Keyboard Function Code Table ANSI ASCII Key Function 1 Key Function 2 Key Function 3* CTRL MAKE (Left) RESERVED Ctrl + @ CTRL BREAK (Left) CTRL (Left) Ctrl + A ALT MAKE (Left) ALT (Left) Ctrl + B ALT BREAK (Left) SHIFT Ctrl + C CAPS LOCK...
  • Page 86 Appendix ANSI ASCII Key Function 1 Key Function 2 Key Function 3 Ctrl + T WIN MAKE (Left) WIN BREAK (Left) Ctrl + U SHIFT MAKE (Left) INS (Insert) (Edit) Ctrl + V SHIFT BREAK (Left) DEL (Delete) (Edit) Ctrl + W HOME (Edit) Ctrl + X HOME (Edit)

  • Page 87: Code Page - Table Of Corresponding Languages

    Appendix Code Page – Table of Corresponding Languages Description Code Page Description Code Page Albanian Hungarian Arabic 1256 Icelandic Arabic Italian Baltic 1257 Japanese Bulgarian Korean Catalan Latin 1 1252 Croatian Latin 2 1250 Cyrillic 1251 Latin 5 1254 Czech Latin American Danish Latvian...

  • Page 88: Code Page - Unicode Hex Input Setup

    Appendix Code Page – Unicode Hex Input Setup 1. Windows-Setting up the Windows Registry Step 1:Open the Registry Editor. You can do so by typing “regedit” in the “Search Windows” function or in Command Prompt. Step 2:Go to HKEY_CURRENT_USER\Control Panel\Input Method Step 3: Right-click on mouse or press shift + F10 (on keyboard) to add a new String Value (of type “REG_SZ”).
  • Page 89 Appendix Step 4: Name the new String value as “EnableHexNumpad” and set its Value data to “1”. Step 5: Reboot the computer. 2. MAC - Adding Unicode Hex Input in menu bar Step 1: Go to the Apple Menu -> System Preferences -> Keyboard...
  • Page 90 Appendix Step 2: On the Keyboard tab, click on “Input Sources” and check the “Show Input menu in menu bar” box. Step 3: Click the “+” button to add an input source.
  • Page 91 Appendix Step 4:Scroll to and select “Others”. Click on “Unicode Hex Input” (you can also use the Search function to find it). When done, click on the “Add” button. Step 5: Close the Keyboard Preferences menu. Step 6: Change the input selection to Unicode Hex Input in menu bar.

  • Page 92: Ascii Input Shortcut

    Appendix ASCII Input Shortcut To configure the user definable parameters of FuzzyScan via HEX/ASCII Reference Table programming menu, FuzzyScan will ask you to scan your desired ASCII value in HEX form. You have to refer to the “HEX/ASCII Table” for details.

  • Page 93: Host Interface Quick Set Commands

    Appendix Host Interface Quick Set Commands RS232 Serial USB Com Port Emulation USB HID Turbo Mode USB HID Standard Mode◄...

  • Page 94: Operation Mode Quick Set Commands

    Appendix Operation Mode Quick Set Commands Trigger Mode Presentation Mode◄ Multiple Read Mode Force Mode...

  • Page 95: Option Codes

    Appendix Option Codes Abort FIN (Finish) END (Exit)

  • Page 96: System Commands

    Appendix System Commands Save User Default System Information List (SYSLIST) PowerTool Host Link User Default Factory Default  Factory Default: After scanning” Factory Default” command, all parameters will be returned to factory default value.  Master Default: After scanning “Master Default” command, the scanner will remain the pre-set parameters of Host Interface Selection, Keyboard Interface Control (except Record Suffix;...
  • Page 97 Appendix...
