  • Page 2: About This Guide

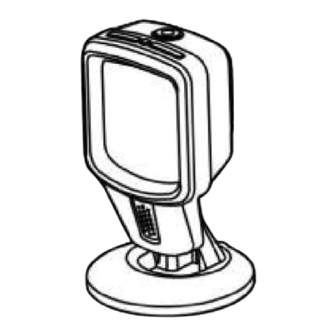

    About This Guide Thank you for choosing Cino FuzzyScan Presentation Scanner. Powered by Cino’s exclusive FuzzyScan imaging technology with rich features, the presentation scanner is built for boosting productivity and improving the customer shopping experience. This Quick Start Guide provides basic instructions on setting up and using your FuzzyScan presentation scanner.

  • Page 3: Getting Started

    Getting Started Front view Power indicator Scan window Speaker Trigger button Status indicators Rear view Cable release hole EAS port (optional) Cable outlet Hanging holes Host interface port Affixing magnet cavities Screw mounting holes...

  • Page 4: Connecting The Interface Cable

    Connecting the Interface Cable Cable Insertion Plug the host interface cable into the host interface port on the rear of the scanner until a click is heard. Cable Removal Insert a paper clip into the cable release hole to depress the unlocking tab. While keeping it depressed, remove the cable.

  • Page 5: Desktop Application

    Desktop Application Equipped with a uniquely flexible stand, FuzzyScan presentation scanners provide extra-wide adjustable tilt angles from 90° backwards to 45° forwards, enabling maximum flexibility in scanning positions. 45˚ 90˚ Affixing Magnet Kit (Optional) The optional affixing magnet kit affixes the unit firmly at your desired location, but still allows easy lifting for handheld operation.
  • Page 6 Wall Mounting Application The presentation scanner adapts a mounting kit-free design. You can mount the presentation scanner onto walls or any vertical surface and adjust it to your desired scanning position easily. Its base also allows for flexible cabling for various installation requirements. 33 mm Open wiring 24 mm...

  • Page 7: Usb Keyboard Interface

    Keyboard). When the host interface has been set to USB HID, the presentation scanner works as a generic USB keyboard. For other settings related to USB HID interface, please refer to the “FuzzyScan Barcode Programming Manual”. ( represents the DEFAULT value in each Quick ▲...
  • Page 8 For USB HID interface, the scanner is preset to US keyboard output. You can scan the corresponding command barcode below to select your desired keyboard layout. For more comprehensive multilingual support details, please refer to the “FuzzyScan Barcode Programming Manual”. US ▲ Germany...
  • Page 9 Keyboard Record Suffix Quick Set Scan the corresponding command barcode below to change the record suffix output under USB HID interface. None RETURN ▲ SPACE ENTER...

  • Page 10: Usb Com Port Emulation

    The default host interface of the presentation scanner is USB HID. To change the interface to RS232 Serial, scan the corresponding command barcode to complete your installation. For other settings related to RS232 serial interface, please refer to the “FuzzyScan Barcode Programming Manual” for details. RS232 Serial...
  • Page 11 Serial Interface Record Suffix Quick Set Scan the corresponding command barcode below to change the record suffix output under USB COM and RS232 serial interfaces. None CR ▲ CRLF SPACE...

  • Page 12: Hands-Free Scanning

    The optimal scanning range between the object and the scan window is around 0.5” to 7”. The presentation scanner is preset to the most common application scenarios. However, it can also be configured for a user’s specific requirements. For more details, please refer to the “FuzzyScan Barcode Programming Manual.”...

  • Page 13: Handheld Scanning

    Handheld Scanning To read a specific barcode, pick up the scanner from the table (or magnet-affixed location), then press the trigger button to activate the handheld scanning mode. Hold the trigger and aim the positioning dot at the center of the barcode until a successful reading has occurred. Once the manual triggering process has been completed, the presentation scanner will return automatically to hands-free scanning status after a preset duration.

  • Page 14: System Commands

    Scan the command barcodes below for each of the following commands: Acquire scanner information and firmware version System Information Enable the scanner to work with FuzzyScan PowerTool PowerTool Host Link Restore all parameters to factory default values Factory Defaults Store all current settings...
  • Page 15 Scanner Indications Audio Indications Status Sound Power on 4 rising tone beeps Successful read 1 beep Programming mode ON None Firmware upgrading Short click sounds Visual Indications Status Power Indicator Status Indicator Power on Steady blue 2 red blinks Successful read 1 green blink Programming mode ON Steady red...
