New model as of 1. December 2003
Operator's Manual
Instruction Book
and Parts List
Beginning with Serial Number 180001
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure
to read this book prior to operating or attempting any service or maintenance procedure to
your machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. you must have training in the operation of this machine
before using it. If you or your operator(s) cannot read English, have this manual explained
fully before attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books, write to: American-Lincoln
Part No. 2-86-00315
AMERICAN-LINCOLN

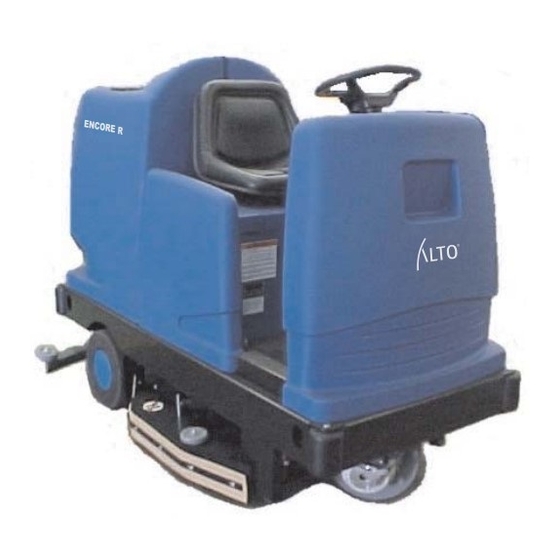

ENCORE R
AMERICAN-LINCOLN
TECHNOLOGY
, 1100 Haskins Road, Bowling Green, Ohio 43402
2003
American-Lincoln
ENCORE R
®
Printed in the
RETURN
ISO 9001
U L
®
#
FILE A2287
USA
1-1
