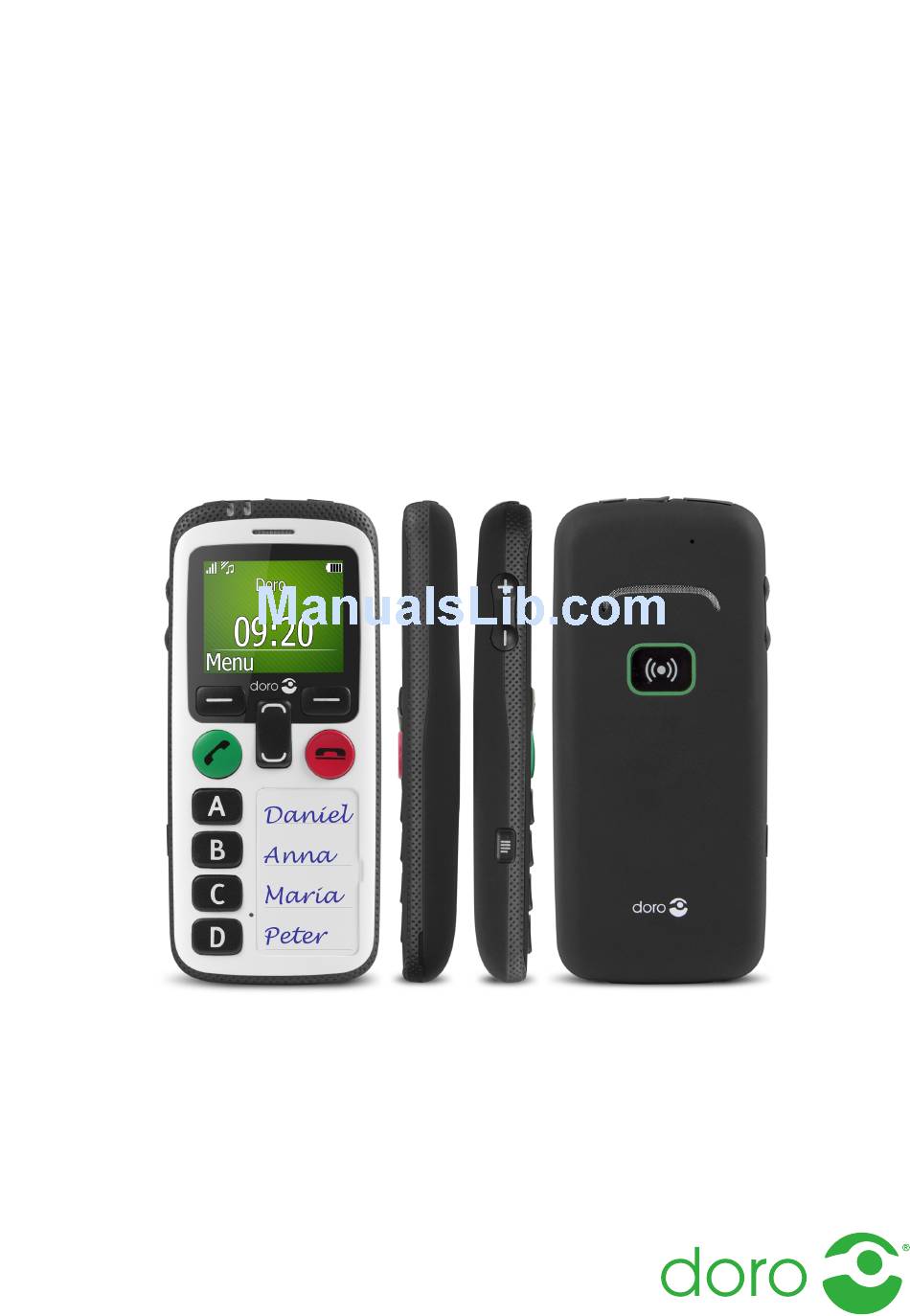

- Page 1 ® Doro Secure 580IUP Installation guide English...
- Page 2 The items supplied with your phone might vary depending on the soft- ware and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Doro deal- er. The supplied accessories provide the best performance with your...
-
Page 3: Table Of Contents
..................5 Hear ................... 6 Handle ..................7 Safety ..................11 Connectivity .................13 ® Doro Experience ................. 16 Create account ................16 Log in.................... 17 Sync. intervals ................17 Account ..................17 Log out ..................17 ® Doro Experience Manager ............18 Assistance....................20... - Page 4 English Areas with explosion risk ............27 Li-ion battery ................27 Protect your hearing ..............27 Emergency calls................28 Vehicles..................28 Care and maintenance ...............28 Warranty....................29 Copyright and other notices..............29 Content copyright ................30 Specifications ..................30 Specific Absorption Rate (SAR) ..........30 Declaration of Conformity ............31...
-
Page 5: Set Up The Phone
Turn off the phone and disconnect the charger before removing the battery cover. Insert the SIM card ® The Doro Secure 580IUP accepts micro SIM card. Use of incompatible SIM cards may dam- age the card or the device, and may corrupt da- ta stored on the card. -
Page 6: Turn The Phone On And Off
English Insert the battery Turn the phone on and off Press and hold 1 to turn the phone on/off. If the inserted SIM card is protected with an PIN code (Personal Identification Number) PIN is displayed. Use the side buttons +/– to enter the PIN code and press OK to confirm or delete with Clear ( upper right corner of keypad). -
Page 7: Enter Text
Repeat until you have 4 contacts (maximum). Note! To edit or delete contact, select Options Edit or Delete. ® Tip: Use Doro Experience Manager to add numbers using a computer, see My device, p.18. ICE (In Case of Emergency) All fields are optional, but the more information provided the better. -
Page 8: My Number
Other info: enter other information (e.g. organ donor, living will, consent to treat). When done, press Save. ® Tip: Use Doro Experience Manager to add ICE information using a computer, see ICE (In Case of Emergency), p.18. My number The phone number assigned to the SIM card is saved as My number if this is allowed by the card. -
Page 9: Phone Settings
English When done, press Save. ® Tip: Use Doro Experience Manager to edit the emergency number using a computer, see My device, p.18. Phone settings Idle display Select what information is shown in standby mode. Press and hold Select Settings Display Idle display. -
Page 10: Hear
• HAC mode for use with hearing aid in T-mode. Press OK to confirm. ® Tip: Use Doro Experience Manager to programme audio setup using a computer, see My device, p.18. Tone setup (ringtone) Select a ringtone with the best tone curve adjustments and frequencies to best fit the requirements. -
Page 11: Handle
English • Ring only for ringtone only. • Vib. only for vibration only. • Vib. and ring for vibration and ringtone. • Vib. then ring to start with vibration and adds ringtone after a short while. • Silent for no sound or vibration, the display light is lit. Press OK to confirm. - Page 12 English Press OK to confirm. ® Tip: Use Doro Experience Manager to set language using a computer, see My device, p.18. Start-up wizard When starting the phone for the first time, you can use the Start-up wiz- ard to set some basic settings.
- Page 13 Auto answer Answer time. Select an option. Press OK to confirm. ® Tip: Use Doro Experience Manager to edit auto answer using a computer, see Auto answer, p.19. Whitelist Select to only accept incoming calls from contacts saved in the number list.
- Page 14 English In order to send any text messages, a message centre number is needed. The number is supplied by your service provider and is usually set on the SIM card. Press and hold Select Settings Messages SMS settings. Select SMS centre Edit.
-
Page 15: Safety
English Select text message vibration alert. Press and hold Press Menu Settings Messages Vibration: • Short (4 seconds) • Long (12 seconds) Press OK to confirm. Note! If Alert type is set to Ring only the phone will not vibrate. Delete Press and hold Select Settings... - Page 16 English WARNING If the SIM card is lost/stolen it is unprotected. • Automatic to start the phone without the PIN code. The phone remembers it automatically, but if the SIM card is moved to an- other phone (lost/stolen) the PIN code needs to be entered when the phone is started.
-
Page 17: Connectivity
English Note! You can save parts of phone numbers. For example, if you save 01234, it allows calls to all numbers starting with 01234. It is always possible to place an SOS call even when fixed dial is activated. When fixed dial is activated you are not allowed to view or manage any phone numbers saved on the SIM card. - Page 18 English Select Settings Connectivity Bluetooth Visibility Note! To prevent other devices from finding your device, select Off when not pairing. Even if you select Off, paired devices can still detect your device. Device name Press and hold Select Settings Connectivity Bluetooth Device name.
- Page 19 English ® Bluetooth headset • Connect to connect. • Rename to change the name of the device. • Delete to delete the device from the list. • Delete all to delete all devices from the list. Press OK to confirm. Bluetooth beacon ®...
-
Page 20: Doro Experience
Doro Experience ® The web-based Doro Experience Manager (www.doroexperience.com) ® enables you to remotely manage Doro Secure 580IUP from anywhere in the world. Note! You need to have Internet access to use most of the features in ® Doro Experience . -
Page 21: Log In
Select Settings Doro Experience This service helps you to han- dle and manage your Doro Experience device. Log in. Use the side buttons +/– to enter your phone number as user name. Use the side buttons +/– to enter your password and press Log in. -
Page 22: Doro Experience Manager
English ® Doro Experience Manager ® Remotely manage the Doro Secure 580IUP with a computer. Log in On a computer: Go to www.doroexperience.com. ® Select Doro Secure 580IUP as device. Enter your user name (phone number) and password. See Create ac- count, p.16. - Page 23 Activation to set as on or off. • Number to enter number for the predefined contacts to be al- ® lowed to make calls to Doro Secure 580IUP, maximum 20. When done, select Save. Tip: See Whitelist, p.9 for more info.
-
Page 24: Assistance
Save password. • If you want to replace the current phone connected to your Doro Ec- ® perience account with a new phone, you need to reset the IMEI number in order to keep the account. Before you log in with your new phone, click Reset IMEI Yes. -
Page 25: Activation
• Off to disable the assistance button. Press OK to confirm. ® Tip: Use Doro Experience Manager to edit Assistance settings using a computer, see Assistance, p.18. Number list Add numbers to the list that is called when the assistance button is... -
Page 26: Activate Text Messages (Sms)
Repeat until you have 5 contacts (maximum). Tip: To edit or delete an existing entry, select it and press Options Edit/Delete. ® Tip: Use Doro Experience Manager to edit Assistance settings using a computer, see Assistance, p.18. Activate text messages (SMS) A text message can be sent to the contacts in the numbers list when the assistance button is pressed. -
Page 27: Position Sms
This function sends a text message with the users position to the recipi- ents saved in the number list when an assistance call occurs. The mes- sage contains date, time, and the positioning information of the Doro ® Secure 580IUP user. -
Page 28: Confirm With "0
• 30 minutes between new search interval. Press OK to confirm. ® Tip: Use Doro Experience Manager to edit Assistance settings using a computer, see Assistance, p.18. Confirm with "0" Enable this function if there is a risk that the assistance call is answered by a voicemail/answering service. -
Page 29: Request Position
Make sure that the remote user is saved in the Number list. Compose a text message with the text *#0# only. ® Send the message to the Doro Secure 580IUP phone number. The replying text messages contains date, time, and the positioning information. -
Page 30: General Information
Select Settings Safety Timer Sound. Select On to enable, or Off to disable. Press OK to confirm. ® Tip: Use Doro Experience Manager to set safety timer information using a computer, see Safety timer, p.19. General information Safety instructions CAUTION The unit and the accessories can contain small parts. -
Page 31: Areas With Explosion Risk
English facilities instructing you to turn off the unit while you are there, you should comply. Hos- pitals and other health care facilities sometimes use equipment that can be sensitive to external radio signals. Implanted medical devices To avoid potential interference, manufacturers of implanted medical devices recom- mend a minimum separation of 15.3 cm between a wireless device and the medical de- vice. -
Page 32: Emergency Calls
English WARNING Excessive exposure to loud sounds can cause hearing damage. Exposure to loud sounds while driving may distract your attention and cause an accident. Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. Emergency calls IMPORTANT! Mobile phones use radio signals, the mobile phone network, the terrestrial network... -
Page 33: Warranty
As a matter of precaution, we recommend disconnecting the charger during a thunderstorm. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if batteries other than DORO original batteries are used. Copyright and other notices ®... -
Page 34: Content Copyright
Doro does not provide a warranty for or take any responsibility for the functionality, con- tent, or end-user support of third-party apps provided with your device. By using an app, you acknowledge that the app is provided as is. -
Page 35: Declaration Of Conformity
English Declaration of Conformity ® Doro hereby declares that Doro Secure 580IUP conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2011/65/EC (RoHS). A copy of the Declaration of Conformity is available at www.doro. - Page 36 Secure 580 (1011) English Version 1.0 0700 ©2014 Doro AB. All rights reserved. www.doro.com REV 12142 — STR 20140611...
