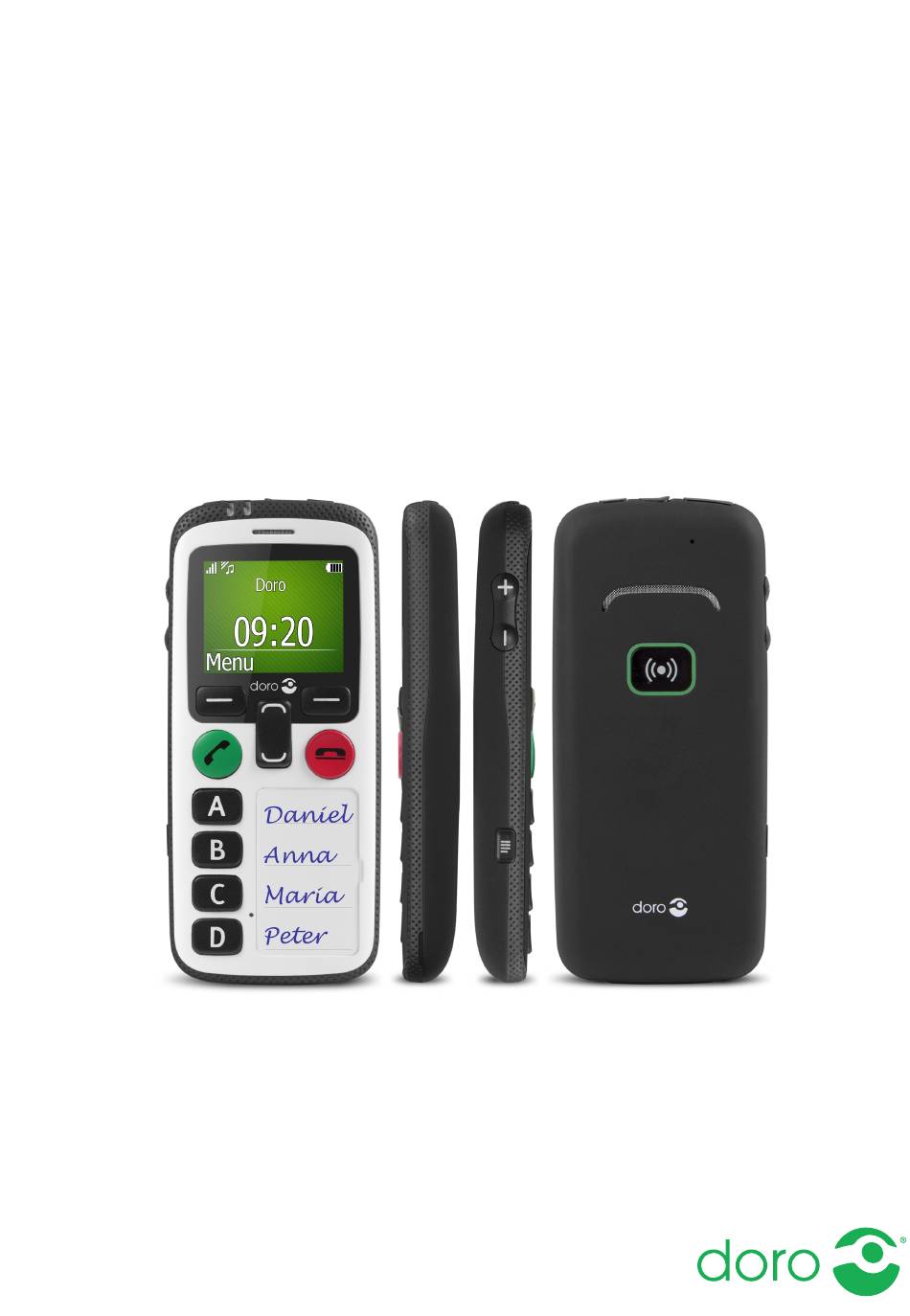

  • Page 1 ® Doro Secure 580IP Installation guide English...
  • Page 2 The items supplied with your phone might vary depending on the soft- ware and accessories available in your region or offered by your service provider. You can obtain additional accessories from your local Doro deal- er. The supplied accessories provide the best performance with your...

  • Page 3: Table Of Contents

    English Contents Set up the phone................... 1 Get started..................... 1 Installation and assembly............. 1 Turn the phone on and off ............2 Navigate the phone ............... 2 Enter text..................3 Phonebook..................... 3 Add number ................... 3 ICE (In Case of Emergency)............3 My number..................
  • Page 4 English Correct disposal of this product ..........22 Correct disposal of batteries in this product ......22 Declaration of Conformity ............22...

  • Page 5: Set Up The Phone

    Turn off the phone and disconnect the charger before removing the battery cover. Insert the SIM card/cards ® The Doro Secure 580IP accepts micro SIM card/cards. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card.

  • Page 6: Turn The Phone On And Off

    English Turn the phone on and off Press and hold 1 to turn the phone on/off. If the inserted SIM card is protected with an PIN code (Personal Identification Number) PIN is displayed. Use the side buttons +/– to enter the PIN code and press OK to confirm or delete with Clear ( upper right corner of keypad).

  • Page 7: Enter Text

    English • To select an item, scroll or highlight the item using and then press OK. Example Press and hold (6 seconds). Select Settings Sound Audio setup. Select an option and press OK. Enter text • Use the side buttons +/– to select a character from the list. Wait a few seconds before entering the next character.

  • Page 8: My Number

    English • Language: enter preferred language. • Insurance: enter insurance provider and policy number. Contacts • Contact 1: enter name and number. If possible, add your relationship. • Contact 2: enter name and number. If possible, add your relationship. • Doctor: enter name and number.

  • Page 9: Phone Settings

    English Phone settings Idle display Select what information is shown in standby mode. Press and hold Select Settings Display Idle display. Select Clock only, Clock & Operator or All info. Press OK to confirm. Themes The themes use different contrasts between text and the background mixing colours for optimised readability.
  • Page 10 English Press and hold Select Settings Sound Audio setup: • Normal for normal hearing in normal conditions. • High for moderate hearing impairment or use in a very noisy environment. • HAC mode for use with hearing aid in T-mode. Press OK to confirm.

  • Page 11: Handle

    English Note! Selected alert type is visible in the status bar. Extra tone Set warning and error tones to alert of low battery power, phone and SIM card errors, etc. Press and hold Select Settings Sound Extra tone Warning or Error. Select On to enable, or Off to disable.
  • Page 12 English If dual SIM, select SIM1 or SIM2. Select one of the following options and press OK to confirm: • Select network to view available network, a list of available net- work operators is displayed (after a short delay). Select desired operator.
  • Page 13 English Use the side buttons +/– to edit the service centre number. Press Clear to delete. Press OK to confirm. Cell broadcast Depending on service provider, it is possible to receive messages on vari- ous topics, such as weather or traffic conditions in a particular region. For available channels and relevant channel settings, contact the service provider.

  • Page 14: Safety

    English Press OK to confirm. Note! If Alert type is set to Ring only the phone will not vibrate. Delete Press and hold Select Settings Messages Delete Delete Inbox?. Press Yes to delete all messages. Auto reply Select to automatically send an auto reply for all received text messages. Press and hold Select Settings Messages...
  • Page 15 English another phone (lost/stolen) the PIN code needs to be entered when the phone is started. Press OK to confirm. Change PIN code (passwords) Press and hold Select Settings Security Passwords. If dual SIM, select SIM1 or SIM2. Select PIN. Enter current PIN code and press OK.

  • Page 16: Connectivity

    English Note! You can save parts of phone numbers. For example, if you save 01234, it allows calls to all numbers starting with 01234. It is always possible to place an SOS call even when fixed dial is activated. When fixed dial is activated you are not allowed to view or manage any phone numbers saved on the SIM card.
  • Page 17 English ® When connecting to another Bluetooth device you need a shared password. Use the side buttons +/– to enter the password and press My devices (new devices) Press and hold Select Settings Connectivity Bluetooth My devices Search new. Select from the list of devices and press Pair to connect My devices (already paired devices) Press and hold Select Settings...

  • Page 18: Safety Timer

    English The phone automatically selects the (service providers) home network if within range. If not within range, use another network, provided that the network operator has an agreement that allows you to do so (this is roam- ing). Contact the service provider for more information. Note! Using data services while roaming can be costly.

  • Page 19: Operating Environment

    English Operating environment Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is prohibited or can cause interference or hazards. Only use the unit in its normal user position. Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit cards or other magnetic media near the unit.

  • Page 20: Li-Ion Battery

    English Li-ion battery This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°...

  • Page 21: Vehicles

    English Vehicles Radio signals can affect electronic systems in motor vehicles (for example, electronic fuel injection, ABS brakes, automatic cruise control, air bag systems) that have been in- correctly installed or are inadequately protected. Contact the manufacturer or its repre- sentative for more information about your vehicle or any additional equipment.

  • Page 22: Care And Maintenance

    English • Run an antivirus program on your device before you launch newly-downloaded ap- plications and files. • Do not edit registry settings or modify the device’s operating system. Care and maintenance Your unit is a technically advanced product and should be treated with the greatest care. Negligence may void the warranty.

  • Page 23: Warranty

    Please note that this is a voluntary manufacturer’s warranty and provides rights in addi- tion to, and does not affect statutory rights of end-users. Batteries are consumables and are not included in any guarantee. This guarantee does not apply if batteries other than DORO original batteries are used. Copyright and other notices ®...

  • Page 24: Content Copyright

    Doro does not provide a warranty for or take any responsibility for the functionality, con- tent, or end-user support of third-party apps provided with your device. By using an app, you acknowledge that the app is provided as is.

  • Page 25: Specific Absorption Rate (Sar)

    English This phone is hearing aid compatible. Hearing aid compatibility is not a guarantee that a specific hearing aid will work with a specific phone. Mobile phones contain radio transmitters that may interfere with hearing aid performance. This phone has been tested for use with hearing aids, for some of the wireless technologies that it uses, but there may be some newer wireless technologies that have not been tested yet for use with hearing aids.
  • Page 26 Declaration of Conformity ® Hereby, Doro AB declares that the radio equipment type Doro Secure 580IP is in com- pliance with Directives: 1999/05/EC or 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: www.doro.
  • Page 27 English...
  • Page 28 Secure 580IP (1031,1041,1051) English Version 4.0 © 2015 Doro AB. All rights reserved. www.doro.com REV 17354 — STR 20141212...
