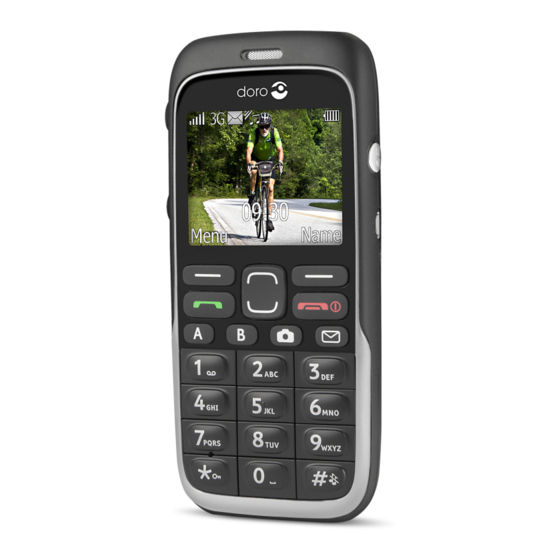

Doro PhoneEasy 520X User Manual

Hide thumbs Also See for PhoneEasy 520X:

Manual (68 pages)

Quick start manual (2 pages)

User manual (72 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the PhoneEasy 520X and is the answer not in the manual?

Questions and answers

Summary of Contents for Doro PhoneEasy 520X

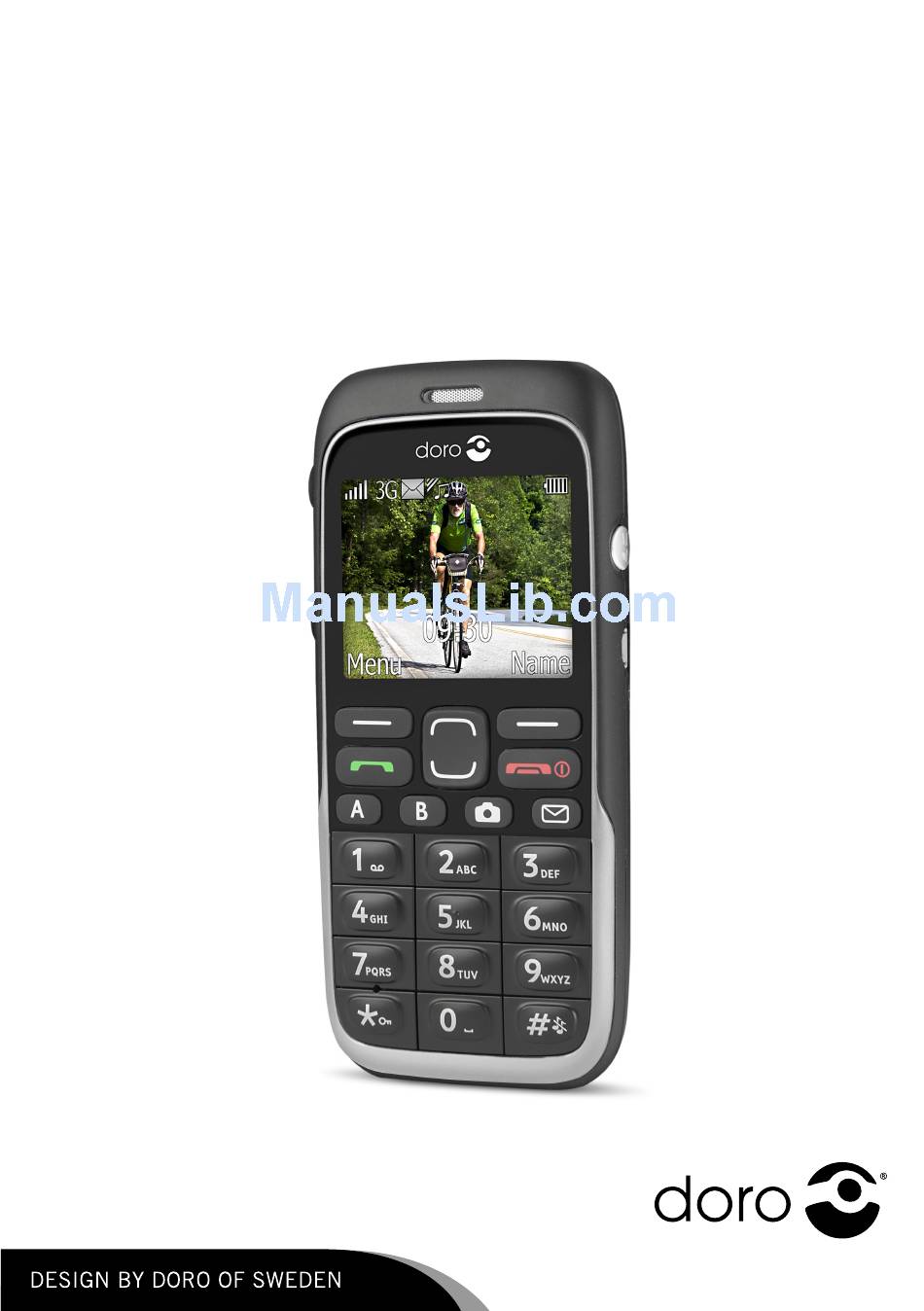

Page 1 Doro PhoneEasy 520X ® English (US)
Page 3 English Volume control 14. Right selection button Headset socket 15. Earpiece Left selection button 16. Flashlight Call button 17. Flashlight button Speed dial 18. Charging socket Voice mail 19. Camera lens Key lock 20. Camera flash Microphone 21. Assistance button Silent/Input method 22.
Page 4: Table Of Contents
English (US) Contents Installation ................1 Install the SIM card, memory card and the battery....1 Charging ..................2 Get to know your phone .............. 3 Assistive functions ............... 3 Turn the phone on and off ............ 3 Navigate the phone .............. 4 Entering text ..............
Page 5 English (US) Camera adjustments.............20 Image viewer................20 Connecting the phone to a computer ..........21 Drag and drop content between phone and a computer ...21 Disconnect the USB cable safely...........21 Settings ..................22 General ................22 Sound .................25 Display................27 Calls ...................28 Messages ................32 Camera ................35 Assistance ...............36 Bluetooth...
Page 6 English (US) Support ..................63 Specifications ................64...
Page 7: Installation
English (US) Installation IMPORTANT! Turn off the phone and disconnect the charger before removing the battery cover. Install the SIM card, memory card and the battery The SIM and memory card holders are located inside the battery compartment. Remove the battery cover and the battery if it is already installed. Unlock the battery cover by turning the screw a quarter of a turn counter clockwise.
Page 8: Charging
English (US) IMPORTANT! Use only compatible memory cards for use with this device. Compatible card type: microSD, microSDHC. Incompatible cards may damage the card itself, the device and corrupt data stored on the card. Depending on the market some phones may have a pre-installed memory card.
Page 9: Get To Know Your Phone
English (US) Get to know your phone Assistive functions The following symbols indicate information in the manual about assistive functions for: Seeing Handling Hearing Safety Turn the phone on and off Press and hold the red button on the phone to turn it on/off. Confirm with Yes to power off.
Page 10: Navigate The Phone
OK. Example: Press Menu Phonebook -New contact- Add. • To perform the example on your Doro PhoneEasy 520X you should ® do the following: Press Menu, scroll to Phonebook and press OK. Select -New contact- and press Add.
Page 11: Entering Text
English (US) Entering text Entering text manually Select character Press a numerical key repeatedly until the desired character is • shown. Wait a few seconds before entering the next character. Special characters Press * for a list of special characters. Select the desired character with and press OK to confirm.
Page 12 English (US) Input mode Press # to change input mode. The icon on the top left of the display indicates the input mode. Sentence case with predictive text UPPER CASE with predictive text lower case with predictive text Sentence case UPPER CASE lower case Numerals...
Page 13: Display Status Symbols
English (US) Display status symbols Signal strength No network coverage Ring only Unread message in Inbox Ring + vibration Alarm active Vibration only Battery level Silent Call divert activated Bluetooth on, visible to Roaming (in other network) others Bluetooth on, invisible to Missed call others Headset connected...
Page 14: Call Functions
English (US) Missed call. Press View to Searching see the missed calls. Emergency call Call on-hold vCard message SOS calls only Volume control Processing, please wait Call functions Make a call Enter the phone number including the area code. Delete with Clear.
Page 15: Volume Control
English (US) Volume control Use the side buttons +/– to adjust the sound volume during a call. The volume level is indicated on the display. If you use a hearing aid or have hearing difficulties when using the telephone in noisy environment, you can customize the phone's audio settings, see Audio setup...
Page 16: Call Information
English (US) To put the current call on hold and answer the incoming call: Press Options Answer. • Tip: Call waiting must be activated, see Call setup, p.30. Call information During a call, the outgoing or incoming phone number and the elapsed call time is displayed.
Page 17: Assistance Button
English (US) Assistance button IMPORTANT! Always inform recipients in the Number list that they are listed as your assistance contacts. CAUTION When an assistance call is activated the phone is pre-set to handsfree/speakerphone mode. Do not hold the device near your ear when the handsfree mode is in use, because the volume may be extremely loud.
Page 18: Phonebook
English (US) Note! Some private security companies can accept automatic calls from their clients. Always contact the security company before using their phone number. IMPORTANT! Information to the receiver of an assistance call, when Confirm with "0" is activated: After receiving the assistance message, each number in the •...
Page 19: Create Ice Contact (In Case Of Emergency)
English (US) Tip: For international calls, always use + before the country code for best operation. Press * twice for the international prefix +. Create ICE contact (In Case of Emergency) With additional information and medical information, first responders can access information from the victim's phone in case of emergency. In the event of a trauma, it is critical to have this information as early as possible which can increase the chances of survival.
Page 20 English (US) Copy all From phone to copy all phonebook entries from • the phone memory to the SIM card. Press Yes to confirm or No to abort. Send vCard Send by SMS to send the selected phonebook • contact as a vCard via text message (SMS). Enter the phone number of the recipient.
Page 21: Ice (In Case Of Emergency)
English (US) ICE (In Case of Emergency) First responders can access additional information such as medical information from the victim's phone in case of emergency. In the event of a trauma, it is critical to have this information as early as possible to increase the chances of survival.
Page 22: Messages
English (US) Other info: enter other information (e.g. organ donor, living • will, consent to treat). Press Save when done. Messages You can create and send text messages (SMS), picture messages (MMS) and voice messages using the Messages menu. Create and send text messages (SMS) Note! Before you can send any text messages (SMS), you need to save your message centre number.
Page 23: Create And Send A Voice Message
English (US) can be sent to you automatically via text message (SMS). If not, see MMS settings, p.34 on how to set your MMS profile. Press shortcut button Alternatively press Menu Messages. Select Create new MMS. Write your message, see Entering text , p.
Page 24: Inbox, Outbox And Sent
English (US) Inbox, Outbox and Sent Text message / Text message (SMS)/Picture (SMS)/Picture message message (MMS) unread (MMS) sent Text message / Text message (SMS)/Picture (SMS)/Picture message message (MMS) read (MMS) unsent Press Menu Messages. Select Inbox, Outbox or Sent. Select a message and press View.
Page 25: Call Log
English (US) Press OK to confirm. Call log Received, missed and dialled calls are saved in a combined call log. 20 calls of each type can be stored in the log. For multiple calls related to the same number, only the most recent call is saved. Retrieve and dial Press Alternatively, press Menu...
Page 26: Camera Adjustments
English (US) Send Send by Bluetooth to send to a Bluetooth device, • Bluetooth p.38. ® Delete to delete. Press Yes to confirm or No to return. • Wallpaper to save as display background. • Phonebook picture to save as phonebook contact. •...
Page 27: Connecting The Phone To A Computer
English (US) Sort by to sort pictures and videos by Name or Time. • Storage to save pictures and videos on Phone or Memory card. • Delete all to delete all saved pictures and videos. • Connecting the phone to a computer Connect the phone to a computer and start transferring pictures, music and other file types.
Page 28: Settings
Computer instructions may vary depending on your operating system. See the documentation of your computer's operating system for more information. Settings Use the Settings menu to personalise your Doro PhoneEasy 520X. ® General Time & date Set the time and date...
Page 29 English (US) Language The default language for the phone menus, messages etc. is determined by the SIM card. You can change this to any other language supported by the phone. Press Menu Settings General Language. to select a language. Press OK to confirm. Start-up wizard Use the Start-up wizard to set some basic settings.
Page 30 English (US) Select network to view available network, a list of available • network operators is displayed (after a short delay). Select desired operator. Network mode to select another network. Select Automatic • to select network automatically or Manual to select network manually.
Page 31: Sound
English (US) Note! The flashlight will drain the battery very quickly. Remember to turn it off after use. Phonebook storage Press Menu Settings General. Select Phonebook storage: SIM to save 1 phone number per contact. Number and • length of the phone numbers/contacts that can be stored will vary depending on SIM card/service provider preferences.
Page 32 English (US) Medium for mild hearing impairment or use in noisy • environment. High for moderate hearing impairment or use in a very noisy • environment. HAC mode for use with hearing aid in the T position. • Press OK to confirm. Tone setup Press Menu Settings...
Page 33: Display
English (US) Vib. then ring to start with vibration and adds ringtone after • a short while. Silent for no sound or vibration, the display light is lit. • Press OK to confirm. Extra tone Warning and error tones are used to alert you of low battery power, phone and SIM card errors etc.
Page 34: Calls
English (US) Press Menu Settings Display Themes. to select a theme. Press OK to confirm. LCD backlight Select the delay time for the display backlight. Press Menu Settings Display. Select LCD backlight: 15 sec. • 30 sec. • 1 min •...
Page 35 English (US) Press Options Call voice mail. Press OK to confirm. Tip: Press and hold shortcut button 1 to call your voice mail. If activated reminder in the Messages settings, a reminder signal will be heard after 10 minutes if not listening to new voice mail messages. Speed dial A , B , 0 and 2 –...
Page 36 English (US) Tip: You can also add entry from the phonebook. Select the contact and press Options Top 10. Call time During a call, the duration of the call is shown. You can check the duration of your calls. Press Menu Settings Calls.
Page 37 English (US) Send ID to always show your number • Press OK to confirm. Call waiting You can handle more than one call at a time. An alert tone will be heard if there is an incoming call while talking. To put the current call on hold and answer the incoming call, press Options Answer.
Page 38: Messages
English (US) Select Call setup Call barring. Select Outgoing calls: All calls to answer incoming calls but not dial out. • Internat.calls unable to call international numbers. • Int. except home unable to call international numbers except • to the country associated with the SIM card. Press OK to confirm.
Page 39 English (US) Select Memory status to display the percentage of memory space used on the SIM card and in the phone memory. Phone memory can store up to 200 messages. Press Back to return. Storage Press Menu Settings Messages SMS settings. Select Storage: SIM (default) to store messages on the SIM card.
Page 40 English (US) Cancel subscription, Add, Edit and Delete to define your channels. Press OK to confirm. MMS settings Memory status Press Menu Settings Messages MMS settings. Select Memory status to displays the percentage of memory space used in the phone memory. Press Back to return.
Page 41: Camera
English (US) Vibration The text message (SMS) vibration alert is several short vibrations that continues for Short (4 seconds) or Long (12 seconds). Press Menu Settings Messages. Select Vibration: Short (4 seconds) • Long (12 seconds) • Press OK to confirm. Note! If Alert type is set to Ring only the phone will not vibrate.
Page 42: Assistance
English (US) Note! With higher quality, less pictures can be stored in the internal memory. Assistance Change settings for the assistance button function. Activation Select how to activate the assistance function using the assistance button. Press Menu Settings Assistance. Select Activation: On Normal to activate by pressing and holding the button for •...
Page 43 English (US) Activation Press Menu Settings Assistance SMS. Select Activation: On the phone sends a text message before dialling. • Off the phone dials without sending a text message first. • Press OK to confirm. Message Press Menu Settings Assistance SMS.
Page 44: Bluetooth
English (US) Alarm info Please read the important safety information before enabling the assistance function: Press Menu Settings Assistance Alarm info: Be careful about including numbers with automatic • answering in the call list, as the alarm sequence stops once the call is answered.
Page 45 English (US) Search device Search for available Bluetooth audio devices. If Bluetooth is not enabled you can enable it by pressing Yes. Press Menu Settings Bluetooth Search device. Select from the list of devices and press Bond to connect. When connecting to another Bluetooth device you need a shared password.
Page 46: Security
English (US) Security SIM lock The SIM card is protected with a PIN code (Personal Identification Number). The phone can be set to ask for the PIN code on startup. Press Menu Settings Security. Select SIM lock: On to activate PIN code, you need to enter the PIN code •...
Page 47 Activation. Select On/Off to enable/disable. Press OK to confirm. Number list You need to add the name and number of the people who are allowed to send information from their phone to your Doro PhoneEasy 520X. ® Press Menu Settings Security Remote config.
Page 48 English (US) Fixed dial (FDN) You can limit calls to certain numbers saved on the SIM card. The list of allowed numbers is protected by your PIN2-code. Press Menu Settings Security. Select Fixed dial: Mode On/Off to enable/disable. • Fixed numbers Add and enter the first allowed number.
Page 49: File Manager
English (US) Enter the phone password and press OK to reset. Note! The default phone code is 1234. File manager Manage the contents and properties of files. You can open, delete, move, copy and rename files. Press Menu Settings File manager. Select Phone/Memory card Open.
Page 50: Additional Functions
English (US) Video format: MP4/3GPP. Only playback is possible. • Additional functions Organizer Organizer menu contains: Alarm Daily reminder Calendar Notes Alarm Press Menu Organizer Alarm Enter the alarm time using the keypad. Press OK to confirm. For a single occurrence, select Single. For a repeated alarm, select Repeated.
Page 51 English (US) Enter time for the task, then press Enter subject. Press OK to confirm. Jump to date Press Menu Organizer Calendar Jump to date. Enter the date. Press OK to confirm. View all Press Menu Organizer Calendar. Select a task and press Options View all.
Page 52 English (US) Add to add new reminder. • Edit to edit selected reminder. • Delete to delete selected reminder. • Delete all to delete all reminders. • Press OK to confirm. Note! The reminder will work even when the phone is switched off. Do not press Yes to power on if wireless phone use is prohibited or when it may cause interference or danger.
Page 53 English (US) Tip: Press to return to standby mode. The radio will continue to play. Volume Press Menu FM radio. Press Options Volume. or the side buttons +/– to adjust the volume. Press OK to confirm. Save frequency Press Menu FM radio Options Save frequency.
Page 54 English (US) Fine tune to tune manually with • Auto search to use automatic station search with • Press OK to confirm. Auto save Note! This will overwrite all previously saved channels! Press Menu FM radio Options. Select Auto save to automatically install available radio stations in channels 1 - 9 .
Page 55 Press Back to return to standby mode. Instructions for the REMOTE USER Send remote control commands by text message (SMS) Make sure activation is set to On and that the remote user is saved in the Number list on the Doro PhoneEasy 520X. ® Press Menu...
Page 56 Example: Send Jeff Jackson’s mobile number, home number and his office number to Doro PhoneEasy 520X. ® The mobile number is: 0700-393939. Home number: 046-280 50 11. Office number: 046-280 50 83. *#phonebook#Jeff Jackson#0700393939#0462805011#0462 •...
Page 57 English (US) alert Name number 1–5 number location in max. max. Number list length=30 length=40 alert Text message max. 0=Off 1=On length=70 alert confirm with 0=Off “0” 1=On alert 0/1/2 signal type 0=High 1=Low 2=Silent Example: Activate the assistance function. *#alert#a#1# •...
Page 58 Name number B key max length = 30 max length = 40 Example: Set Jeff Jackson’s mobile number in memory key A in Doro PhoneEasy 520X and Martha Thomson in memory key B. ® *#memorykey#a#Jeff Jackson#0700393939# • *#memorykey#b#Martha Thomson#0768991014# •...
Page 59: Troubleshooting
English (US) Troubleshooting Phone cannot be switched on Battery charge low Connect the power adapter and charge the battery for 3 hours. Full battery capacity is reached after the battery has been charged 3–4 times. Battery incorrectly Check the installation of the battery. installed Failure to charge the battery Battery or charger...
Page 60: Safety Instructions
English (US) SIM card error SIM card damaged Check the condition of the SIM card. If it is damaged, contact your service provider. SIM card incorrectly Check the installation of the SIM card. Remove installed the card and reinstall it. SIM card dirty or damp Wipe the contact surfaces of the SIM card with a clean cloth.
Page 61: Network Services And Costs
English (US) Network services and costs Your device is approved for use on the WCDMA 850/1900 MHz, GSM 850/1800/1900 MHz networks. To use the device, you need a subscription with a service provider. Using network services may result in traffic costs. Some product features require support from the network, and you may need to subscribe to them.
Page 62: Areas With Explosion Risk
English (US) Areas with explosion risk Always turn off the unit when you are in an area where there is a risk of explosion. Follow all signs and instructions. There is a risk of explosion in places that include areas where you are normally requested to turn off your car engine. In these areas, sparks can cause explosion or fire which can lead to personal injury or even death.
Page 63: Driving Safely
English (US) Do not place objects, including fixed or portable radio equipment in the area above the airbag or the area where it might expand. Serious injuries may be caused if the mobile phone equipment is incorrectly installed and the airbag fills with air. It is prohibited to use the unit in flight.
Page 64: Hearing Aid Compatibility
English (US) Assess the traffic before dialing, or place calls when you are not moving or • before pulling into traffic. Try to plan calls when your car will be stationary. Never dial, send SMS text messages, or enter other text while you are driving. Driving while operating a mobile phone is distracting and could cause serious injury or death.
Page 65: Rf Exposure Information (Sar)
English (US) Commission of the U.S. Government and by the Canadian regulatory authorities. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6W/kg.
Page 66: Ic Radiation Exposure Statement
Doro AB and its affiliates, licensees and retailers assume no responsibility for any damage or loss resulting from the use of this guide. Doro AB and its affiliates, licensees and retailers assume no responsibility for any loss or claims by third parties that may arise through the use of this software.
Page 67: Fcc/Industry Canada Notice
The FCC or Industry Canada can require you to stop using your unit if such interference cannot be eliminated. Doro has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment.
Page 68 English (US) Protect the unit from moisture. Rain/snowfall, moisture and all types of • liquid can contain substances that corrode the electronic circuits. If the unit gets wet, you should remove the battery and allow the unit to dry completely before you replace it.
Page 69: Battery Disposal And Recycling Information
Except as required by applicable law, batteries are consumables and are not included in any guarantee. This guarantee does not apply if batteries other than DORO original batteries are used. EXCEPT FOR THE WARRANTY EXPRESSLY SET FORTH HEREIN, DORO AB...
Page 70: Specifications
English (US) Website: www.dorocanada.com Telephone: 1-888-611-3676 Specifications Network: WCDMA 850/1900 MHz, GSM 850/1800/1900 MHz Dimensions: 118 mm (4.64 in) x 53 mm (2.08 in) x 13 mm (.51 in) Weight: 95 g (3.35 oz) (including battery) Battery: 3.7 V / 800 mAh Li-ion battery Bluetooth is a registered trademark of Bluetooth SIG, inc.
Page 71 English (US)
