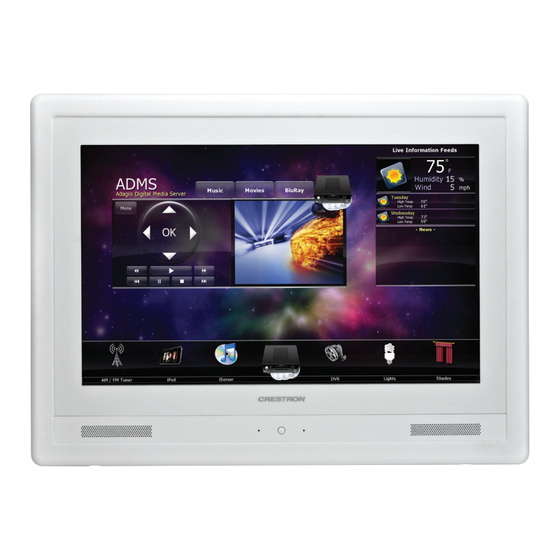

V-panel 12” & 15” hd touch screen displays
Hide thumbs Also See for V12:
Table of Contents

Advertisement

Quick Links

Download this manual
Crestron V12 & V15
V-Panel™
12" & 15" HD Touch Screen Displays
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron V12

Summary of Contents for Crestron V12

  • Page 1 Crestron V12 & V15 V-Panel™ 12” & 15” HD Touch Screen Displays Operations Guide...
  • Page 2 Oracle Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

  • Page 3: Table Of Contents

    Crestron V12 & V15 V-Panel 12” and 15” HD Touch Screen Displays Contents V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Introduction ..........................1 Features and Functions ....................1 Applications......................... 7 Specifications ......................8 Physical Description ....................13 Setup ............................

  • Page 5: V-Panel 12" And 15" Hd Touch Screen Displays

    3. Supports Rava SIP Intercom via the DGE-2 only. Supports legacy IP Intercom as well as wired analog intercom via the DGE-1 or DGE-2. Supports push-to-talk mode only. Hands-free mode is not ® supported. For Rava or IP Intercom, the V12/15 must connect directly to the DGE via DM CAT with no repeaters or switchers in line.
  • Page 6 1. The V12/15 features a DM CAT type input. For direct connection to a DGE-1, use DM-CBL DigitalMedia cable up to 150 feet (45 meters) in length. For connection to a DGE-2, direct or via a DigitalMedia switcher, use DM-CBL DigitalMedia cable up to 300 feet (91 meters) in length.
  • Page 7 Fully developed SmartObjects™ enable sophisticated control over complex devices with minimal programming. The V12/15 features a DM CAT type input. For direct connection to a DGE-1, use DM-CBL DigitalMedia cable up to 150 feet (45 meters) in length. For connection to a DGE-2, direct or via a DigitalMedia switcher, use DM-CBL DigitalMedia cable up to 300 feet (91 meters) in length.
  • Page 8 Netflix HDMI and Analog Video In addition to handling streaming video, the V12/15 can simultaneously display up to two fully scalable, full motion video windows, each supporting SD or HD video and high resolution computer signals from external sources. All connections are made at ®...
  • Page 9 ® computers running TouchPoint Virtual Mouse & Keyboard Software (VMK-WIN). A USB port is also provided on the V12/15, allowing for the connection of a physical keyboard and mouse. Real Time Annotation Whether conducting a high level boardroom meeting, training seminar or watching sports in the home theater, annotation helps put the fine point on any presentation.
  • Page 10 Smart Graphics or integration with a DigitalMedia system. 2. The V12/15 features a DM CAT type input. For direct connection to a DGE-1, use DM-CBL DigitalMedia cable up to 150 feet (45 meters) in length. For connection to a DGE-2, direct or via a DigitalMedia switcher, use DM-CBL DigitalMedia cable up to 300 feet (91 meters) in length.

  • Page 11: Applications

    V-Panel 12” and 15” HD Touch Screen Displays Applications The following diagram shows a V12/15 in a typical application. V12/15 in a Typical Application V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 7 Operations Guide – DOC. 6806H...

  • Page 12: Specifications

    Input Signal Type DM CAT Input Resolution 800 x 600 @ 60 Hz 1280 x 768 @ 60 Hz (Continued on following page) 8 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 13 10.81 in (275 mm) max at 0º tilt Width 11.72 in (298 mm) Depth 8.11 in (206 mm) max at 35º tilt (Continued on following page) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 9 Operations Guide – DOC. 6806H...
  • Page 14 V-Panel 15” VESA Mount HD Touch Screen Display, White V15-TILT-B V-Panel 15” Tilt HD Touch Screen Display, Black (Continued on following page) 10 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 15 DigitalMedia Cable Connector DM-DR DigitalMedia Repeater MMK-V12 Mud Ring for BB-V12 or PMK-V12 MMK-V15 Mud Ring for BB-V15 or PMK-V15 (Continued on following page) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 11 Operations Guide – DOC. 6806H...
  • Page 16 Mud Ring for V15-WALL WMKT-V12 Post-Construction Wall Mounting Kit with Trim Ring for V12-WALL WMKT-V15 Post-Construction Wall Mounting Kit with Trim Ring for V15-WALL 12 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...

  • Page 17: Physical Description

    Physical Description This section provides information on the connections, controls and indicators available on the V12/15. V12-TILT Physical View (Shown in Black) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 13 Operations Guide – DOC. 6806H...
  • Page 18 V-Panel 12” and 15” HD Touch Screen DisplaysCrestron V12 & V15 V12-WALL Physical View (Shown in White) 14 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 19 Crestron V12 & V15 V-Panel 12” and 15” HD Touch Screen Displays V15-TILT Physical View (Shown in Black) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 15 Operations Guide – DOC. 6806H...
  • Page 20 V-Panel 12” and 15” HD Touch Screen DisplaysCrestron V12 & V15 V15-WALL Physical View (Shown in White) V-Panel Physical View (Rear Showing Connector Ports) 16 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 21 V-Panel 12” and 15” HD Touch Screen Displays V12 Overall Dimensions (Front and Side Views) 11.72 in (298 mm) 10.22 in (260 mm) 1.66 in (42 mm) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 17 Operations Guide – DOC. 6806H...
  • Page 22 4.14 in (105mm) NOTE: In the illustration above, the V12 is shown with the rear cover removed. When making cable connections to the V12, first removing the four screws holding the cover in place, then remove the cover. Replace the cover when connections have been made.
  • Page 23 V-Panel 12” and 15” HD Touch Screen Displays V12-TILT Overall Dimensions (Front View) 11.72 in (298 mm) 10.22 in (260 mm) 10.81 in (275 mm) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 19 Operations Guide – DOC. 6806H...
  • Page 24 V12-TILT Overall Dimensions (Side View) 35º Max Tilt Angle 64.00 in ±1.00 1.66 in (~1.63 m) (42 mm) 8.11 in (206 mm) 20 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 25 V-Panel 12” and 15” HD Touch Screen Displays V15 Overall Dimensions (Front and Side Views) 15.33 in (390 mm) 11.10 in (282 mm) 1.85 in (47 mm) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 21 Operations Guide – DOC. 6806H...
  • Page 26 When making cable connections to the V15, first removing the four screws holding the cover in place, then remove the cover. Replace the cover when connections have been made. 22 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 27 V-Panel 12” and 15” HD Touch Screen Displays V15-TILT Overall Dimensions (Front View) 15.33 in (390 mm) 11.10 in (282 mm) 11.69 in (297 mm) V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 23 Operations Guide – DOC. 6806H...
  • Page 28 Angle 64.00 in ±1.00 1.85 in (~1.63 m) (47 mm) 8.11 in (206 mm) V12/15 Overall Dimensions (Rear View – V15 Shown) 24 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 29 DMNet wiring cannot be daisy chained. 4. The V12/15 features a DM CAT type input. For direct connection to a DGE-1, use DM-CBL DigitalMedia cable up to 150 feet (45 meters) in length. For connection to a DGE-2, direct or via a DigitalMedia switcher, use DM-CBL DigitalMedia cable up to 300 feet (91 meters) in length.
  • Page 30 HDMI signal. The M port carries data. Refer to the following table for the connector pinouts. D and M Ports PIN # WIRE COLOR PIN # WIRE COLOR Orange/White Blue/White Orange Green Green/White Brown/White Blue Brown 26 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...

  • Page 31: Setup

    DM OUT, D & M or Keyboard NOTE: The V12/15 features a DM CAT type input. For direct connection to a DGE-1, use DM-CBL DigitalMedia cable up to 150 feet (45 meters) in length. For connection to a DGE-2, direct or via a DigitalMedia switcher, use DM-CBL DigitalMedia cable up to 300 feet (91 meters) in length.

  • Page 32: Tilt Tension Adjustment

    V12 & V15 Tilt Tension Adjustment Tilt tension on the V12 and V15 is preset at the factory to allow the panel to be tilted anywhere within its 35 degree tilt range and maintain its position during use. To tighten tilt tension or to fix the panel at a given tilt position, use the three Allen screws accessed through the hole in the touch screen base, as shown in the following illustration.

  • Page 33: Resources

    Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column. V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 29 Operations Guide – DOC. 6806H...
  • Page 34 V-Panel 12” and 15” HD Touch Screen DisplaysCrestron V12 & V15 This page is intentionally left blank. 30 • V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806H...
  • Page 35 Crestron V12 & V15 V-Panel 12” and 15” HD Touch Screen Displays This page is intentionally left blank. V-Panel 12” and 15” HD Touch Screen Displays: V12 & V15 • 31 Operations Guide – DOC. 6806H...
  • Page 36 Crestron Electronics, Inc. Operations Guide – DOC. 6806H 15 Volvo Drive Rockleigh, NJ 07647 (2024096) Tel: 888.CRESTRON 12.14 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
