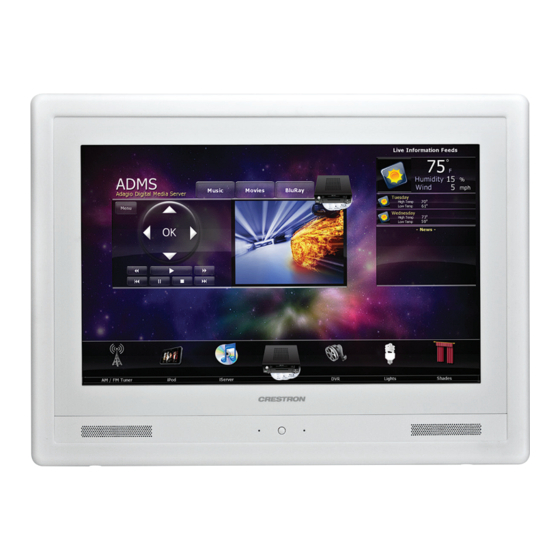

Crestron V-Panel V12 Operation Manual
  1. Manuals
  2. Brands
  3. Crestron Manuals
  4. Touchscreen
  5. V12
  6. Operation manual

Crestron V-Panel V12 Operation Manual

12” & 15” hd touch screen displays
Hide thumbs Also See for V-Panel V12:
Table of Contents

Advertisement

Quick Links

Download this manual
Crestron V12 & V15
V-Panel™
12" & 15" HD Touch Screen Displays
Operations Guide

Advertisement

Table of Contents
loading

Related Manuals for Crestron V-Panel V12

Summary of Contents for Crestron V-Panel V12

  • Page 1 Crestron V12 & V15 V-Panel™ 12” & 15” HD Touch Screen Displays Operations Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON Regulatory Compliance As of the date of manufacture, the V12 and V15 have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

  • Page 3: Table Of Contents

    Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Contents V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Introduction ..........................1 Features and Functions ....................1 Applications......................... 6 Specifications ......................7 Physical Description....................12 Setup ............................

  • Page 5: V-Panel™ 12" And 15" Hd Touch Screen Displays

    Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Introduction ® Crestron V-Panels™ deliver a whole new level of style and function in a fresh new design offering exceptional versatility and the latest Crestron high definition touchpanel technology.
  • Page 6 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Features and Functions (Continued) • Industry’s only HDCP-ready touchpanel controller • VESA compatible mounting affords endless install options • Tabletop tilt model features clean, modern design • Wall mount model installs flush in shallow spaces •...
  • Page 7 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Advanced Touchpanel Control Crestron touchpanels like the V12/15 offer an ideal user interface for multimedia presentation, home automation, command centers and much more, providing a wide open canvas for the creation of custom control screens tailored to the needs of the end user.
  • Page 8 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 HDCP Support Industry leading support for HDCP (High-bandwidth Digital Content Protection) ensures seamless compatibility with content protected DVD, Blu-ray Disc™, digital HDTV and multimedia computer sources.* Streaming Video Through the DGE’s embedded Web browser and media player, the V12/15 supports streaming and downloadable video in a variety of formats, enabling access to all kinds of media from online sources and network servers.
  • Page 9 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Remote Annotation Remote annotation capability allows multiple touchpanel users to draw with their fingertips over the same video image or whiteboard screen, enabling enhanced interaction between several participants in a courtroom, classroom or council chamber.

  • Page 10: Applications

    V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Applications The following diagram shows a V12/15 in a typical application. V12/15 in a Typical Application 6 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...

  • Page 11: Specifications

    Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Specifications Specifications for the V12/15 are listed in the following table. V12/15 Specifications SPECIFICATION DETAILS Touchscreen Display Display Type TFT Active Matrix Color Display Size 12 inch (305 mm) diagonal 15 inch (381 mm) diagonal Aspect Ratio 4:3 SVGA...
  • Page 12 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V12/15 Specifications (Continued) SPECIFICATION DETAILS Power Requirements ® DMNet Power Usage 30 Watts (1.25 Amps @ 24 Volts DC), normally powered from DGE (sold separately) via DMNet connection 42 Watts (1.75 Amps @ 24 Volts DC), normally powered from DGE (sold separately) via DMNet connection...
  • Page 13 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V12/15 Specifications (Continued) SPECIFICATION DETAILS Dimensions (Continued) Height 11.10 in (282 mm) Width 15.33 in (390 mm) Depth 1.85 in (47 mm) V15-TILT Height 11.69 in (297 mm) max at 0º tilt Width 15.33 in (390 mm) Depth...
  • Page 14 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V12/15 Specifications (Continued) SPECIFICATION DETAILS Included Accessories V-CBL-T-3 V-Cable Triamese Cable, 3 feet (~0.9 meters) (Included with V12 models only) V-CBL-T-6 V-Cable Triamese Cable, 6 feet (~1.8 meters) (Included with V12-TILT models only) V-IMCW V-Panel Interface Module...
  • Page 15 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V12/15 Specifications (Continued) SPECIFICATION DETAILS Available Accessories (Continued) WMKM-V12 Post-Construction Wall Mounting Kit with Mud Ring for V12-WALL Post-Construction Wall Mounting Kit with WMKM-V15 Mud Ring for V15-WALL WMKT-V12 Post-Construction Wall Mounting Kit with Trim Ring for V12-WALL...

  • Page 16: Physical Description

    V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Physical Description This section provides information on the connections, controls and indicators available on your V12/15. V12-TILT Physical View (Shown in Black) 12 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...
  • Page 17 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V12-WALL Physical View (Shown in White) V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 • 13 Operations Guide – DOC. 6806D...
  • Page 18 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V15-TILT Physical View (Shown in Black) 14 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806D...
  • Page 19 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V15-WALL Physical View (Shown in White) V-Panel Physical View (Rear Showing Connector Ports) V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 • 15 Operations Guide – DOC. 6806D...
  • Page 20 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V12 Overall Dimensions (Front and Side Views) 11.72 in (298 mm) 10.22 in (260 mm) 1.66 in (42 mm) 16 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...
  • Page 21 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V12 Overall Dimensions (Rear View) 4.39 in 2.96 in (112 mm) (75 mm) 2.96 in (75 mm) 4.14 in (105 mm) NOTE: In the illustration above, the V12 is shown with the rear cover removed. When making cable connections to the V12, it will be necessary to remove the cover by first removing the four screws holding it in place.
  • Page 22 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V12-TILT Overall Dimensions (Front View) 11.72 in (298 mm) 10.22 in (260 mm) 10.81 in (275 mm) 18 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...
  • Page 23 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V12-TILT Overall Dimensions (Side View) 35º Max Tilt Angle 64.00 in ±1.00 1.66 in (~1.63 m) (42 mm) 8.11 in (206 mm) V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 • 19 Operations Guide –...
  • Page 24 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V15 Overall Dimensions (Front and Side Views) 15.33 in (390 mm) 11.10 in (282 mm) 1.85 in (47 mm) 20 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...
  • Page 25 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V15 Overall Dimensions (Rear View) 6.19 in 2.96 in (158 mm) (75 mm) 2.96 in (75 mm) 4.14 in (105 mm) NOTE: In the illustration above, the V15 is shown with the rear cover removed. When making cable connections to the V15, it will be necessary to remove the cover by first removing the four screws holding it in place.
  • Page 26 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 V15-TILT Overall Dimensions (Front View) 15.33 in (390 mm) 11.10 in (282 mm) 11.69 in (297 mm) 22 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide –...
  • Page 27 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays V15-TILT Overall Dimensions (Side View) 35º Max Tilt Angle 64.00 in ±1.00 1.85 in (~1.63 m) (47 mm) 8.11 in (206 mm) V12/15 Overall Dimensions (Rear View – V15 Shown) V-Panel™...
  • Page 28 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Connectors, Controls & Indicators CONNECTORS DESCRIPTION CONTROLS & INDICATORS Hard Key (1) Programmable push button, also reboots DGE if held for five seconds DM Link LED (1) Green LED, indicates power and connection to DGE or other DM device 2, 3 24 A B G...
  • Page 29 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays 7. The DM INPUT port consists of two separate RJ-45 connectors labeled D and M. The D port carries HDMI signal. The M port carries data. Refer to the following table for the connector pinouts. D and M Ports PIN # WIRE COLOR...

  • Page 30: Setup

    V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Setup Configuring the V-Panel The V-Panel is configured from the setup menu using the DGE Digital Graphics Engine (sold separately). Refer to the Operations Guide that came with your DGE. Hardware Hookup Ventilation The V12/15 should be used in a well-ventilated area.

  • Page 31: Recommended Cleaning

    Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Position of Allen Screws for Tilt Tension Adjustment Allen Screws for Tilt Tension Adjustment Recommended Cleaning Keep the surface of the touchscreen free of dirt, dust or other materials that could degrade optical properties.

  • Page 32: Resources

    V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 Resources Reference Documents The latest version of all documents mentioned within the guide can be obtained from the Crestron Web site (www.crestron.com/dmresources). This link will provide a list of product manuals arranged in alphabetical order by model number.

  • Page 33: Return And Warranty Policies

    Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer.
  • Page 34 V-Panel™ 12” and 15” HD Touch Screen Displays Crestron V12 & V15 This page is intentionally left blank. 30 • V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 Operations Guide – DOC. 6806D...
  • Page 35 Crestron V12 & V15 V-Panel™ 12” and 15” HD Touch Screen Displays This page is intentionally left blank. V-Panel™ 12” and 15” HD Touch Screen Displays: V12 & V15 • 31 Operations Guide – DOC. 6806D...
  • Page 36 Crestron Electronics, Inc. Operations Guide – DOC. 6806D 15 Volvo Drive Rockleigh, NJ 07647 (2024096) Tel: 888.CRESTRON 03.11 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
