11

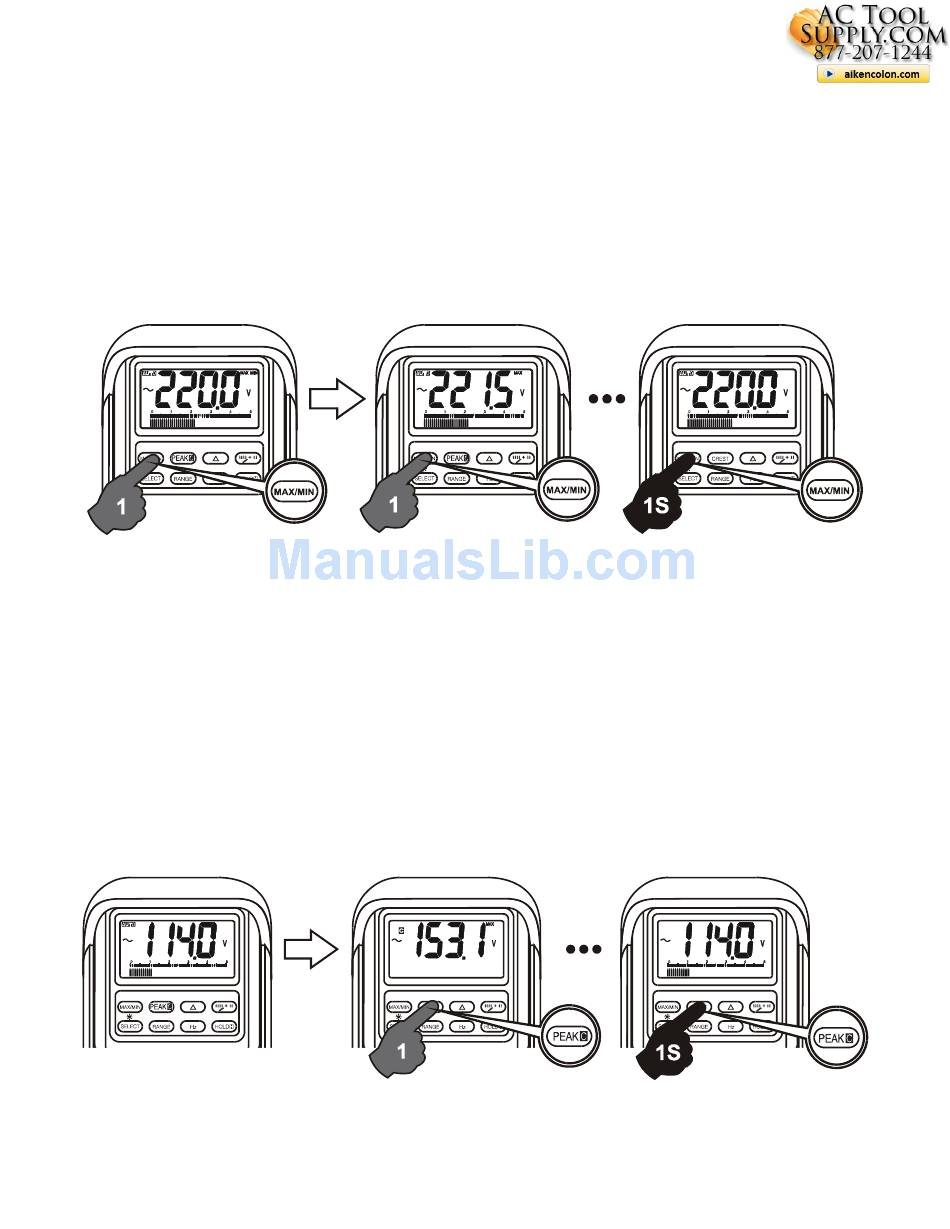

50ms MAX/MIN at fast 20/s measurement mode (Model MP530 only)
Press the MAX/MIN button momentarily to activate MAX/MIN recording mode. The
LCD annunciators "MAX MIN" turn on, and the reading update rate will be increased to
20/second. The meter beeps when a new maximum or minimum reading is updated.
Press the button momentarily to read throughout the Maximum (MAX), Minimum (MIN),
and Maximum minus Minimum (MAX-MIN) readings. Press the button for greater than
1 second exit MAX/MIN mode. Auto Power Off feature will be automatically disabled in
this mode.
0.8ms PEAK capture mode (Model MP530 only)
Press PEAK button momentarily to activate Instantaneous Peak-Hold mode to capture
voltage or current signal duration as short as 0.8ms. This mode is available in DCV,
ACV, DCA, & ACA functions. The LCD annunciators "C" & "MAX" turn on. The meter
beeps when a new maximum or minimum reading is updated. Press the button
momentarily to read throughout the Maximum (MAX), Minimum (MIN), and Maximum
minus Minimum (MAX-MIN) readings. Press the button for greater than 1 second to exit
PEAK capture mode. Auto Power Off feature will be disabled automatically in this
mode.
