Lincoln Electric Magnum 100SG Technical Specifications

Magnum
Spool Gun

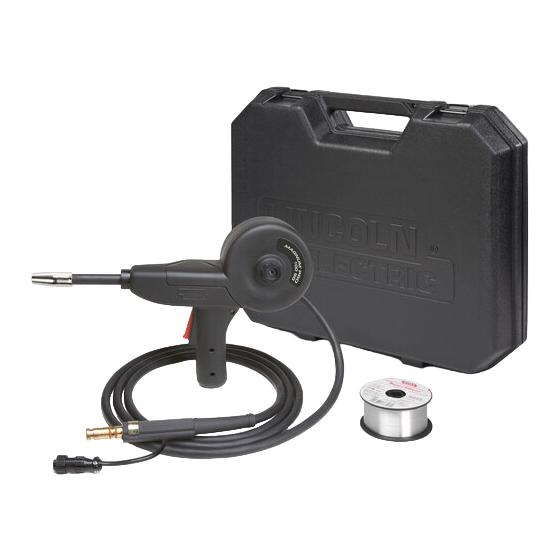

The Magnum ® 100SG spool gun is the lowest cost way to add reliable and precise
spool gun wire feeding performance for soft aluminum wire. It's easy to set up, does
not require a bulky outboard adapter/power module and shares gun expendable parts
with the standard MIG gun included with the Power MIG
The Magnum ® 100SG is a reliable, low-price aluminum welding spool gun for novice
and experienced welders. For added protection, the Magnum
cushioned carrying case. To reduce the number of expendable parts needed, this spool
gun uses the same contact tips and nozzles as the standard Magnum
Visit www.lincolnelectric.com/community/projects/
that can be built using Lincoln Electric equipment and consumables.
Processes
MIG/GMAW
Advantage Lincoln
PRODUCTIVITY
A
• Lightweight at only 3.5 lbs. (1.6 Kg).
• All combinations of specified aluminum alloys and wire
diameters can be fed with the same drive roll and liner assembly.
• 0.030-0.035" (0.8-0.9 mm) drive roll included.
EASE-OF-USE
B
• Professionally-styled, smooth exterior with ergonomic grip
and balance.
C
• Full travel mechanical trigger can be easily felt through a
welding glove.
D
• 10 ft (3.0 m) gun cable, control harness, and gun connector offers
fast connections to the welding machine.
• No expensive gun or bulky adapter module is required.
PEACE-OF-MIND
E
• Uses the same tips, diffuser, and nozzles as the Magnum
• Cushioned carrying case protects the gun during storage.
F
• 90-days warranty on parts and labor.
Product
Name
®
Magnum 100SG
Spool Gun
®
100SG
® models.
® 100SG comes with a
® 100L MIG gun.
to see the wide range of projects
C
D
® 100L.
TECHNICAL SPECIFICATIONS
Rated Output
Product Current/Duty
Number Cycle
K2532-1 130A/30%
ACCESSORIES
A
E
Fast installation and set-up allows you to get
started on projects and repairs right away.
Cable Dimension
Length H x W x D
Ft. (m) Inches (mm)
10 15.75 x 10.50 x 4.25
(3) (400.1 x 266.7 x 1080)
without case or cable
B
Output
Input
12
VDC
F
Net Weight
Lbs. (kg)
3.5
(1.6)
includes cable
Publication E12.21 11/06
www.lincolnelectric.com
