TECNOEKA Srl _____________________________________________________ use and instruction manual
M
Power terminal board
Pr
"End of cooking" programmer
T1
Safety thermostat
T2
Oven thermostat
I
Humidifier switch
E
Humidifier solenoid-valve
page 12 _________________________________________________________________________________

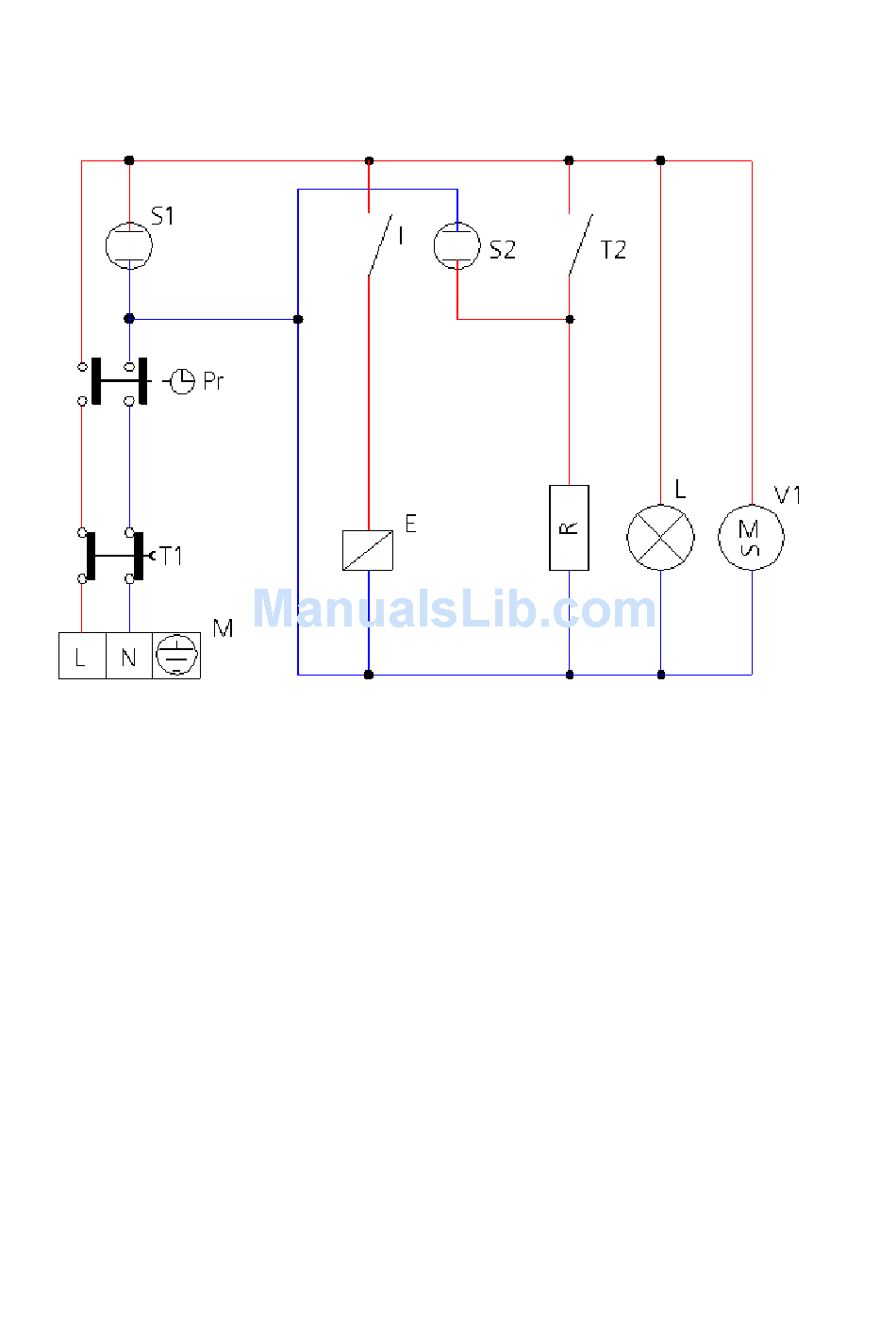

EKF 423 UP
Key
S1
Programmer indicator light
S2
Thermostat indicator light
L
Oven lighting lamp
R
Circular heating-element
V1
Oven motorised ventilator
