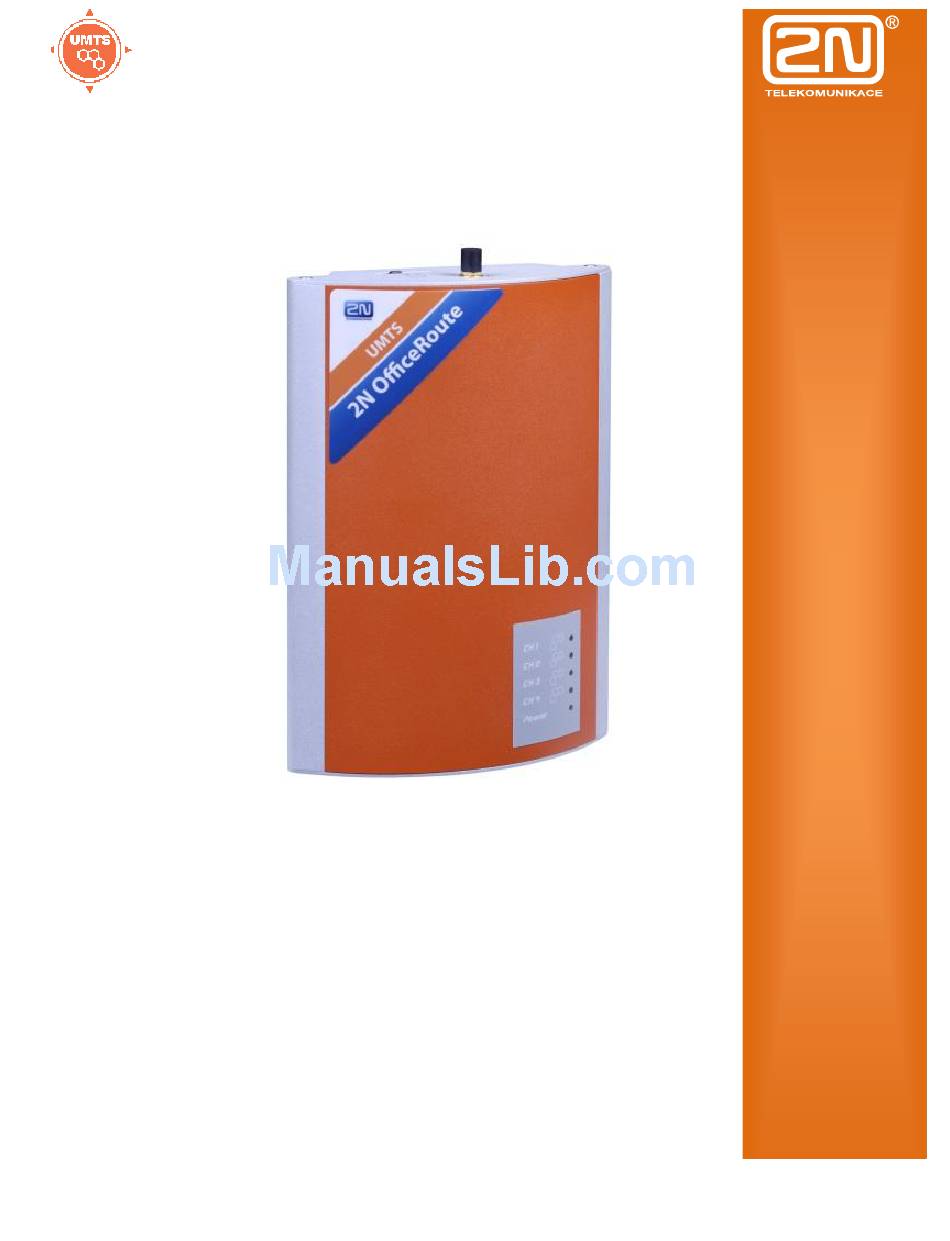

- Page 1 2N OfficeRoute QUICK GUIDE version 0.91...
-
Page 2: Basic Settings
OfficeRoute’s web interface in case that you assign IP address of your PC from the same range as IP of OfficeRoute. In case you want to change IP address of OfficeRoute as a first step, you can use supplied USB cable (it is necessary to install USB driver). Run... -
Page 3: Sim Card Settings
2N OfficeRoute Type IP address of OfficeRoute into your web browser and you’ll get login page:: Default login name is Admin , no password. Settings for UMTS router functionality SIM card settings Before you insert SIM card into the unit, it is needed to set PIN code (or disable PIN code in your mobile phone). - Page 4 2N OfficeRoute If PIN code is stored, power-off the unit, mount antenna and insert SIM card(s). Then power unit on. When LED indicators are off, it means that SIMs are logged into to a network. In case that LED indicator shines orange, there’s no signal of preferred network or PIN is wrong.
- Page 5 2N OfficeRoute Fill GPRS provider name (user defined) and APN (you can find this information on a web page of network provider or ask his help line). Sometimes username and password is needed. Don’t fill GPRS number and GPRS initial AT commands (these settings are not needed for most cases).
-
Page 6: Connection To Internet
OfficeRoute may work also as DHCP server. You can set necessary settings in Network – DHCP server. In case that IP of OfficeRoute is 10.0.0.1, then you can use settings from the picture bellow. Then IP addresses 10.0.0.2-10.0.0.100 are assigned to devices in your LAN. -
Page 7: User Settings
In case you need to set Mobility Extension this user, tick Outgoing/Incoming ME checkbox and fill his mobile phone number. Voicemail: 2N OfficeRoute is equipped by internal voicemail. Each user can have own voicemail box (licensed). Set PIN for entering user’s voicemail and set... - Page 8 2N OfficeRoute his mobile phone number for receiving notification SMSes. Internal SIP line Internal SIP line connects SIP proxy to LCR. You can imagine it as such gateway to LCR – see picture bellow. User ‚vbegw‘ is predefined as default user for internal SIP line with password ‘1234’.
-
Page 9: Set Route
2N OfficeRoute Where ‚SIP server address‘ is IP adres sof OfficeRoute. Set route Telephony services>LCR>Routes – List of existing routes and adding and removing routes. A Route means outgoing trunk (bundle of SIMs, modules, SIP lines or DISA lines). - Page 10 2N OfficeRoute Fig. 1 – ‘Add route’ form There is a route named ‘Mobile Networks’ on the picture which contains all modules, it is being used during all defined time intervals without suppressing CLI (CLI can be suppressed for mobile networks only).
- Page 11 2N OfficeRoute There is an example of a LCR rule. Destination name is user defined, the rule is applied to called numbers with prefixes 6 or 7, call is routed to the route ‘ Mobile networks’ with unknown priority. Priority can be...
