Summary of Contents for Brecknell 6030
-

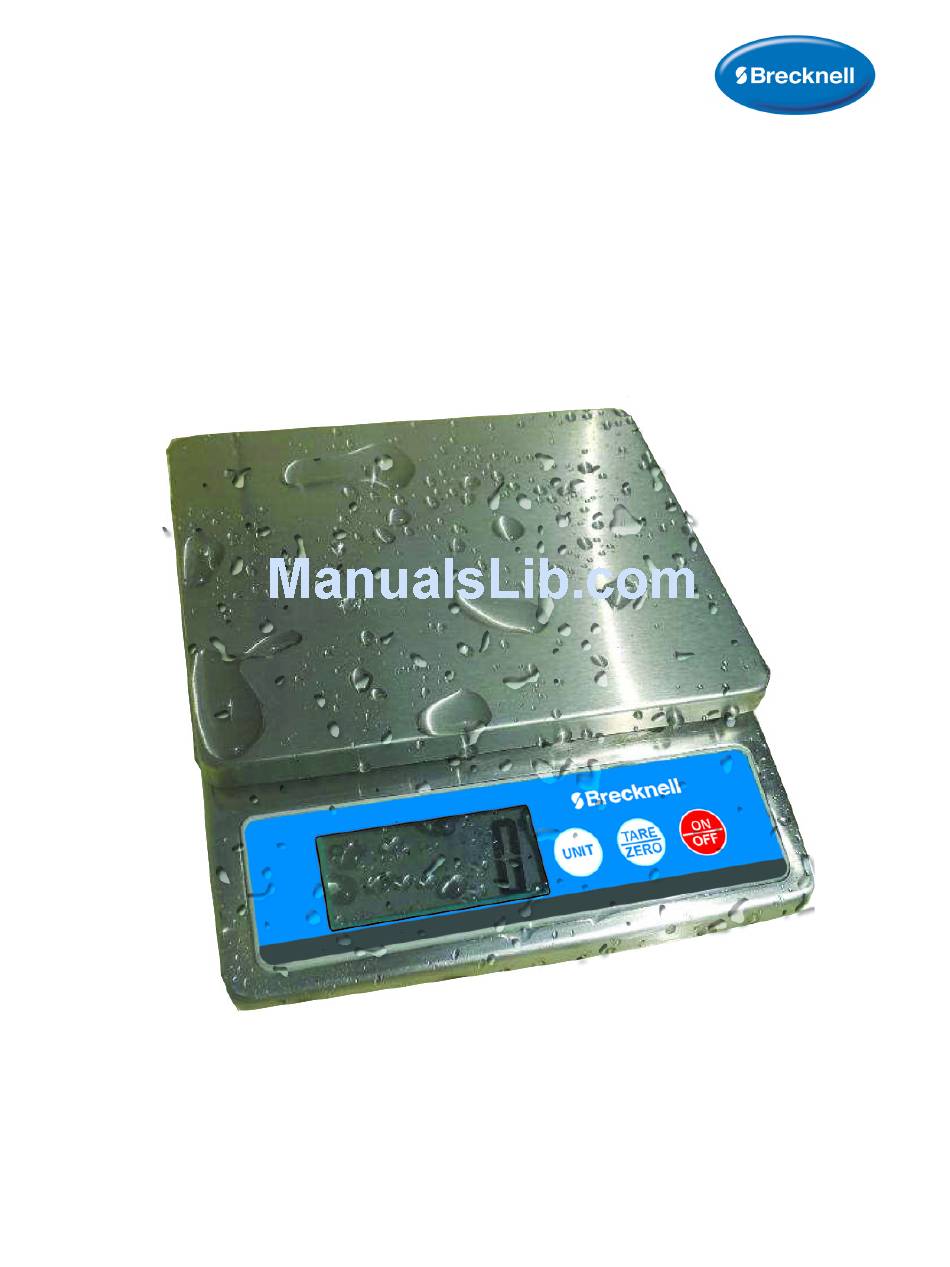

Page 1: User Instructions
Model 6030 Counting Scale User Instructions AWT 35-501440 Issue AA... - Page 2 Brecknell is part of Avery Weigh-Tronix. Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose ultimate parent company is Illinois Tool Works Inc ("Illinois Tool Works"). Copyright © 2014 Illinois Tool Works. All rights reserved.
-
Page 3: Table Of Contents
Display and Keys ......................11 Scale Keys ........................ 11 LCD Symbol Descriptions ..................12 Chapter 3 Operation ..........................13 Simple Weighing ......................13 Tare Function ........................13 Unit Key Function ......................13 Set Auto-off Time ......................14 6030 Counting Scale User Instructions... - Page 4 6030 Counting Scale User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
Cautions give information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data. NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 6030 Counting Scale User Instructions... -
Page 6: Safe Handling Of Equipment With Batteries
Do NOT attempt to repair the scale yourself. Contact your local representative. 1.4 Routine Maintenance IMPORTANT: This equipment must be routinely checked for proper operation and calibration. Application and usage will determine the frequency of calibration required for safe operation. 6030 Counting Scale User Instructions... -
Page 7: Training
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp Objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. 6030 Counting Scale User Instructions... -
Page 8: Chapter 2 Introduction
Gross weight: 1.0 kg Power 9V alkaline battery 9V adapter (male type) Temperature Range 5°C up to +35°C 2.2 Installing the Battery Turn the scale over to find the battery housing cover. Battery housing cover 6030 Counting Scale User Instructions... - Page 9 Remove the two screws holding on the battery cover exposing the battery cavity. Battery cavity Install the 9V alkaline battery Reinstall the battery housing cover. 6030 Counting Scale User Instructions...
-
Page 10: Front Panel
2.3 Front Panel 2.4 Display and Keys 2.4.1 Scale Keys Keys Key Name Function ON/OFF Turn the scale ON or OFF TARE/ZERO Tare an unwanted weight during the weighing process UNIT Select the weighing unit 6030 Counting Scale User Instructions... -
Page 11: Lcd Symbol Descriptions
2.4.2 LCD Symbol Descriptions 6030 Counting Scale User Instructions... -
Page 12: Chapter 3 Operation
To delete the saved tare value, remove the tare object from the scale platform and press TARE/ZERO key. 3.3 Unit Key Function Press the UNIT key to switch from one weighing unit to another. For example from g to 6030 Counting Scale User Instructions... -
Page 13: Set Auto-Off Time
3.4 Set Auto-off Time The Model 6030 has an Auto-Off time option, which enables the scale to turn off automatically when the scale is not in use. The time duration for auto-off can be selected in the following way: Turn on the scale by pressing the ON/OFF key. - Page 15 Brecknell 1000 Armstrong Dr., Fairmont, MN 56031 Toll free: 800-637-0529, Tel: 507-238-8702 Fax: 507-238-8271 Email: sales@brecknellscales.com www.brecknellscales.com Brecknell Foundry Lane Smethwick, West Midlands B66 2LP Tel: +44 (0) 845 246 6717 Fax: +44 (0) 845 246 6718 Email: sales@brecknellscales.co.uk www.brecknellscales.co.uk...
