Scale Setup

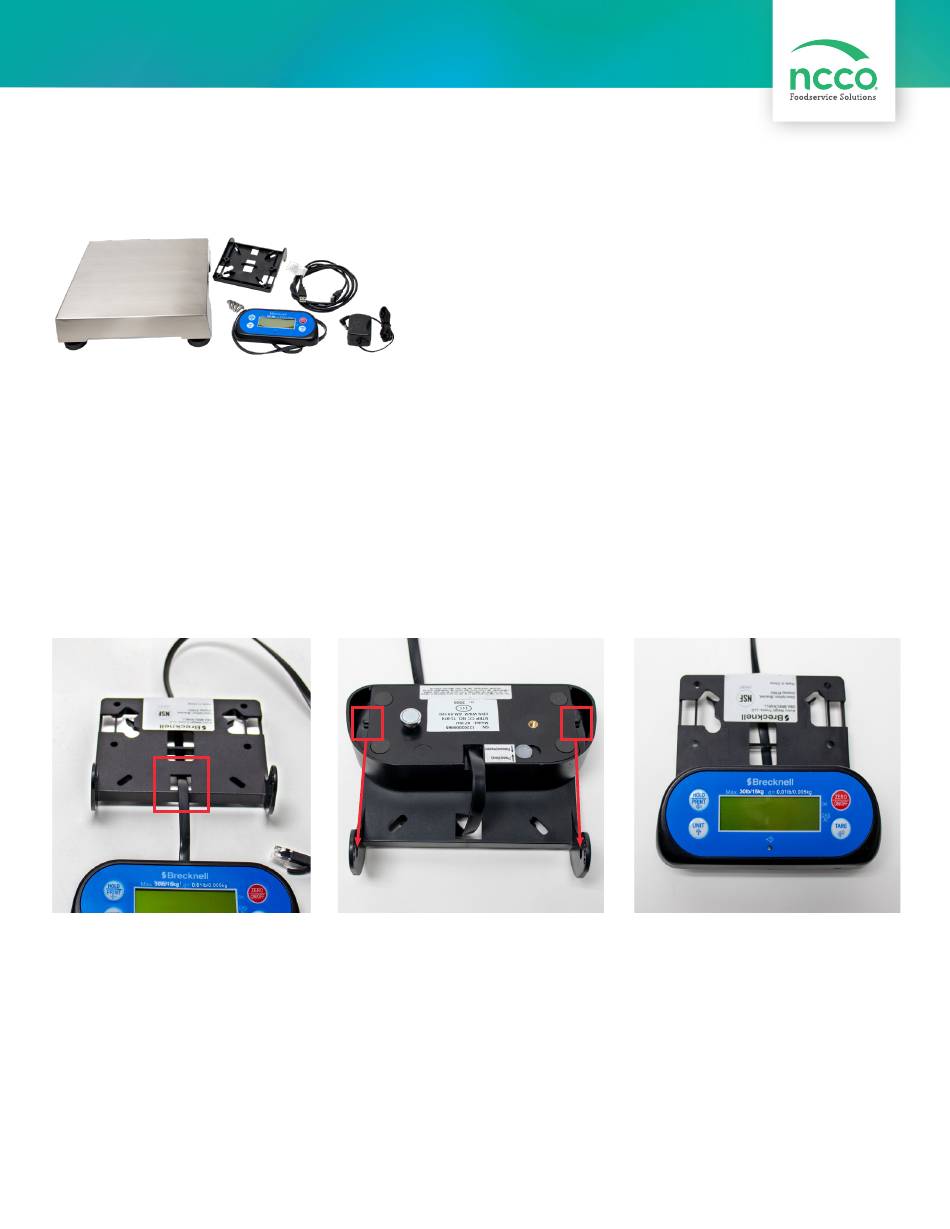

1. Feed display pad cable through
front square cutout in display
bracket.
Scale Quick Start Guide
®
model Brecknell 6710 Series

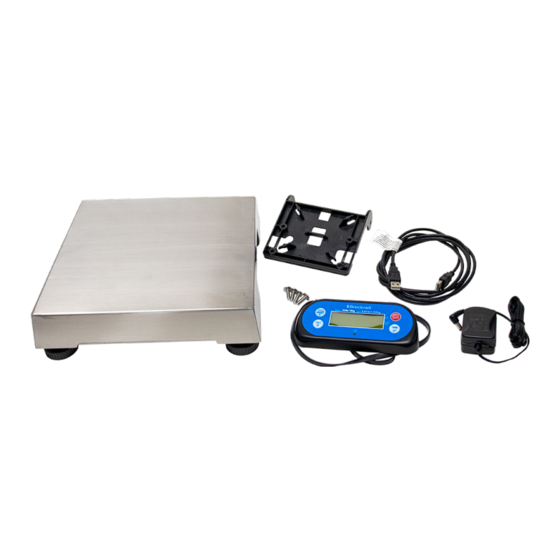

Parts Included
• Scale body
• Display pad with cable
• Display bracket
• 4 Mounting screws
• USB cable
• Power adapter (12V)
Tools Required
• Phillips screwdriver
• 8mm wrench (included)
2. Flip display pad upside down to locate both hinge pins. Insert hinge pins
into hinge holes of display bracket and snap in place.
NC DCG 09 002 (4/21)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brecknell 6710 Series
Summary of Contents for Brecknell 6710 Series
- Page 1 DateCodeGenie Scale Quick Start Guide ® model Brecknell 6710 Series Parts Included • Scale body • Display pad with cable • Display bracket • 4 Mounting screws • USB cable • Power adapter (12V) Tools Required • Phillips screwdriver • 8mm wrench (included) Scale Setup 1.
- Page 2 3. Remove cover from scale body and set aside. 4. Turn scale body upside down. Remove and discard, five short mounting screws with Phillips screwdriver and shipping screw with 8mm wrench provided. 5. Align four holes of the display unit with the four 6.
- Page 3 8. Wrap excess cable around display bracket hooks. 9. Turn the scale body upright. Connect Power adapter and USB cable to matching ports on scale body and to outlet and USB port on DateCodeGenie device. 10. Place the scale in final location for use and view 11.
- Page 4 LCD Display Pad LCD Annunciator Description Mode Condition Function Weight or count Press for less than 3 seconds Enter or exit HOLD/PRINT mode Better known as the "Center of Zero" Press [HOLD] + [ON/OFF] for Weight or count Enter setup mode more than 3 seconds annunciator.
