Leviton 95A03-1 Installation Instructions And User Manual

Installation Instructions and User's Guide

WARNINGS AND CAUTIONS

• Read and understand all instructions. Follow all warnings and instructions marked on the product.
• Do not use this product near water - e.g., near a tub, wash basin, kitchen sink or laundry tub, in a wet basement, or
near a swimming pool.
• Never push objects of any kind into this product through openings, as they may touch dangerous voltages.
• Never install communications wiring or components during a lightning storm.
• Never install communications components in wet locations unless the components are designed specifically for use in
wet locations.
• Never touch uninsulated wires or terminals unless the wiring has been disconnected at the network interface.
• Use caution when installing or modifying communications wiring or components.
• SAVE THESE INSTRUCTIONS.

DESCRIPTION

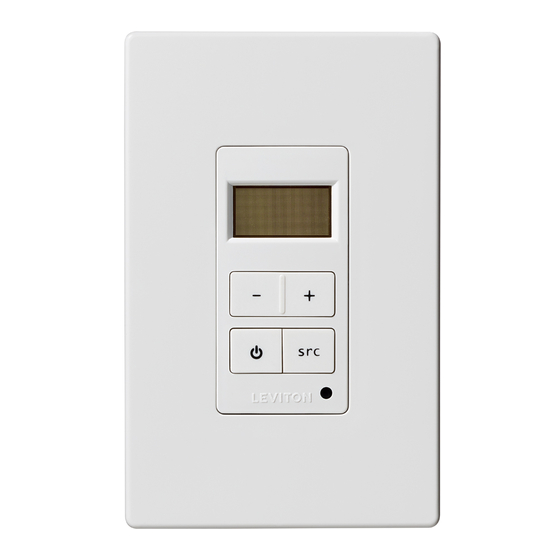

The Hi-Fi 2 Volume-Source Control is a 4-button keypad used to interface with Hi-Fi2 audio zones and audio sources.
The audio sources can be selected and controlled by any Volume-Source Control (VSC). Additionally, each VSC
includes an IR receiver that allows you to remotely control the Hi-Fi2 system and/or audio sources from any audio zone
in the house.

INSTALLATION

Volume-Source Control (VSC) Keypads connect directly to the Hi-Fi2 Main Assembly using Cat 5, unshielded, twisted
pair (UTP) for communications. Each end of the wire is terminated with an RJ45 connector. The correct wiring scheme
for the Cat 5 cable is standard EIA/TIA 568A. Properly terminating the Cat 5 cable is crucial for the operation of the
system.
The total distance of Cat 5 between the Hi-Fi2 Main Assembly and the VSC units must not exceed 2000 feet. It is best
that no single run of Cat 5 exceeds 250 feet.
Insert the RJ45 connector on one end of the cable to audio zone input jack (1-8) under "Volume Source Control / IR In"
on the Hi-Fi2 Main Assembly. Insert the RJ45 connector on the other end of the cable to the jack labeled "Zone Control"
on the VSC.

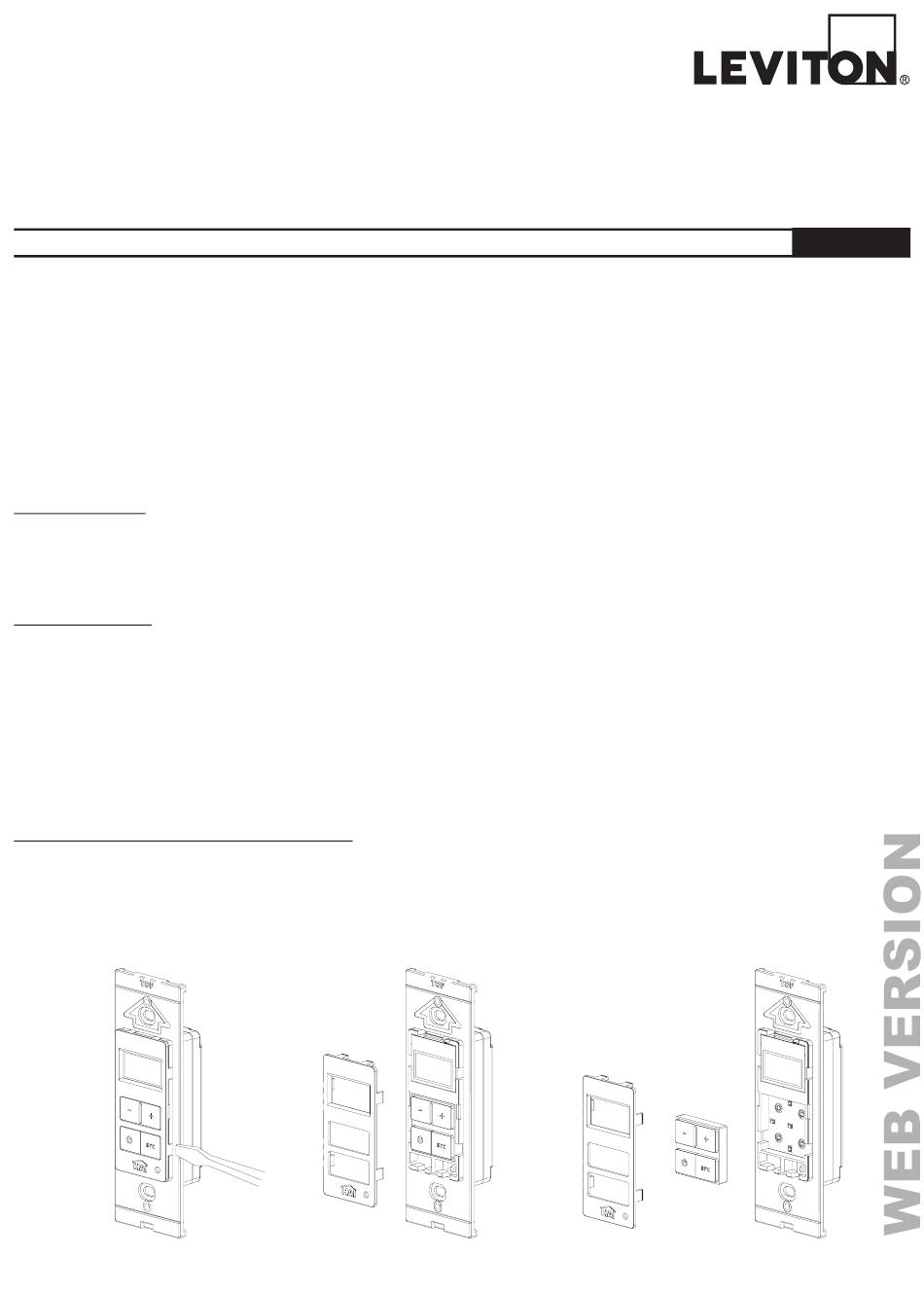

CHANGING THE COLOR OF THE VSC

The color of the VSC may be changed to complement the interior décor. The VSC is supplied with a white faceplate,
rubber keypad, and insert. Additional colors are available; contact your Leviton distributor for more information. Change
the color of the RIM as follows:
1. Remove the faceplate.
VOLUME-SOURCE CONTROL (VSC)
Cat. No. 95A03-1
INSTALLATION
DI-021-95A03-05A
(95I03-1)
ENGLISH
