Vermont Castings BR36 Homeowner's Installation And Operating Manual

Br/bc series woodburning fireplace

Hide thumbs

Table Of Contents

Quick Links

BR/BC Series

Woodburning Fireplace

WF553

BR/BC36

11/10/97

For use in U.S./Canada

Underwriter's Laboratories

Report No. MH7603

DO NOT DISCARD THIS MANUAL: Retain for future use.

Homeowner's Installation

and Operating Manual

For Models:

BR36

BR42

BC36

BC42

7412944 12/12 Rev. 29

Table of Contents

Need help?

Do you have a question about the BR36 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vermont Castings BR36

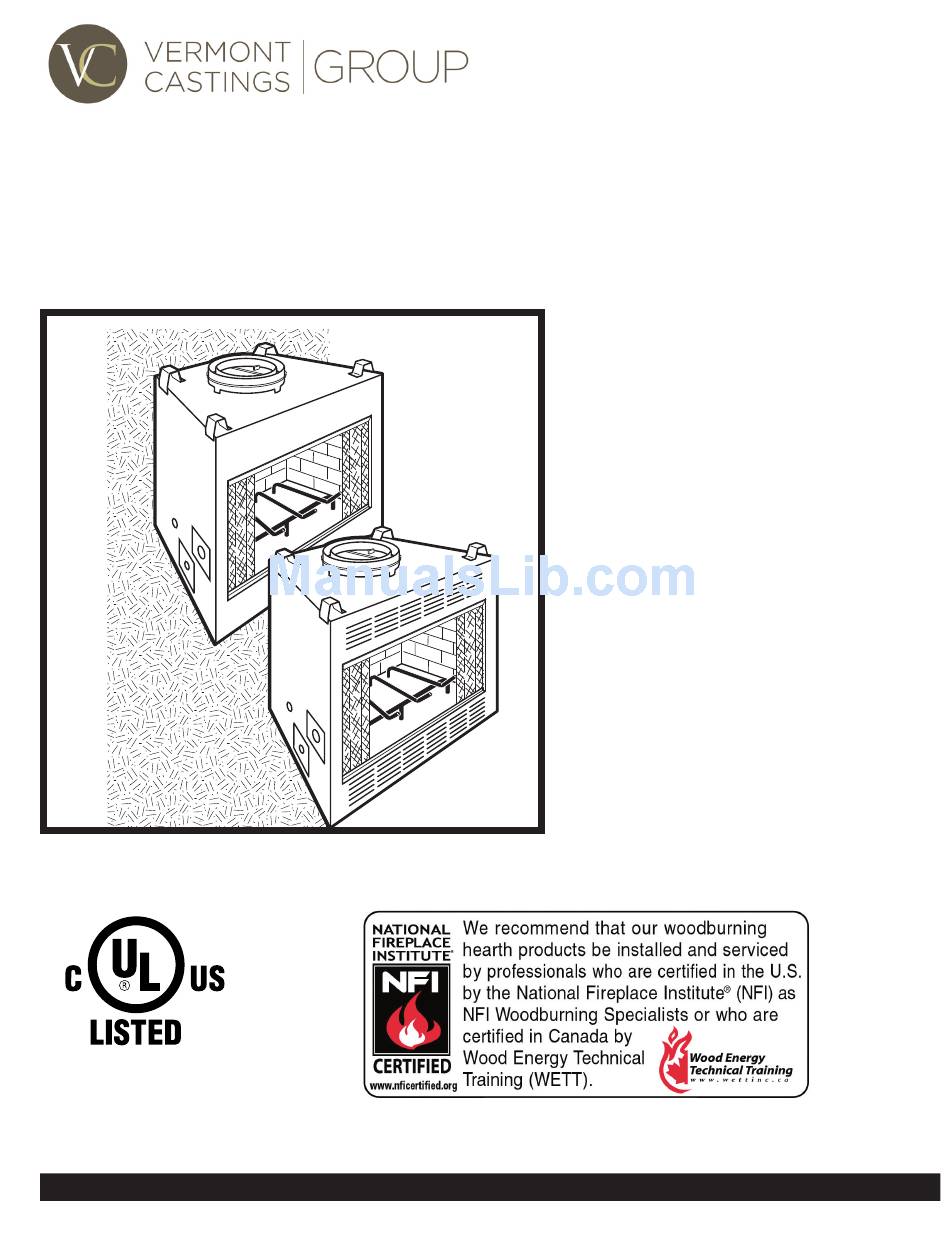

Page 1 BR/BC Series Woodburning Fireplace Homeowner's Installation and Operating Manual For Models: BR36 BR42 BC36 BC42 WF553 BR/BC36 11/10/97 For use in U.S./Canada Underwriter's Laboratories Report No. MH7603 DO NOT DISCARD THIS MANUAL: Retain for future use. 7412944 12/12 Rev. 29...
Page 2: Table Of Contents
The BR/BC Series fireplaces are solid fuel, woodburning Burn only solid wood fuel or gas logs. fireplaces. The BR36/42 (Builder Radiant) is a clean-face Do not install a solid fuel burning insert or other prod- fireplace and the BC36/42 (Builder Circulating) unit has ucts not specified for use with this fireplace.
Page 3: Specifications And Framing
(241mm) " Electrical Access (337mm) If elbows are offset to the back of the unit, chase depth will be 22⁵⁄₈" (575mm). Fig. 1 BR36 Series specifications and framing. FP526 BR36 SPECS 10/28/98 BC36 Series Woodburning Fireplace — Circulating Model " (559mm)
Page 4 BR/BC Series Woodburning Fireplaces BR42 Series Woodburning Fireplace " (711mm) Rough Opening 11" Dia. Depth 49" (1245mm) " (279mm) " " (13mm) (187mm) 8" Dia. (521mm) (203mm) 20" (508mm) " Recessed Nailing Flange Rough Opening Width 47" (1194mm) Rough Opening Height "...
Page 5: Parts Identification
BR/BC Series Woodburning Fireplaces Front Width Back Width Depth BR/BC36 33Z⁄v" 19⁵⁄₈" 15Z⁄v" (845 mm) (499 mm) (387 mm) BR/BC42 39Z⁄v" 25⁵⁄₈" 15Z⁄v" (997 mm) (651 mm) (387 mm) FP1531 FP1531 Fig. 4a Hearth dimensions. hearth dimensions 9/04 djt Chase Installation Insulation methods shown are optional for cold climate, not a requirement for Termination Cap...
Page 6: Chimney Requirements
BR/BC Series Woodburning Fireplaces Chimney Requirements - Offset Installations OFFSET CHIMNEY FLUE EXIT RISE CHIMNEY SECTION FP282 FP282 30˚ 30° elbow Offsets ELBOW RETURN MBUF ELBOW 5/26/96 1¹⁄₂' 3' 4' Offset Rise 30˚ 3" 11" OFFSET 8Z⁄v" 20" ELBOW RISE 11Z⁄v"...
Page 7: Planning Information
BR/BC Series Woodburning Fireplaces Planning Information The Ten Foot Rule Preplanning an installation is very important to ensure safety and to save time and money. An installer must Major U.S. building codes specify a minimum chimney predetermine where a fireplace will be set and how the height above the roof top.
Page 8: Installation
BR/BC Series Woodburning Fireplaces Installation Chimney Supports The chimney system is supported by the fireplace for Insulating Fireplace enclosure vertical chimney heights less than 30' (9 m) above the hearth. Chimney supports are required if the vertical for Cold Climates height exceeds 30' (9 m) with SK8 chimneys or 20' (6 m) If you live in a cold climate, it is not required but highly with 3-wall chimneys.
Page 9 Surface END CONNECTION OF CHIMNEY SECTIONS AND ELBOWS. NOTe: Fireplaces may use Vermont Castings Group Model SK8, or Model S (three wall) chimney systems. The BR/BC Series Fireplace will accept the SK8 chimney system as is; but a TWABR adapter collar is required when using the Model S (triple wall) chimney system.
Page 10 This is accomplished by us- New Framing Members ing Vermont Castings Group elbows. Use the 30° Offset Elbow table on Page 6 to determine proper offset and parts required. A "SK" Series framing = 14Z⁄₂" X 14Z⁄₂" (368 x 368mm) B "S"...
Page 11 BR/BC Series Woodburning Fireplaces The inside dimension of the frame must be the same as Installing Outside Air Kit the hole size selected from Figure 13 in order to provide An outside air kit is installed in all BR/BC Series Fireplaces. Angle of Chimney at Ceiling If desired, or if local codes mandate the use of an air kit, Size of Chimney...
Page 12 BR/BC Series Woodburning Fireplaces Installing the Chimney System Pipe Section Start by attaching the first chimney section to the collar on Pipe top of the fireplace. Install the pipe as pictured in Figure 16. When you get Lance a good lock, you will hear the pipe clearly snap together. Pipe Once sections are snap-locked in place, it is extremely difficult to get them apart.
Page 13 BR/BC Series Woodburning Fireplaces DO NOT put any sealant around the area where the outer support is 2Z⁄₂" (64mm) long when installed. Consider this pipe slides through the firestop spacer. If you seal this dimension when determining how many straight chimney area, it may cause a fire hazard.
Page 14 BR/BC Series Woodburning Fireplaces Install Remainder of Chimney Sections Air Space Clearances Since you have already preplanned the height of your termination according to the Ten Foot Rule, continue to Combustible framing material MUST NOT install pipe to the predetermined height. penetrate AIR SPACE (shaded areas).
Page 15 BR/BC Series Woodburning Fireplaces Mantel Clearance - Mantel Clearance - Radiant Model - No Mantel Clearance - Radiant Circulating Model Noncombustible Facing Material Model - with Noncombustible Facing Material Combustible Combustible Combustible Mantel and Mantel and Mantel and 12" 12" Trim 12"...
Page 16 1/2 inches thick opening. 2. Vermont Castings Group - EH2416, K = .458, The top of insulation must be covered with a noncombus- 1 inch thick required. tible decorative covering or a piece of .018” minimum sheet (Micor 300) metal, to protect hearth extension material.
Page 17 BR/BC Series Woodburning Fireplaces example of Determining Hearth extension equiva- WARNINg: HeARTH eXTeNSION MUST Be IN- lents STALLeD IN ACCORDANCe WITH FIgURe 23 AND MUST NOT COVeR THe BOTTOM FRONT OPeNINg To determine the thickness required for any new mate- OF THe CIRCULATINg MODeL.
Page 18 Vermont Castings Group fireplaces are designed to accept a 1/2 inch gas line for installation of an approved gas ap- pliance. (Vermont Castings Group manufactures a wide 1" variety of gas logs for use in Vermont Castings Group Min. Supply Line Gas Line fireplaces.)
Page 19: Replacement Parts
BR/BC Series Woodburning Fireplaces Vermont Castings Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, with out notice. BR/BC SeRIeS Item/Model Number BR/BC36 BR/BC42 1. Damper Blade Weld Assembly...
Page 20: Accessories
Vermont Cast- make any modifications, you may create a possible fire ings Group, 149 Cleveland Drive, Paris, KY 40361, Attn: hazard and will void the Vermont Castings group war- Technical Services. ranty. In addition, such action may void the coverage provided by the owner’s insurance.
Page 21 BR/BC Series Woodburning Fireplaces Chimney Components U.S. Component Description Model Number Round Top Termination Top used to terminate chimney at roof. (Flashing not included.) RLTSK8 Round Top Termination - Top used to terminate chimney at chase. Extended (Flashing not included.) RLTSK8L Flashing Metal finishing required around Contemporary...
Page 22 BR/BC Series Woodburning Fireplaces (Chimney Components con't.) Canada Component Description Model Number Chimney Collar Enclosure Installs on the "over the chimney collar" of the CCE-SK fireplace; provides outside air to assist in cooling the chimney system. Attic Insulation Shield Used to prevent insulation from coming in AIS-SK contact with the chimney system.
Page 23 Limitations and exclusions 1. No one has authority to add to or vary this limited warranty, or to create for Vermont Castings Group any other obligations of liability in connection with this fireplace and accessory.
Page 24 Vermont Castings group 149 Cleveland Drive • Paris, Kentucky 40361 www.vermontcastingsgroup.com...
