OpenVox B800P User Manual for mISDN
Written by: James.zhu
Email:james.zhu@openvox.cn,zhulizhong@gmail.com
Date:15/10/2007
Version: 0.01
VoIPon
www.voipon.co.uk
sales@voipon.co.uk
Tel: +44 (0)1245 808195
Fax: +44 (0)1245 808299
Advertisement
Related Manuals for OpenVox B800P
Summary of Contents for OpenVox B800P

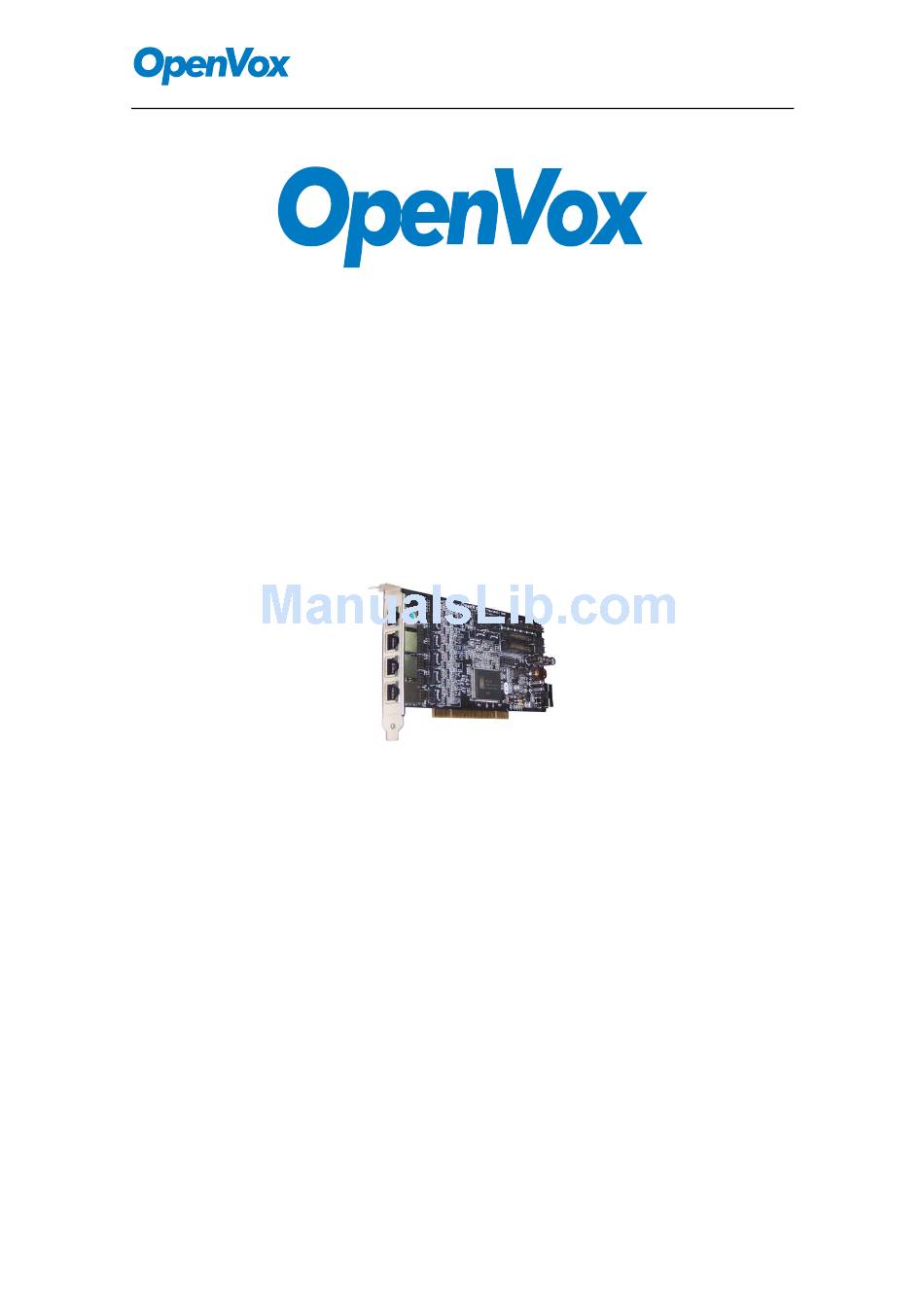

- Page 1 User Manual 深圳开源通信有限公司 OpenVox-Best Cost Effective Asterisk Cards OpenVox B800P User Manual for mISDN Written by: James.zhu Email:james.zhu@openvox.cn,zhulizhong@gmail.com Date:15/10/2007 Version: 0.01 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 2 No.9283,Binhe Road,Futian District,ShenZhen ,Guangdong 518048,China Tel:+86-755-82535362,82535095,Fax:+86-755-82535174 E-Mail：sales@openvox.com.cn IM for Sales: betty_yljiang@hotmail.com rubyzhang1217@hotmail.com IM for Technical Support: support@openvox.com.cn,zhulizhong@gmail.com,zhulizhongum@hotmail.com Business Hours: 9:30AM-17:30PM from Monday-Friday URL：www.openvox.com.cn Thank You for Choosing OpenVox Products! VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 3 User Manual Table of Contents Chapter 1 Overview………………………………………………………………… 4 Chapter 2 Card Installation and Configuration……………………………… 6 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 4: Chapter 1 Overview
User Manual Chapter 1 Overview 1. What is B800P B800P is a PCI 2.2 compliant card supporting 8 BRI S/T interfaces, with an onboard multi NT power feeding circuits. NT/TE mode can be individually configured on each of 8 ports. - Page 5 User Manual telephony equipment using relatively inexpensive hardware. Figure 1: Asterisk Setup Source (http://www.siriusit.co.uk/uploads/images/consulting/asteriskSetup.gif) Asterisk provides Voicemail services with Directory, Call Conferencing, Interactive Voice Response, Call Queuing. It has support for three-way calling, caller ID services, ADSI, IAX, SIP, H.323 (as both client and gateway), MGCP (call manager only) and SCCP/Skinny(voip-info.org).
- Page 6 CPU will be initialized at last. That is to say that if user has more than one cards of B800P in pc, the one is nearest to CPU should be set to card id 0.
- Page 7 5) Plug back the AC power cable, and power on PC If user wants to know the details about hardware configuration of B800P, please refer hardware setting section. 2. Software Installation and Setup...
- Page 8 /usr/src/: Here， we are using mISDN-1_1_2 and mISDNuser_1_1_2. User can get more details from mISDN.org. B. Download OpenVox patch called hfc_multi.c from www.openvox.com.cn. It contains a patched hfc_multi.c file; user overwrites the original hfc_multi.c file with hfc_multi.c...
- Page 9 User Manual C. Make links with kernel source: ln -s /usr/src/kernels/2.6.18-8.el5-i686/ /usr/src/linux-2.6 Here, under /usr/src there is kernel source, user must create link linux-2.6 under /usr/src/. There are many files under /usr/src/, please check: D. Compiling mISDN, mISDNuser,chan_mISDN and asterisk cd /usr/src/mISDN-1_1_2 make make install...
- Page 10 E. Modifying and loading modules for mISDN Execute: mISDN scan Please take note here: 1) B800P uses different chip, the setting will be different from B200P/400P. The command mISDN start will generate an incorrect misdn.conf under /etc. To solve that problem, user has to edit the mISDN from /usr/sbin directory.
- Page 11 145 and add one line in the mISDN and comment the above line. The edition is shown as follow: The type should be 0x08 // for B800P with 1 NT mode and 7 TE mode The layermask should be: 0x3,0xf,0xf,0xf,0xf,0xf,0xf,0xf...
- Page 12 User Manual The misdn.conf and extensions.conf are shown as follow: The console shows that user calls to SIP and makes outbound call by using ISDN ISDN phone: VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 13 OS: Centos 5 Kernel version: 2.6.18-8.15 Asterisk version: Asterisk-1.4.11 mISDN version: mISDN-1_1_2 Hardware：OpenVox B800P If user wants to check hardware setting, ping assignments and references, please check from: http://www.openvox.com.cn/downloadsFile/1194838660.pdf Some Concerns: 1) LEDs will turn into green and blink if the drivers are loaded.
