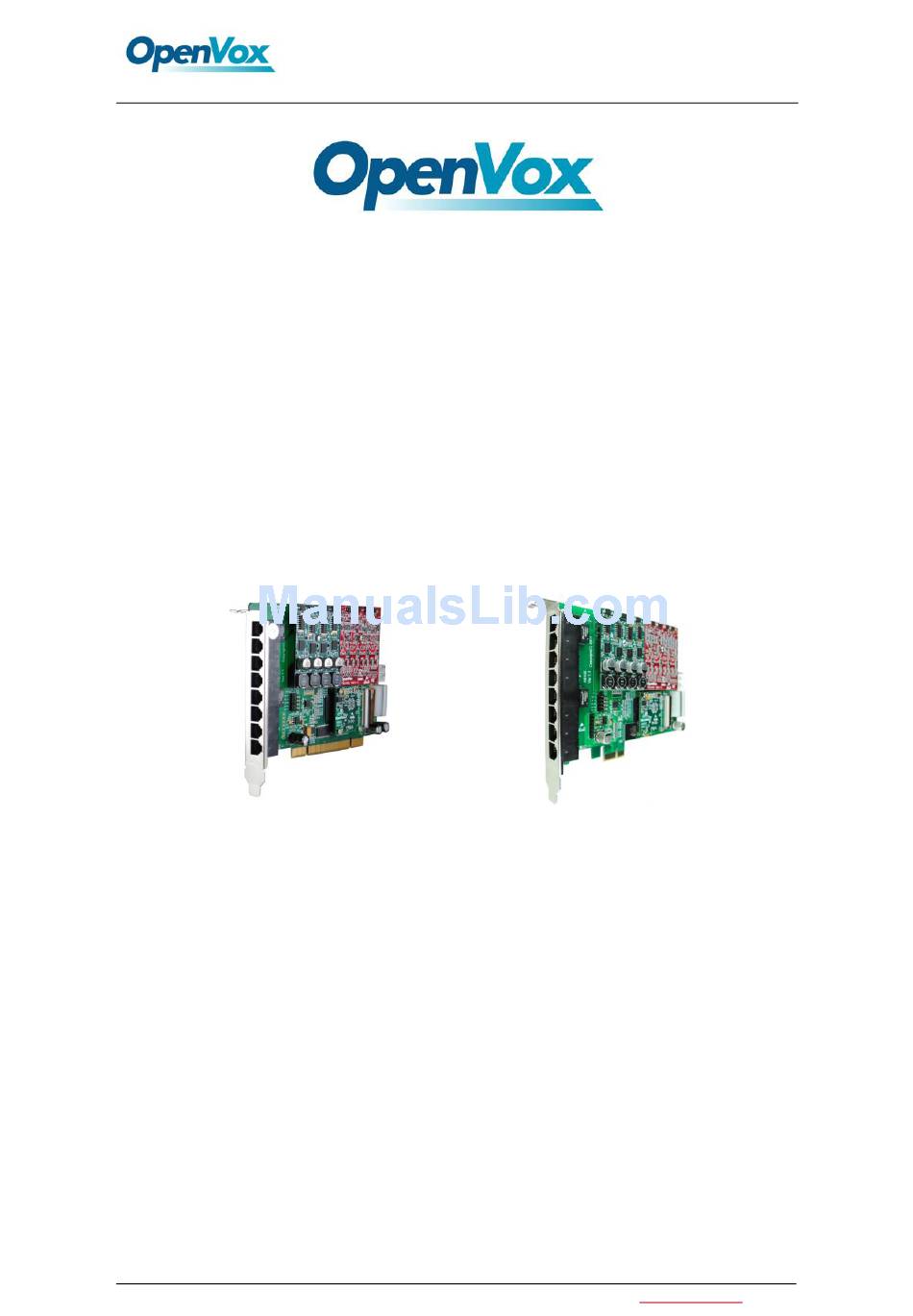

- Page 1 User Manual 深圳开源通信有限公司 OpenVox-Best Cost Effective Asterisk Cards OpenVox A810E/A810P/AE810E/AE810P User Manual A810P/A810E Date:05/26/2011 Version: 1.3 OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 2: Port
Address: F/3, Block No.127, Jindi Industrial Zone, Shazui Road, Futian district, ShenZhen, Guangdong 518048, China Tel:+86-755-82535095,82535461,Fax:+86-755-82535174 E-Mail：sales@openvox.cn support@openvox.cn M for Technical Support: support@openvox.cn Business Hours: 9:00AM-18:00PM from Monday-Friday URL：www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. Limited. URL: www.openvox.cn... -
Page 3: Table Of Contents
User Manual Table of Contents 1. Overview ....................4 1.1 What is A810P/A810E ..................4 1.2 What is Asterisk: ....................5 2. Hardware Setting ..................6 3. Software Installation and Configuration ............7 3.1 Download asterisk, dahdi, driver and firmware........7 3.2 Modify the configure files................ -
Page 4: Overview
A810P/A810E is a modular analog telephony interface product. AE810P/AE810E is A810P/A810E with EC module. It is designed to build IP PBX. A810P/AE810P or A810E/AE810E must be used with FXO-400 or FXS-400 together to build a workable system. AE810P/AE810E has EC module, which must be used with FX0-400 or FXS-400 together. -
Page 5: What Is Asterisk
Asterisk provides Voicemail services with Directory, Call Conferencing, Interactive Voice Response, Call Queuing. It has support for three-way calling, caller ID services, ADSI, IAX, SIP, H.323 (as both client and gateway), MGCP (call manager only) and SCCP/Skinny(voip-info.org). OpenVox Communication Co. Limited. URL: www.openvox.cn... -
Page 6: Hardware Setting
User Manual 2. Hardware Setting To set the A810P/AE810P, user MUST go through these steps: 1. Checking power supply: Board must be provided power, please plug the power supply cable into power supply connector. Otherwise, you will not be able to use. (refer... -
Page 7: Software Installation And Configuration
User Manual 3. Software Installation and Configuration A810P/AE810P supports dahdi software device driver on Linux. To use A810P/AE810P, user must download, edit, install and configure dahdi and asterisk. 3.1 Download asterisk, dahdi, driver and firmware 1. Download asterisk from www.asterisk.org Right here, take asterisk-1.8.0 for an example:... - Page 8 PCI.pm. Figure 6: PCI.pm screenshot E. Forward to directory /usr/src/dahdi-tools-xxx/xpp/perl_modules/Dahid, and modify file Chans.pm like this: Figure 7: Chans.pm screenshot F. Forward to directory /usr/src/dahdi-tools-xxx, and add the following info to file OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 9: Installation
// make sure the version is higher than 4.0 rpm -q gcc-c++ rpm –q libxml2 If any of those packages are not installed, please install them by using yum. yum install bison yum install bison-devel yum install ncurses yum install ncurses-devel OpenVox Communication Co. Limited. URL: www.openvox.cn... - Page 10 User can install the driver via the following steps (assuming user has the source code of dahdi device driver installed in /usr/src/dahdi-2.2.XX directory): lspci –vvvvv 1. Checking the A810P/AE810P hardware by command: From the following, user can see that there is a device called communication controller interface be found.
-
Page 11: Configure
Execute command to check if you have made the EC module worked. If user uses AE810P/AE810E, from figure 11 below, user will be able to see EC module been detected system. OpenVox Communication Co. Limited. URL: www.openvox.cn... - Page 12 If users use AE810P, please set echo_can to none as following: echo_can none If users use A810P, just ignore that step above. Then run these commands: dahdi_genconf dahdi_cfg –vvvv The output might be the same as the following: OpenVox Communication Co.
- Page 13 User Manual Figure 12: dahdi_cfg –vvvv screenshot The command dahdi_genconf will automatically generate the system.conf under directory /etc/dahdi and dahdi-channels.conf under /etc/asterisk. Please check the setting of system.conf, it looks like the following: OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 14: Port
"#include dahdi-channels.conf" >> /etc/asterisk/chan_dahdi.conf Make sure that the context in dahdi-channels.conf should exist in extensions.conf. File dahdi-channels.conf should look like as the following: FXO ports use FXS signaling, the configure file looks like this: OpenVox Communication Co. Limited. URL: www.openvox.cn... - Page 15 Checking the dahdi channel loading from asterisk console: asterisk –vvvvvvvgc dahdi show channels Entering asterisk console, run command: . If dahdi channels can be shown, which means the dahdi channels have been loaded into asterisk. OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 16 When user makes an outbound call, CLI will show as the following: Figure 18: outbound call The status of channel looks like the following. If user uses AE810P, EC Status of active channel should be ON; otherwise it would be OFF. OpenVox Communication Co. Limited. URL: www.openvox.cn...
- Page 17 Notes: User can use command cat /proc/interrupts to confirm A810P/AE810P has independent IRQ. If A810P/AE810P shares IRQ with other device. To avoid IRQ conflict, A810P/AE810P enable user to adjust pin number when update firmware, please refer this manual for more details.
- Page 18 User Manual Test environments are: CentOS-5.6 Kernel version: 2.6.18-238.el5 Dahdi: dahdi-linux-complete-2.4.0+2.4.0 Asterisk: 1.8.0 Hardware: OpenVox A810P/AE810P OpenVox Communication Co. Limited. URL: www.openvox.cn...
-
Page 19: References
User Manual 4. References www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com OpenVox Communication Co. Limited. URL: www.openvox.cn...
