Summary of Contents for OpenVox A400E on DAHDI

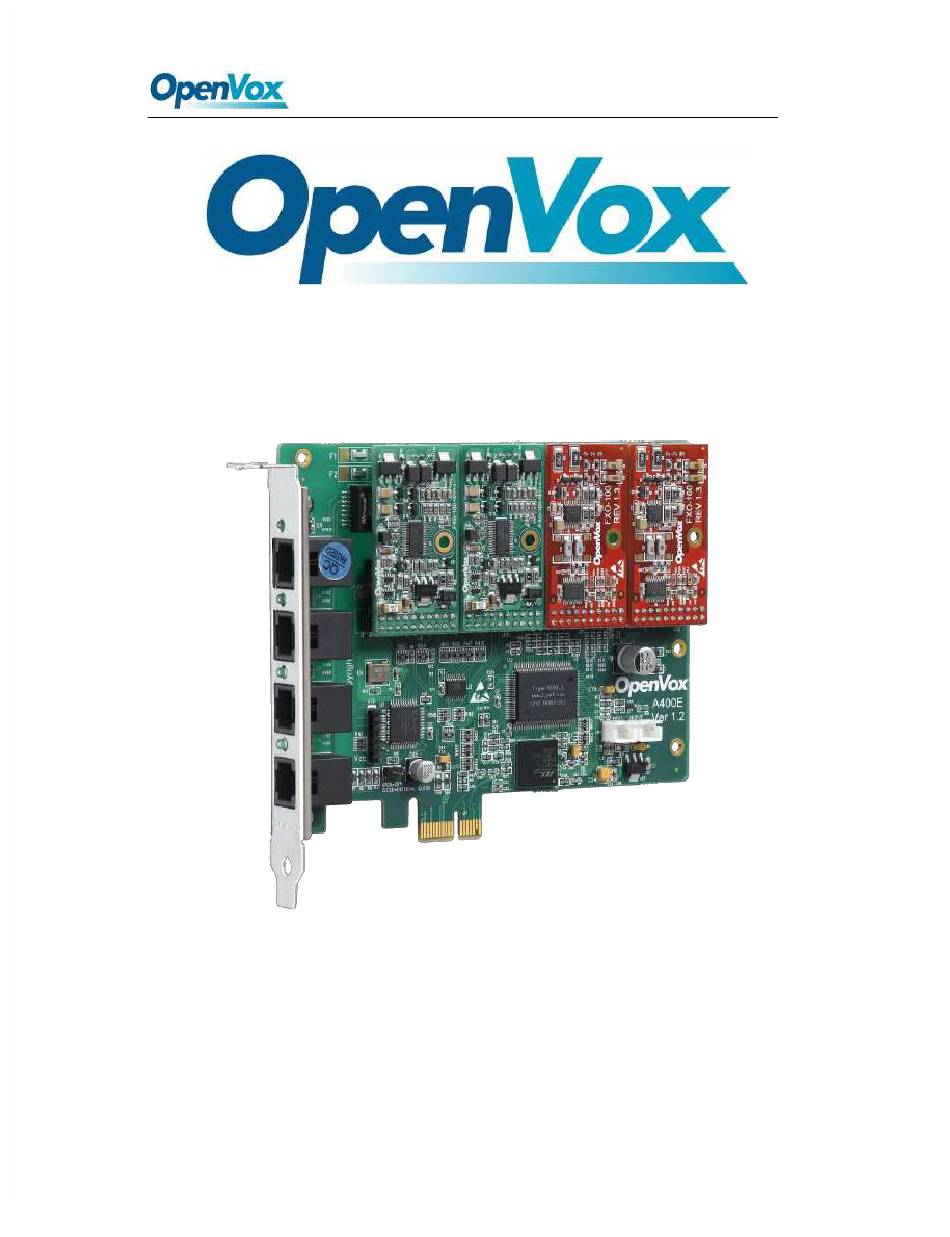

- Page 1 A400E on DAHDI User Manual A400E on DAHDI User Manual OpenVox Communication Co.Ltd OpenVox Communication Co.Ltd A400E on DAHDI User Manual A400E on DAHDI User Manual Version: 2.2 Version: 2.2...
- Page 2 A400E on DAHDI User Manual A400E on DAHDI User Manual OpenVox Communication Co.Ltd OpenVox Communication Co.Ltd Ope e nV nVo o x x - - B B e e st st C C o o st st E E ff ffe e ct cti i v v e e A A st ste e r r i i sk sk C C a a r r d d s s...
- Page 3 A400E on DAHDI User Manual Copyright © Copyright 2011 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permiss ion. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc.
-
Page 4: Table Of Contents
A400E on DAHDI User Manual Contents General Safety Instructions ..................4 Test Environme nts ....................... 5 Chapter 1 Overview ..................... 6 1.1 What is Asterisk ....................6 1.2 What is A400E ....................7 Chapter 2 Hardware Setup ..................10 2.1 Power supply....................10 2.2 Slot compatibility .................... -
Page 5: General Safety Instructions
A400E on DAHDI User Manual General Safety Instructions CAUTION The computers that have A400E card installed must comply with the country s specific safety regulations. ’ Only service personnel should go to install A400E card. Before installing A400E card, please unplug the power cord and remove the cover from your PC . -
Page 6: Test Environments
A400E on DAHDI User Manual Test Environments CentOS-5.6 Kernel version: 2.6.18-238.12.1.el5 DAHDI: dahdi-linux-complete-current Asterisk: 1.8.0 Hardware: OpenVox A400E... -
Page 7: 3.3 Configuration
A400E on DAHDI User Manual # make install # make samples " make samples " will install the standard sample configuration file in the directory /etc/asterisk. As a freshman, you should perform make samples, that is to say, it is unnecessary to perform make samples every time. Because once performed, it will cover the old sample configuration files you have... - Page 8 A400E on DAHDI User Manual " " " " wctdm is the driver module name of A400E. opermode applies to FXO port and is invalid for FXS port, and you are allowed to take place " CHINA " to other mode name which is available in the file: ../dahdi-linux-XX/linux/drivers/dahdi/fxo_modules.h...
- Page 9 A400E on DAHDI User Manual # Span 1: WCTDM/4 "Wildcard TDM400P REV E/F Board 5" (MASTER) fxoks=1 fxoks=2 fxsks=3 fxsks=4 # Global data loadzone = us defaultzone = us Figure 6 A part of system.conf 2. Country mode modification In order to match your country pattern, you need to change parameters loadzone and defaultzone to your country.
- Page 10 A400E on DAHDI User Manual A part of file /etc/asterisk/dahdi-channels.conf is showed as below. (Modification, if it is not agree with the hardware setup) span 1: WCTDM/4 "Wildcard TDM400P REV E/F Board 5" (MASTER) ;;; line="1 WCTDM/4/0 FXOKS" signalling=fxo_ks callerid="Channel 1" <4001> ...
-
Page 11: Chapter 4 Reference
A400E on DAHDI User Manual Chapter 4 Reference www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com Tips Any questions during installation please consult in our forum or look up for answers from the following websites: Forum wiki... -
Page 12: Appendix A Specifications
A400E on DAHDI User Manual Appendix A Specifications • Weight and size Weight: 89g (3.14oz) Size: 13.8×11.1×1.8cm (5.43×4.37×0.71 inch) • Interfaces PCI-E Bus: Be compatible with PCI-E ×1, ×2, ×4, ×8, ×16 Power Supply Connect: 12V 4-pin connector (When any FXS modules... -
Page 13: Appendix B Pin Assignments
A400E on DAHDI User Manual Appendix B PIN Assignments Either 4-pin or 6-pin RJ11 port is compatible with A400E, let’s illustrate pin assignments of RJ11 port by the following tables. 4-pin RJ11 port 4-pin RJ11 port Description Not used Ring...
