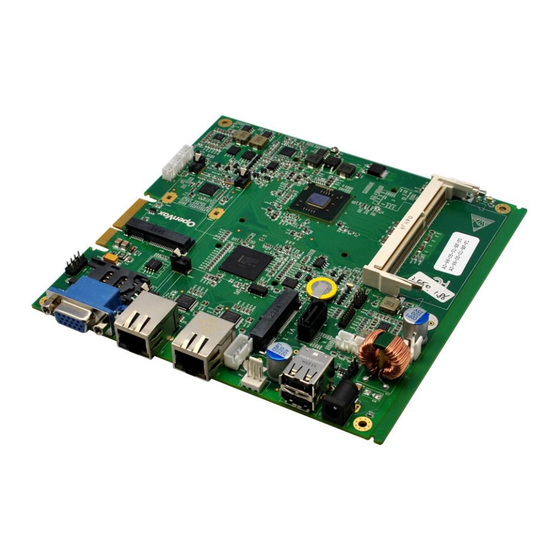

- Page 1 IPC120 User Manual Atom Fanless CPU boards Hardware Version:V1.0 Guide Version: V1.0...
- Page 2 Copyright © Copyright 2012 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Inc.
-
Page 3: Compliance Information
Compliance information EMI and EMS For FCC, IPC120 has been tested as a CPU board, installed in an enclosure, with the top cover removed. No further testing should be required if the board is used with other FCC tested modular components. Please see http://www.fcc.gov/oet/ for more details. -
Page 4: Chapter 1 Overview
Integrated up to 2 Ethernet, IPC120 provide a flexible application for customer. A typical PBX application is attaching OpenVox PCIe voice card by ACC1008 to build total solution for little company communication. - Page 5 Power dissipation: ~7.8W (Minimum Power Dissipation) Ordering information Standard available options: Name Function Operating Temperature IPC120B N2600/2*Gigabit LAN/1 PCIe 0° C to 60° C IPC120C D2500/2*Gigabit LAN/1 PCIe 0° C to 60° C IPC120D D2550/2*Gigabit LAN/1 PCIe 0° C to 60° C www.openvox.cn...
-
Page 6: Chapter 2 Hardware Compatibility
Chapter 2 Hardware Compatibility Mini PCIe slot: IPC120 MiniPCIe slot has been tested by following device: HuaWei EM770W 3G Module (HSPA) Ralink RT3090 wifi card PCIe Golden Finger: (By OpenVox PCIe2PCIe Converter) OpenVox A400E voice card OpenVox B400E voice card... -
Page 7: Chapter 3 Ipc120 Connector And Jumper
Chapter 3 IPC120 Connector and Jumper 1. Layout 2. Connector and Jumper List Name Function VGA1 VGA display output CN10 PCIe x4 Golden Finger Clear CMOS CN15 Main Power in Jacket CN16 Power Supply Jacket DDR3 Memory Slot CN11 mSATA Slot... -
Page 8: System Status Indicator
GPO use LED16 GPO use GPI use 4. Connector and Jumper Description JP1 clear CMOS Setting Function Close 1-2 Clear CMOS Open 1-2 (default) Normal CN15 Main Power Jacket DC in @12V Name CN16 Power Supply Jacket DC out @12V www.openvox.cn... - Page 9 ATOM N2600 CPU Support Max Memory Size 2GB of DRAM ATOM D2550 CPU Support Max Memory Size 4GB of DRAM CN13 Mini PCIe Slot Attach 3G SIM card to CN14, and attach Mini PCIe 3G module to CN13， implement 3G function for IPC120. www.openvox.cn...
- Page 10 CN5 SATA Interface Name Ground Transmit + Transmit - Ground Receive - Receive + Ground CN4 SATA Power Supply Name Ground Ground CN8 USB Port 2 USB2.0 ports. 500 mA Continuous Current per Channel. Short-Circuit and Thermal Protection with Overcurrent Logic. www.openvox.cn...
- Page 11 Name Name Data- Data- Data+ Data+ Ground Ground CN9 USB connector Name Data- Data+ Ground CN18 USB connector Name Name Ground Data- Data+ Data+ Data- Ground CN1 LPC Interface Name Name LPC_CLK SERIRQ +3.3V FRAME# 48MHz_CLK www.openvox.cn...
- Page 12 JP5 Manual Reset In Setting Function Close 1-2 Reset System Open 1-2 (default) Normal CN6 External LEDs and GPIO 2*4*2.0mm header 3.3V 200mA max CMOS output Name Name LED1P (3.3V) LED1N LED2P(3.3V) LED2N LED3P(3.3V) LED3N GPIO www.openvox.cn...
-
Page 13: Chapter 4 System Status Leds Indicator & Sw1
CN6 7-8pin GPIO As output 1. Clear 500H+0DH, bit13, means direction is output 2. Set 500H+0DH, bit13 ,CN6 7pin will be changed to 1 (High level) 3. Clear 500H+0DH, bit13 ,CN6 7pinwill be changed to 0 (low level) As input www.openvox.cn... - Page 14 1. Set 500H+0DH, bit13, means direction is input 2. CN6 7Pin input 1 (High level), then 500H+0DH, bit13 will be changed to 1 3. CN6 7pin input 0 (Low level), then 500H+0DH, bit13 will be changed to 0 www.openvox.cn...
-
Page 15: Chapter 5 Bios Setup Guide
Enter Boot menu – >CSM Parameters Options b. Highlight PXE OpROM control, press enter key, system will prompt as following: Legacy only Options enable PXE, Other options disable. c. Enter “exit” menu, then highlight “save changes and exit” item, answer ok to confirm the latest www.openvox.cn... - Page 16 OpenVox Communication Co.Ltd Address: F/3, Building No.127, Jindi Industrial Zone, Shazui Road, Futian District, Shenzhen, Guangdong 518048, China Tel:+86-755-82535461, 82535095, 82535362, Fax:+86-755-83823074 Business Contact: sales@openvox.com.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn www.openvox.cn...
- Page 17 Thank You for Choosing OpenVox Products! www.openvox.cn...
