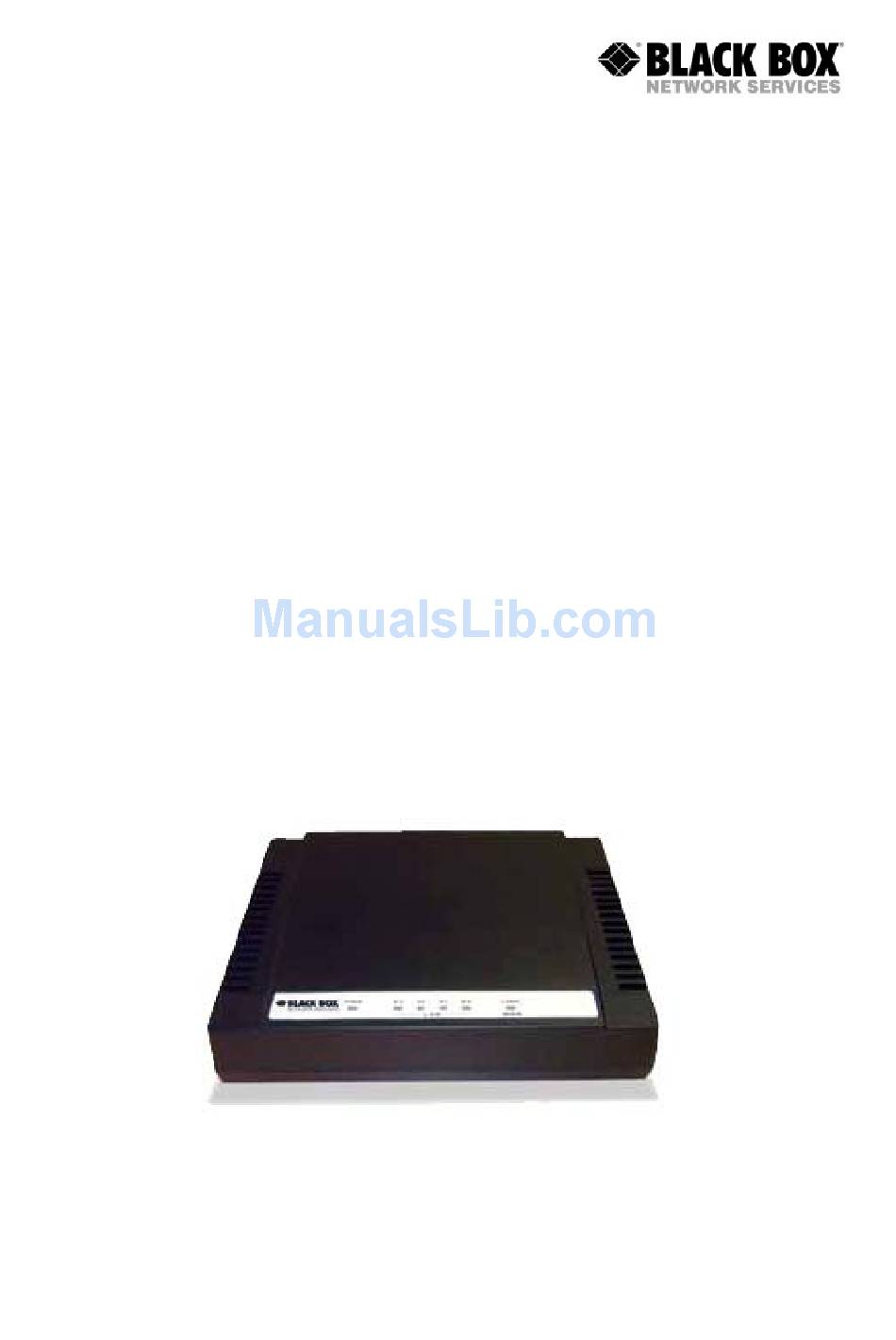

Manual of VDSL2 Solution
http://www.black-box.eu
_____________________________________________________________________________
Manual
MEG201AE
VDSL2 Ethernet Extender Kit
VDSL2 Point to Point Solution
Consisting of 1xTransmitter and 1xReceiver
MEG201RAE
VDSL2 Receiver
Part of VDSL2 Point to Multipoint Solution
used with VDSL2 Switch MEG821AE
MEG201TAE
VDSL2 Transmitter
Advertisement
Related Manuals for Black Box MEG201AE
Summary of Contents for Black Box MEG201AE
- Page 1 Manual of VDSL2 Solution http://www.black-box.eu _____________________________________________________________________________ Manual MEG201AE VDSL2 Ethernet Extender Kit VDSL2 Point to Point Solution Consisting of 1xTransmitter and 1xReceiver MEG201RAE VDSL2 Receiver Part of VDSL2 Point to Multipoint Solution used with VDSL2 Switch MEG821AE MEG201TAE VDSL2 Transmitter...
- Page 2 _____________________________________________________________________________ OVERVIEW MEG201AE works as a transparent point to point Bridge for Ethernet and/or Telephony connections using a Transmitter and a Receiver. When used with the VDSL2 switch MEG821AE it is a Multipoint to Point solution. The MEG201AE uses new VDSL2 technology operating at different frequency bands with the feature to adapt its performance to the characteristics of the copper medium used.
- Page 3 MEG201AE features an integrated 4 Port 10/100 Switch. Because of the switch please consider that some non standard Ethernet Frames will not pass MEG201AE. MEG201AE is configured by Web management. The serial port is intended to be used by support staff with technical skills only. The standard IP addresses of the MEG201AE...
- Page 4 Blinking while other side found and connection is being established Steady On while VDSL Link valid Note: Pictures in the manual mainly show the modem in white. Thanks to the features of digital photography. Of course MEG201AE is black and is only available in black.
-
Page 5: Installation
For wire lengths within the distance limits previously mentioned (<900m), the system will automatically establish the Link and set itself up. The MEG201AE is built using a switching chipset and so some special Ethernet Frames will not pass across the VDSL Link. - Page 6 _____________________________________________________________________________ CONFIGURING BY WEB The MEG201AE can be configured by using a Web browser. The modems have default IP addresses and to use the Web Configuration method you need a PC within the same subnet as the default IP addresses of MEG201AE.
- Page 7 Manual of VDSL2 Solution http://www.black-box.eu _____________________________________________________________________________ As you can see the Receiver offers you more options to configure. This is because you can use the Receiver as an ADSL2+ Modem to be used with your incoming Internet Service Provider Line as well as a point to point solution. Since the purpose of this manual is to describe setup for your VDSL2 link please leave the options for WAN/NAT/Firewall/Route and uPnP unchanged! SYSTEM...
- Page 8 Profile 8d, Annex A M1_EU32, Filter Off and Tone Mode B43 for Long Distance Bands Config Let you configure special frequencies to be used. Do not make any changes unless specifically advised by Black Box! LoopBack Enable LoopBack Functions for Testing...
- Page 9 If the MEG201AE has been powered up already you will see a prompt by hitting the ENTER key: If you have not powered up MEG201AE, please do so and wait until the boot process is finished. The boot process finishes with the following (for the Transmitter, the Receiver...
- Page 10 Sometimes it may be necessary to use the Serial Bootmenu. Please check with Black Box Tech Support before you attempting to do so. While powering up the MEG201AE you can stop the boot process while this message is displayed. Press SPACE three times to enter the boot menu then: Press <space>...
-
Page 11: Firmware Upgrade
Is intended to be used with the Receiver only. Avoid using any firmware file that sounds or looks like it is suitable for MEG201AE. Use only firmware files you retrieved yourself from our website or have been mailed to you by Black Box personnel. -
Page 12: How To Change Ip Address
Manual of VDSL2 Solution http://www.black-box.eu _____________________________________________________________________________ HOW TO CHANGE IP ADDRESS Option A: Using Default IP address Set your PC address to IP address 192.168.16.1 Start your Browser Go to URL 192.168.16.249 Login with password Click on Advanced Setup (top right) Click on LAN (on the left) Click on LAN settings (showing up below LAN) Enter the IP address of your choice... -
Page 13: Troubleshooting
Routing just by using the VDSL Extender Set PoE to provide power or to get power from modems (If you require this, call Black Box for information on MPG101AE-R2) Using with Black Box DTX5000 System ISDN BRI/PRI/S0 or E1/G703 transmission by POTS port... - Page 14 What can I do if my line is too long? Often there are different routes to get to the “other side”. Try to find out if there is a shorter or better quality alternative. If not, Black Box has other xDSL devices that will provide long distance connection.
- Page 15 Storage Temperature: -20°C ~ 65°C (-4F ~ 149F) => Humidity: 10 to 90% (non-condensing) => Dimensions: 184 x 146 x 40 mm (7.2" x 5.74" x 1.57"). Available Accessories: MEG201AE VDSL2 Extender Set (1xTransmitter, 1xReceiver) MEG201TAE VDSL2 Transmitter MEG201RAE VDSL2 Receiver...
- Page 16 Manual of VDSL2 Solution http://www.black-box.eu _____________________________________________________________________________...
