Manual of MEG101AE-R2 and MEG101RAE-R2
http://www.black-box.eu
_____________________________________________________________________________________________
Manual

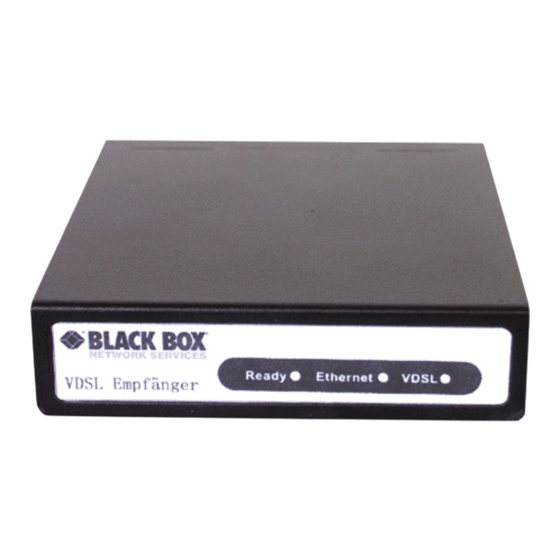

MEG101AE-R2
Quadband VDSL Extender Kit
MEG101RAE-R2
Quadband VDSL Receiver
______________________________________________________________________________
Advertisement
Table of Contents
Related Manuals for Black Box MEG101AE-R2
Summary of Contents for Black Box MEG101AE-R2
- Page 1 Manual of MEG101AE-R2 and MEG101RAE-R2 http://www.black-box.eu _____________________________________________________________________________________________ Manual MEG101AE-R2 Quadband VDSL Extender Kit MEG101RAE-R2 Quadband VDSL Receiver ______________________________________________________________________________...
- Page 2 Manual of MEG101AE-R2 and MEG101RAE-R2 http://www.black-box.eu _____________________________________________________________________________________________ VDSL Point to Point Solution (MEG101AE-R2) MEG101AE-R2 works as transparent Ethernet and/or telephony point to point bridge. MEG101AE-R2 uses QAM-based 4-band VDSL technologies, which supports max distances: 1.9Km(6333ft) at 5M/5M 1.3Km(4333ft) at 15M/15M 800m(2666ft) at 25M/25M The front-panel provides LED indications of system and interface status.
- Page 3 Central Europe only (220V). It supplies 5V@1A. For use in USA, Japan, Australia and UK please use Black Box power supply PS649-R2 for the Transmitter and the Receiver. PS649-R2/4 is available to power 4 of these units with one power supply.
- Page 4 Manual of MEG101AE-R2 and MEG101RAE-R2 http://www.black-box.eu _____________________________________________________________________________________________ General Rules Before making any connections to the Modem, note the following rules: Ethernet Port (RJ-45) All network connections to the Modem Ethernet port must be made using Category 5, 5e or 6. No more than 100 meters of cabling may be used between the MUX or HUB and an end node.
- Page 5 The Modem has one Ethernet port which supports connections to Ethernet devices like NICs, Switches, bridges or routers. You can also connect to another MEG101AE-R2´s Ethernet port for daisy chaining. The RJ11 Line port is used to connect to the “other side” through your telephony wall socket (outlet).
- Page 6 Manual of MEG101AE-R2 and MEG101RAE-R2 http://www.black-box.eu _____________________________________________________________________________________________ Hardware Description Front Indicators PWR (Power LED) Steady Green It will light up (ON) to show that the product is powered up. E (Ethernet LED) Steady Green or Flashing It will light up when there is an active and valid Ethernet Link.
- Page 7 Often there are different routes to get to the “other side”. Try to find out if there is one. If not, Black Box has other xDSL devices that will make you happy. Please check MDS932AE-10BT-R2, MDS952AE-10BT and/or MDS5110AE to be the an alternative for your application by calling your Black Box office .
- Page 8 Manual of MEG101AE-R2 and MEG101RAE-R2 http://www.black-box.eu _____________________________________________________________________________________________ Product Features & Specification ● Supports plug & play, you don’t need to do any setting ● Compliant with IEEE802.3 10BASE-T standard. ● Compliant with IEEE802.3u 100BASE-TX standard. ● Compliant with ETSI, ITU, ANSI standards ●...
