- Page 1 Boost-EQ Clean boost / parametric EQ guitar effect pedal User Manual v1.00 • December 22, 2007 Boost-EQ user manual v1.00...
- Page 2 EQ as usual in the Compressor chain. The next step in the Boost-EQ evolution was the decision to take the J-Drive MK3 clean boost circuit and couple that directly with the tilt EQ. This became the first officially an- nounced Boost-EQ (it had a large paddle ‘EQ defeat’...

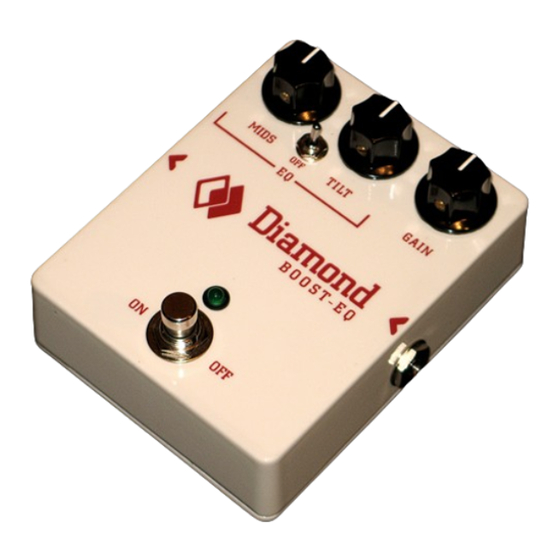

- Page 3 • genuine Hammond cast aluminum 4.7 x 3.7 x 1.1 inch case CONTROLS The Boost-EQ is a very simple pedal - a clean boost with a simple gain control, and a two-control parametric EQ section that can be toggled on or off.
- Page 4 POWERING BATTERY The Boost-EQ comes standard with a 9V battery, and with its approximate 13 mA of cur- rent draw, can operate for 25 hours or more from a standard alkaline cell. Changing the 9V battery first requires the removal of the four back corner screws of the pedal.
