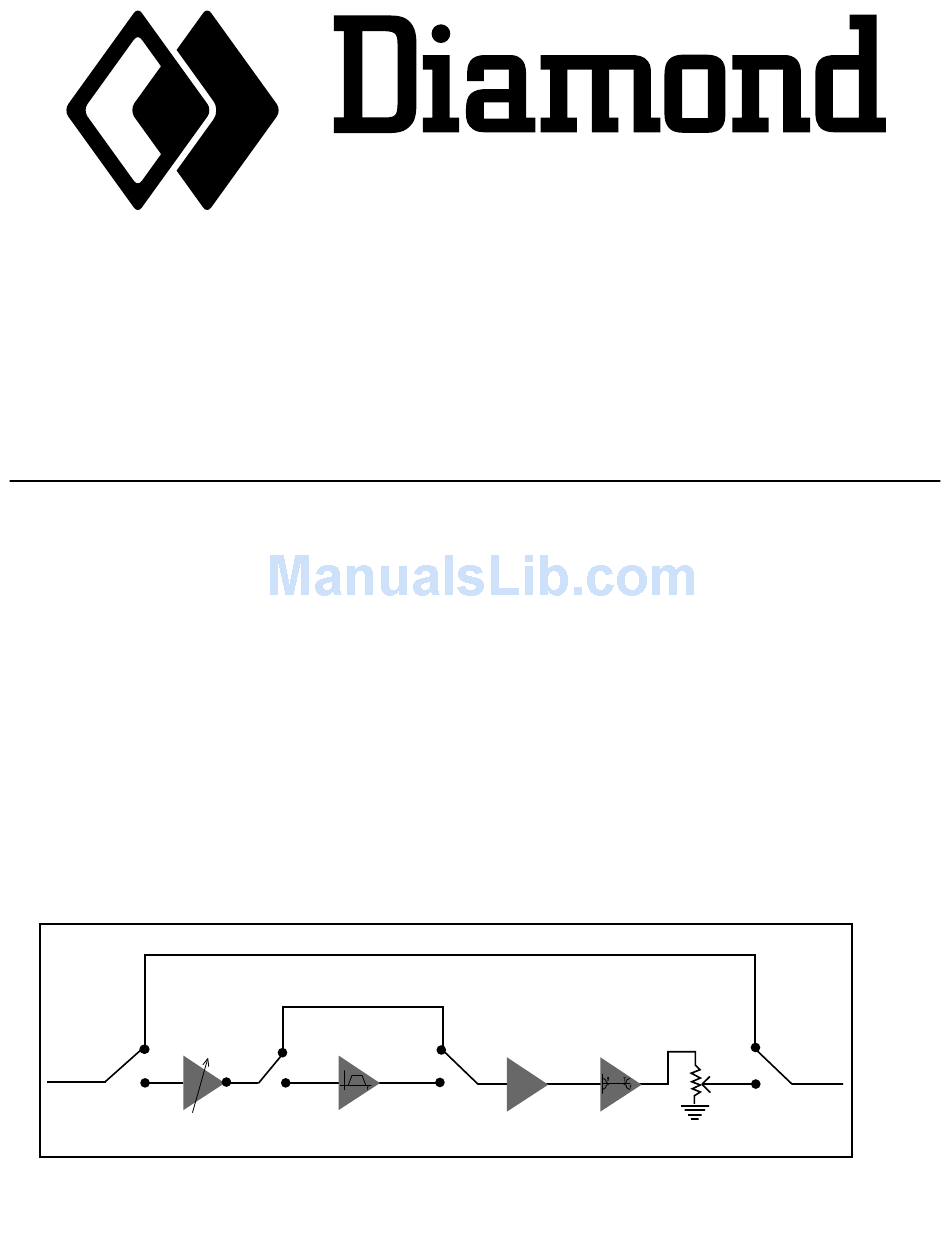

F I R E B U R S T

Thanks for purchasing a Diamond Fireburst!

We hope you have as much fun playing guitar through this pedal as we did designing

and testing it. Our goal is to provide a new twist on higher gain guitar tone, and to make

it just plain fun to play.

Remember to protect your hearing and wear appropriate hearing protection when play-

ing loud...

Design Features

True bypass signal path.

Footswitchable between thick liquid fuzz and focused, mid-boosted distortion.

Premium audio components, including 2% polypropylene capacitors and 1% metal ﬁlm

resistors.

All discrete-component distortion and mid-boost circuit.

Active Baxandall bass/treble tone control system with audiophile grade op-amp.

Battery or standard negative tip 9V DC adapter operation.

��

Need help?

Do you have a question about the Fireburst and is the answer not in the manual?

Page 1 F I R E B U R S T Thanks for purchasing a Diamond Fireburst! We hope you have as much fun playing guitar through this pedal as we did designing and testing it. Our goal is to provide a new twist on higher gain guitar tone, and to make it just plain fun to play.
Page 2 Controls Gain This controls the overall distortion level. Backing it off all the way gives a mild distorted sound, while opening it up moves it quickly into a thickly saturated fuzz/distortion. As you move the gain past 12 o’clock you’ll notice that the low end also begins to build in strength. The mid-boost footswitch can be further used to switch between this deep fuzz and a much more focused dis- tortion sound.
Page 3 Warranty Diamond Pedals carry a full ﬁve year warranty on registered products - make sure to send us your warranty card! The warranty is simple - if you have a problem, call us, send us the pedal if necessary, and we’ll make it right.
Page 4 Suggested Settings The pedal has been designed to give great tone with all four controls at the 12 noon po- sition. Here are some other settings that we’ve had fun with..Gettin Dizzy For that high gain garage band sound. Try the mid-boost on or off.
