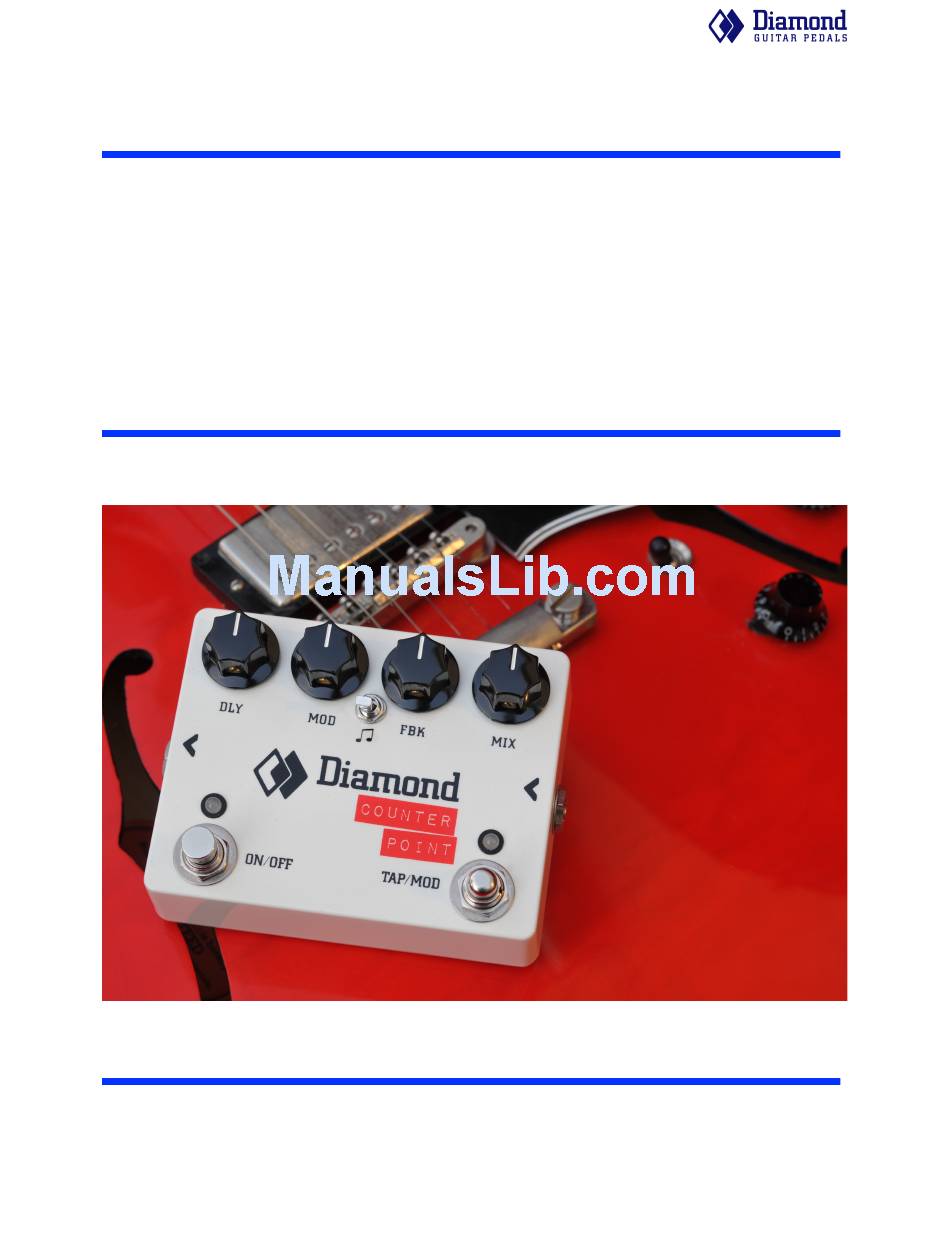

- Page 1 " Counter Point Multitap delay User Manual v1.0 • Jan 19, 2015 " Counter Point user manual v1.0 " 1...
- Page 2 Diamond. We hope you’ll enjoy using this pedal as much as we have enjoyed designing it. * well, almost no manipulation at all..in the Counter Point there is a tiny bit of simple signal processing to add the multi-path delays Remember to protect your hearing and wear appropriate hearing protection when playing loud…...
- Page 3 • compact Hammond 1590BB cast aluminum case (approx 4.7 x 3.7 x 1.2 inches) A NOTE ABOUT POWERING THE COUNTER POINT The Diamond Counter Point is designed to be powered from either a 9V battery*(included), standard 9V negative tip DC power adapter or from a multi pedal power supply. Current draw is rated at a maximum of 70mA.
- Page 4 *Note that switch #1 is not related to the bypass setting but to the Kill-Dry mode noted below. USING A PARALLEL FX LOOP? If you plan on using the Counter Point in a parallel FX loop and would like to control the effect mix using your amp control, we recommend setting the Counter Point to ‘Kill-Dry Mode’.
- Page 5 " CONTROLS EXPLAINED The Counter Point offers 4 major delay modes, each accessible by sequentially toggling through using the MODE toggle switch. The modes can be identified by the color of the right hand side TAP/MOD LED. The following table briefly summarizes each mode and the purpose and function of user controls when in that mode.
- Page 6 DLY knob. Since the Counter Point remembers whether you last tapped or use the DLY knob in each mode, you can set the DLY knob uniquely for the Ambient mode, then use tap to set delay times for the other modes, and it will remember each delay for that mode as you toggle through.
- Page 7 The MIX knob determines the amount of effect signal to be added to the direct signal path, ranging from none at counterclockwise, to a few dB louder than the direct signal at full clockwise. Counter Point user manual v1.0 " 7...
- Page 8 LED while tapping the TAP/MOD footswitch and obstructing the usual tempo indication TAP/MOD LED. LOW BATTERY INDICATOR Upon detection of low battery levels, the Counter Point will set both LED’s to solid yellow. MODE POWER OFF SAVE The current mode (Vintage, Galloping Eighths, Ambient, EFT) is saved to flash memory whenever changed by the MODE toggle, and will start up in the last used mode on power up.
