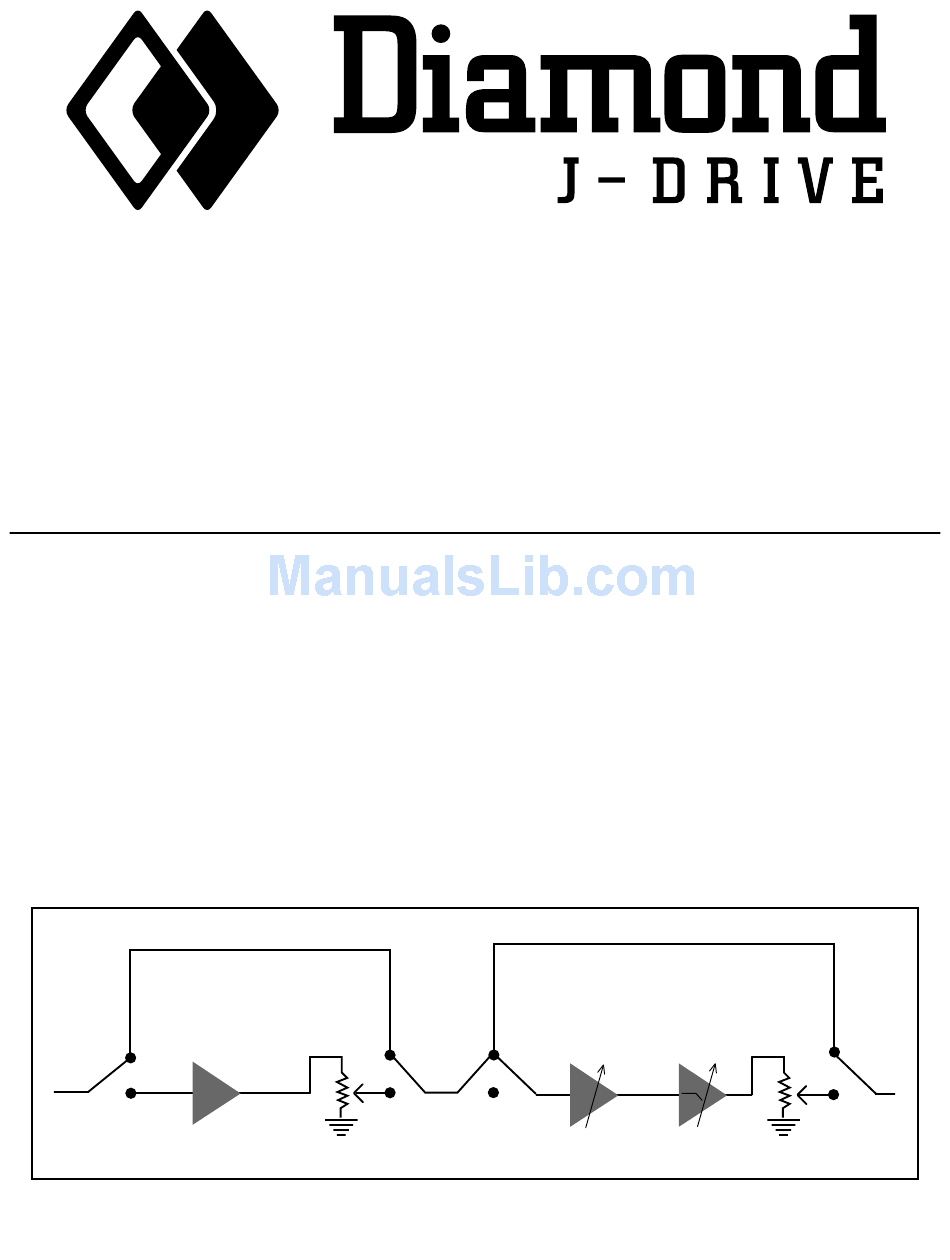

Diamond J-Drive User Manual

Table of Contents

Download this manual

Thanks for purchasing a Diamond J-Drive!

We hope you have as much fun playing guitar through this pedal as we did designing

and testing it. Our goal is to provide new twists on classic drive tone, and to make it

just plain fun to play. The J-Drive is a cool pedal - independently switchable clean boost

and overdrive functionality that lets you use the clean boost section as a lead gain stage

when the pedal is in overdrive.

Remember to protect your hearing and wear appropriate hearing protection when play-

ing loud...

Design Features

True bypass signal path

Dual function clean boost / lead boost as a separately switchable gain section

3-transistor discrete clean boost stage with high impedance JFET input, BJT gain and

class A output stage

Premium audio components, including 2% polypropylene capacitors and 1% metal ﬁlm

resistors.

Warmth control - replaces the traditional ﬁxed frequency cut/boost circuit with a variable

high-frequency cutoff ﬁlter coupled with variable low-frequency gain.

��

Table of Contents

Do you have a question about the J-Drive and is the answer not in the manual?

Page 1 Our goal is to provide new twists on classic drive tone, and to make it just plain fun to play. The J-Drive is a cool pedal - independently switchable clean boost and overdrive functionality that lets you use the clean boost section as a lead gain stage when the pedal is in overdrive.
Page 2 Switchable Diamond Drive signature raw compression or conventional overdrive com- pression/sustain. Battery or standard negative tip 9V DC adapter operation. Controls Drive This controls the basic overdrive level. Backing it off gives a mild and controlled overdrive sound, while opening it up gives more of a straight ahead distortion. Pickup output levels will also im- pact the drive level - humbuckers generally will more easily push the drive and your amp into distortion.
Page 3 Warranty Diamond Pedals carry a full ﬁve year warranty on registered products - make sure to send us your warranty card! The warranty is simple - if you have a problem, call us, send us the pedal if necessary, and we’ll make it right.
