Polygroup PRO-SERIES ABOVE GROUND RECTANGULAR QUICK SET Owner's Manual page 3

direction around the pool with all swedged parts pointing clockwise) see Fig. 1 and refer to the
"View of All Frame Assembly Parts" shown on page 5.
5. Connect the (Horizontal Beams) together pushing the button in as you insert one beam into the other
beams end. Look through the locking hole in the beam as you join them, slightly rotate the beams until
the button aligns with the hole and pops up, locking that beams end into the other beams end. Repeat
this procedure for the remaining (Horizontal Beams) making certain the holes in the beams align with
the openings in the pool sleeve Fig. 1 these holes are used for the U-Shape Pipe (end) and (side)
supports. Next install the corner pieces (again working in a clockwise direction with swedged ends
pointing clockwise), slide them together and repeat this procedure for all corners, on the last corner it
might be necessary to lift the final joining connection at and angle to allow the pipes to fit into each
other slowly lowering the ends flat again then sliding them together until it fits in completely, this step
may require two people. Now double check all (Horizontal Beam) and (Corner Piece) connections at
this time.
O-Shaped Spring
NOTE: No O-Shaped
Liner
Springs used in any
corner connections
Horizontal Beams
(LONG)
O-Shaped Spring
O-Shaped Spring
Sleeve
O-Shaped Spring
U-Shape pipe

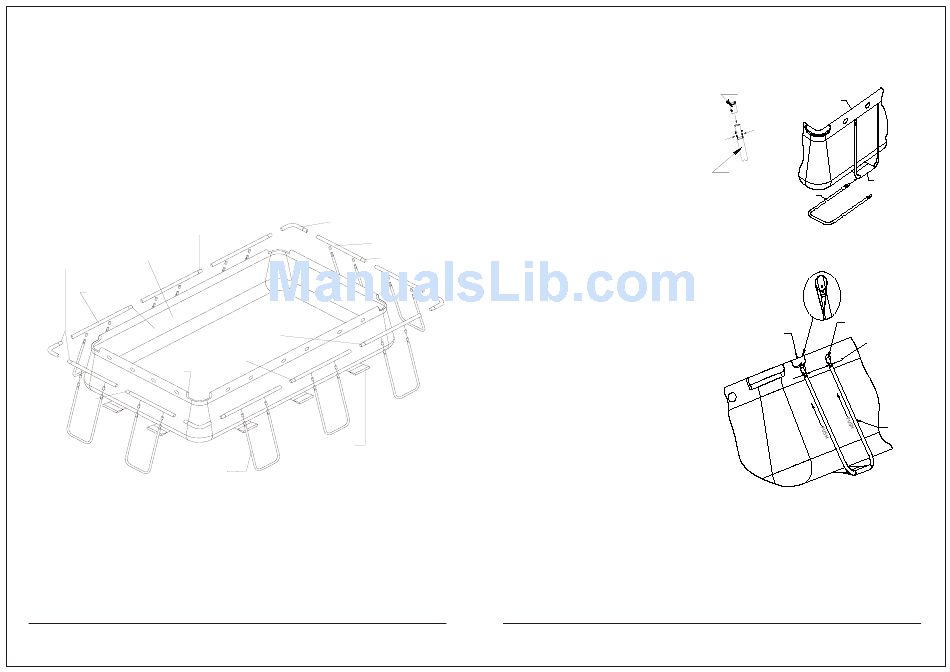

VIEW OF ALL FRAME ASSEMBLY PARTS
SHOWN OUTSIDE OF SLEEVE
Should you encounter any problems, contact the Customer Service at (888) 919-0070
from 8 AM to 5 PM Mon. thru Fri. EST. Extended operating days and hours during peak season requirements.
Compliments of www.poolsandstuff.com
Corner Piece
Horizontal Beams
(SHORT)
O-Shaped Spring
O-Shaped Spring
Rectangular flap
6
5
3. Now locate the (U-Shape) pipe frames. Each end of the (U-Shape) pipe will have a cap to be installed on
it.Locate the pipe caps and install those, push the buttons in as you insert the cap onto the pipes end
Fig. 3. Look through the holes in the cap as you install
it and slightly rotate the cap until the
buttons align with the holes and pop up,
locking the cap onto the pipes end. Now
place a (U-Shape) pipe at each of the
rectangular flaps along the base of the pool.
4. Now insert the (U-Shape) pipe sections
through the end of each rectangular flap
at the bottom of the pool Fig. 4. Note:
The ladder should be assembled prior
to raising the wall to allow helpers easy
access in and out, ladder assembly
instructions are with the ladder. Next, one or two other persons will
have to support the horizontal beam raising the pool wall from inside
the pool as another person inserts the (U-Shape) pipe supports Fig. 5. Insert the capped ends of the
(U-Shape) pipe into the holes in the horizontal beam assembly by
depressing the lower set of buttons Fig. 5 pushing
the cap end entirely into the horizontal beam until
it stops. Make sure all the (U-Shape) pipes are
inserted fully and check that all connected sections
are still securely fastened. Repeat this step for the
OPPOSITE SIDE, then install the U-Shape frame
supports at both ENDS of the pool.
5. Make sure the drain fitting is plugged securely and
the cap is in place. Start filling the pool with water.
After about 1-inch of water is on the bottom, stop
filling and smooth wrinkles out of the bottom of the
pool. Pull the wall outward at the base all around
the bottom of the pool from the outside or push
outward from inside the pool removing all
wrinkles so that it fills evenly and flat.
6. NOTE: IF MORE THAN 1-2 INCHES OF WATER
COLLECTS ON ANY ONE SIDE BEFORE THE POOL
STARTS FILLING IN THE CENTER, THE POOL IS
NOT LEVEL ENOUGH, AND MUST BE CORRECTED,
SEE "SITE PREPARATION" , PAGE 4. NOTE: THE WEIGHT OF THE WATER WILL PREVENT ANY ADJUSTMENT
AFTER THIS POINT.
7. Following the instructions under "Power Filter Installation" in the "Swimming Pool Filter System" owner's
manual, begin installing your power filter unit according to its manual.
8. Now, once this is done, continue filling the pool to the recommended level. When filling is complete
refer back to the "Swimming Pool Filter System" owner's manual, and continue through the rest of the
installation.
Should you encounter any problems, contact the Customer Service at (888) 919-0070
5 6
from 8 AM to 5 PM Mon. thru Fri. EST. Extended operating days and hours during peak season requirements.
Cap
Pool Liner Sleeve
Press In
Press In
U-Shaped
Pipe
Frame
FIG.3
U-Shape Pipe
Cap inserted
into Beam
Horizontal
Beam
Compliments of www.poolsandstuff.com
Rectangular
Flap
FIG.4
Cap on end
Press buttons
here
U-Shape
Pipe
FIG.5
