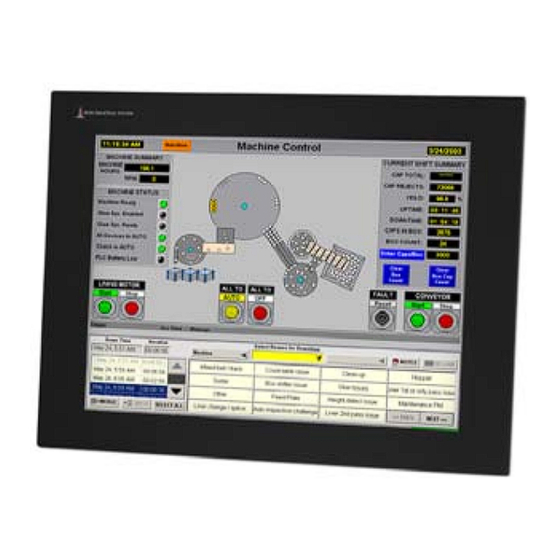

- Page 1 Hope Industrial Systems, Inc. User Manual 19” Panel Mount Industrial Monitor Model No. HIS-ML19-_ _ _D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety and Regulatory Information ............. 3 Warning ..................... 3 FCC Notice ..................3 Using the LCD Display ................. 4 Setting the Timing Mode ..............4 OSD and Power Lock Settings ............4 Adjusting the Screen Image ................. 5 Main Menu Controls .................. -
Page 3: Safety And Regulatory Information
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Any changes or modifications not expressly approved by the grantee of this device could void the user’s authori-... -
Page 4: Using The Lcd Display
Using the LCD Display Setting the Timing Mode Setting the timing mode of your computer graphics adapter (or other video source) is important for maximizing the quality of the screen image and for minimizing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and refresh rate (or vertical frequency; example 60 Hz). -
Page 5: Adjusting The Screen Image
Adjusting the Screen Image Use the buttons on the rear control panel to display and adjust the On-Screen Display (OSD) con- trols which display on the screen. Do the following to adjust the screen image: 1. To display the Main Menu, press button [1]. NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds. -
Page 6: Main Menu Controls
Main Menu Controls Adjust the menu items shown below by using the up ▲ and down ▼ buttons. Control Explanation Indicator Light The indicator light on the rear of the monitor glows blue when the display is powered on and receiving a valid video signal; yellow when the display is in power-save mode. - Page 7 Control Explanation Color Adjust provides several color adjustment modes, including preset color temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The factory setting for this product is 6500K (6500 Kelvin). o sRGB –...
- Page 8 Control Explanation Setup Menu displays the menu shown below. o Language Select allows you to choose the language used in the menus and control screens. o Resolution Notice advises of the optimal resolution to use. o OSD Position allows you to move the on-screen display menus and control screens o OSD Timeout sets the length of time an on-screen display screen is dis- played.
-
Page 9: Installation Instructions
3. Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifications of the unit. The maximum rated temperature of the HIS-ML19 is 45°C (113°F) when properly ventilated with moving air across the back of the unit– consult the factory for installation instructions when continuous 24/7 operation ex- ceeds 40°C (104°F). -
Page 10: Installation Into Panel
6. Tighten all 12 nuts to a torque of 24 inch-pounds to assure a water-tight seal between the poron bezel gasket on the monitor and equipment panel. HIS will not assume liability for damage to internal electronics due to improper installation. -
Page 11: Touchscreen Driver Installation
Touchscreen Driver Installation The enclosed CD-ROM contains documentation and drivers for all major operating systems (touchscreen models only). To assure you have the most current information, check the following Internet address: http://HISmonitors.com/Touchscreen_Drivers.htm... -
Page 12: Cleaning
Cleaning Resistive Touchscreen model Any standard glass cleaner can be used to clean the touchscreen. Always spray the glass cleaner on the cloth or towel and then clean the touchscreen. Glass cleaner sprayed directly on the moni- tor could possibly leak inside a non-sealed unit and cause damage. Vinegar or ammonia will not hurt the touchscreen. -
Page 13: Video Troubleshooting
Video Troubleshooting Blank Screen After installing the power cable and connecting video cable to a PC, the monitor displays a blank screen. • Press the power button and check to see if the power LED is lit. • If the LED is not lit, make sure the PC is powered on. Make sure all cables are connected. -
Page 14: Drawings
Drawings Front View... - Page 15 Bottom and Rear View (showing cutout dimensions)
-
Page 16: Specifications
Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 19.0” diagonal Image size 14.81” (376.32mm) x 11.87” (301.06mm) Native resolution SXGA (1280 x 1024) @ 60 Hz Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480) Pixel pitch 0.294mm (H) x 0.294 mm (V) Number of colors... -
Page 17: Compliance
Electrical Power Input 100–240 VAC, 50-60 Hz (autoswitch) Power consumption 35 watts, typical Power management DPMS/energy star, < 1W Environmental Temperature 0-45°C (consult factory for installation instructions when con- tinuous 24/7 operation exceeds 40°C) Humidity 20% to 90% non-condensing Shock 30g (1/2 sine, 11 msec.) Vibration 0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine... - Page 18 Enclosure Type Panel mount; rear collar compresses gasket against panel, held by 12 M5 studs Panel rating NEMA 12/4/4X (with proper installation) – built to IP65 stan- dards Physical Depth 2.43” (61.6 mm) behind panel maximum Bezel Powder Coated Carbon steel, black or Stainless Steel Front bezel outside di- 19.0”...
-
Page 19: Warranty Statement
