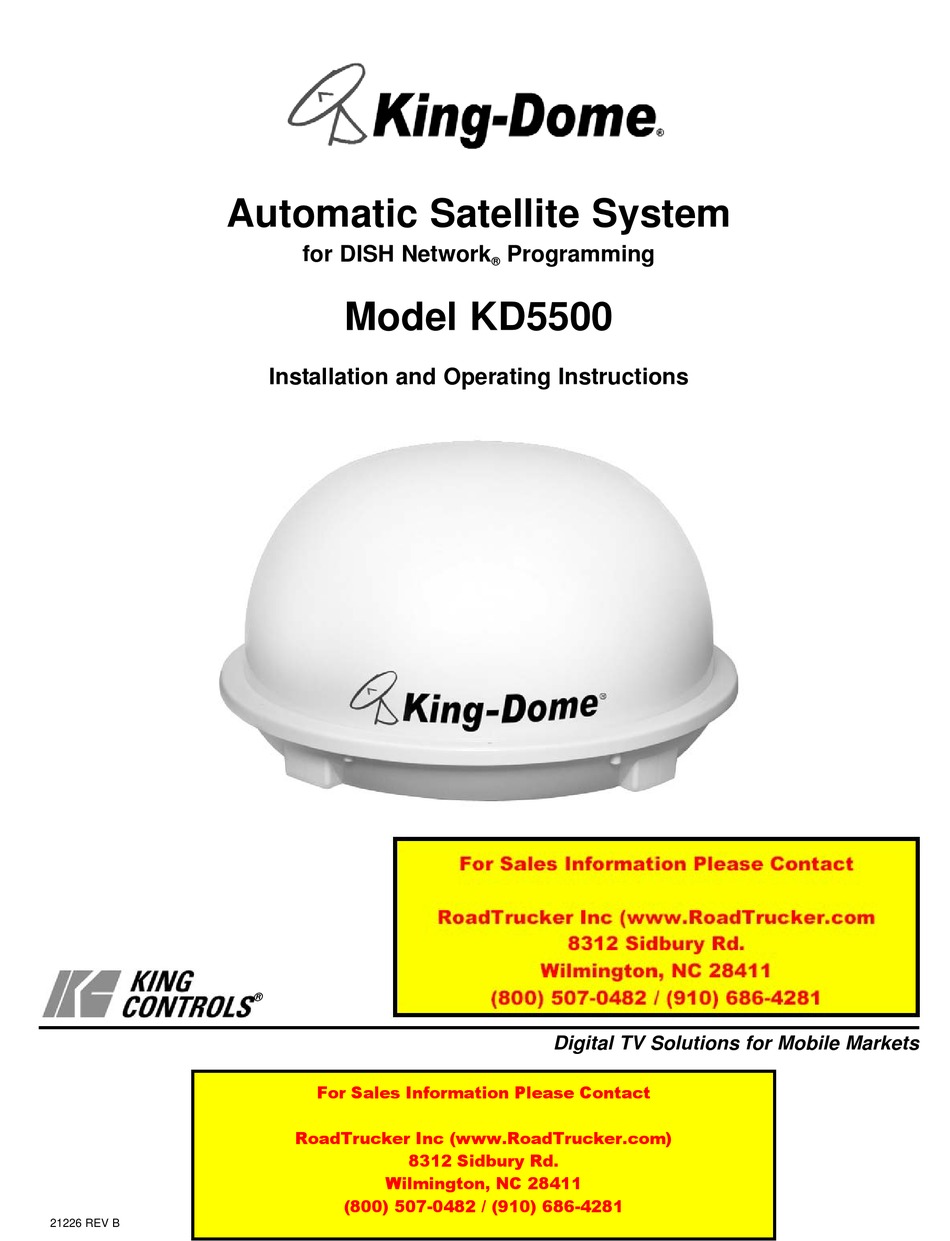

- Page 1 Automatic Satellite System for DISH Network Programming ® Model KD5500 Installation and Operating Instructions ® Digital TV Solutions for Mobile Markets For Sales Information Please Contact 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.
-
Page 2: Table Of Contents
The mobile satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your King-Dome does not operate as outlined in this manual, please call King Controls at (952) 922-6889 or visit our website at www.kingcontrols.com. -
Page 3: Introduction

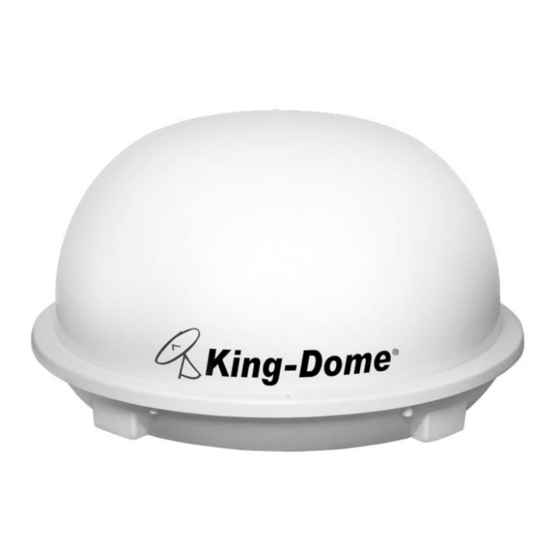

INTRODUCTION SECTION 1 The King-Dome model KD5500 Automatic Satellite System is designed for permanent, roof mounted installation on a recreational vehicle. A single coaxial cable connection between the King-Dome antenna and your DISH Network model ViP211, ViP211k or 411 receiver provides power to the automated positioning system under the dome and transmits your SD and HD satellite video signals to your receiver. -
Page 4: Wiring Diagram
WIRING DIAGRAM SECTION 2 NOTE: All components sold separately except for dome unit and main 35 foot coax. See your respective owner’s manuals for the best connections between your compatible DISH Network receiver and TV. Fig. 2 IMPORTANT! Do not over tighten coax connections. Hand tighten only. Page 3 For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd.;... -
Page 5: Installation
INSTALLATION SECTION 3 TIP: Many RVs are pre-wired for satellite with RG-6 coaxial cable. Contact the manufacturer of your RV or your local dealer to verify where the coaxial cable for satellite pre-wire is located. DOME UNIT LOCATION 1. Select an area on the roof for the dome unit and the location where the wiring will enter the vehicle through the roof to the satellite receiver inside using the following criteria: a) A shorter distance between the dome unit and the satellite receiver is most desirable. - Page 6 DOME UNIT INSTALLATION IMPORTANT! Cable connections must ALWAYS be positioned facing the rear of vehicle. 2. Place dome unit on installation location chosen using the criteria discussed in the previous section. Cable connections must be positioned facing rear of vehicle. 3.
- Page 7 EXTERNAL WIRING NOTE: There are two coax ports on the back of the dome unit. The one labeled “MAIN” MUST be connected to the main receiver in vehicle (DISH Network model ViP211,ViP211k, or 411 only). This is the receiver that will control automatic satellite switching.
- Page 8 10. Remove blue protective sheet and red “position to rear” sticker from the dome unit. INTERNAL WIRING (FIG. 2, PAGE 3) 11. Connect the coax from the MAIN port on the King-Dome to SATELLITE IN on your main receiver (must be DISH Network model ViP211, ViP211k or 411).
-
Page 9: Operation
OPERATION SECTION 4 IMPORTANT : Satellite TV reception requires a clear “line of sight” to the southern sky where the satellites are located. Mountains, buildings, trees, telephone poles, etc. can all block the satellite signal from reaching the antenna. After completing the SCAN process, please call DISH Network at 1-800-333-DISH (3474) if you need to authorize or re-authorize your satellite receiver. - Page 10 3. Use the arrow buttons on your remote to highlight the letter group that includes the first letter of the state you are currently in. Press SELECT on your remote. 4. Highlight the state you are currently in from the state menu. Press SELECT on your remote.
- Page 11 5. Verify “Scan” is highlighted. Press SELECT on your remote. The scan will begin and may take several minutes to complete. This screen will display during the scan: 6. When the scan is complete, the “Acquiring Signal” message will display. Acquiring the signal may take up to 5 minutes to complete.
- Page 12 7. After your receiver has acquired the signal, the electronic program guide will download. This may take up to 5 minutes to complete (potentially longer if an external hard drive is connected for DVR use). 8. SEE IMPORTANT RECEIVER AUTHORIZATION INFORMATION BELOW! IMPORTANT! YOU MUST AUTHORIZE YOUR DISH NETWORK RECEIVER.
-
Page 13: Second Receiver Operation
Verify “SuperDISH” and “Alternate” are not selected. Verify “Test” is highlighted and press SELECT. When test is complete, highlight “Save” and press SELECT. After successfully saving the results, connect the AUX coax connection of the King-Dome to SAT IN on the second receiver. See the next page for downloading Page 12 programming to the second receiver. - Page 14 DOWNLOADING PROGRAMMING TO THE SECOND RECEIVER The channels available on the second receiver are determined by the channel/satellite selected by the main receiver. For example, if you select a channel on the main receiver that is broadcast from the 119 satellite, then the second receiver will be able to view any channel broadcast from the 119 satellite after performing the following procedure: With the antenna locked on, re-set the second receiver by pressing the POWER button on the front panel for 10 seconds.
-
Page 15: Troubleshooting
Possible Cause Troubleshooting Complete Signal Loss - 015 Obstructions to the King-Dome's 1) Make sure nothing is blocking the King-Dome's view of the southern sky, such as view of the southern sky, such as tree tree branches, severe rain, etc. - Page 16 TV appears. All Satellites Not Found - Obstructions to the King-Dome's 1) Make sure nothing is blocking the King-Dome's view of the southern sky, such as view of the southern sky, such as tree tree branches, severe rain, etc.
- Page 17 Symptom/Message Possible Cause Troubleshooting Over-the-Air Antenna The quality of reception and number 1) Check that the wiring between your DISH Channels Missing - Error of over-the-air (OTA) channels receiver and your over-the-air antenna is available depends on, among other configured properly. things, the type and positioning of 2) Unplug the power cord of your receiver for your OTA antenna.
- Page 18 (inside dome unit) when pointed at the appropriate satellite. Your television programming is delivered from up to 3 satellites located at the 110°, 119°, and 129° west longitudes. The King-Dome will automatically find and then switch between satellites as you change channels on the main receiver to offer you the ideal viewing experience.
-
Page 19: Maintenance
MAINTENANCE SECTION 7 The King-Dome Satellite System has been designed to be maintenance and trouble free. For optimum performance, keep the dome clean from dirt, bugs, and other debris. Periodic washing of the dome with mild soap and water is recommended. -
Page 20: Limited Warranty
LIMITED WARRANTY SECTION 8 Every new King-Dome Satellite System is thoroughly inspected and tested before leaving the factory, and is covered by the following two year parts and one year labor limited warranty from the date of original purchase: • Two year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty.
