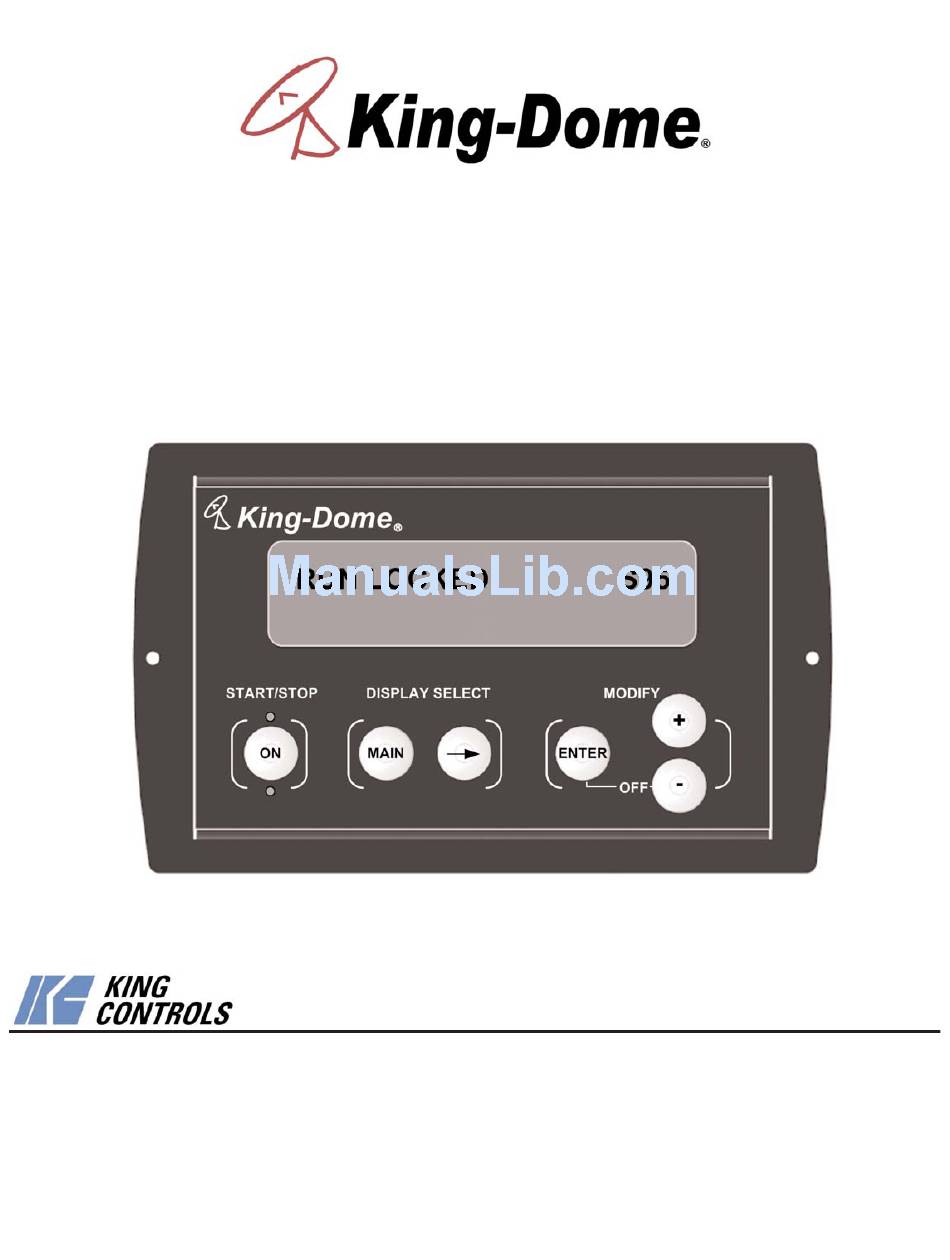

- Page 1 Trac-King Trac-King In-Motion Satellite System Model 9762-LP Installation and Operating Instructions ® Satellite Solutions for Mobile Markets 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com 1355 REV S...
-
Page 3: Table Of Contents
The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your King-Dome does not operate as outlined in this manual please call King Controls at (800) 982-9920 or visit our website at www.kingcontrols.com. -
Page 4: Introduction
Located in the vehicle. Supplies proper operating voltage to the Trac-King. Note: A TV, satellite receiver, and program subscription are also required for satellite TV viewing. (Purchased separately.) Fig. 1 King-Dome START/STOP DISPLAYSELECT MODIFY Note: For optional second receiver hookup see Pages 14-15. -
Page 5: Definition Of Terms
DEFINITION OF TERMS SECTION 2 AZIMUTH: Angle in degrees measured clockwise from Magnetic North (0°) (Fig. 2). Fig. 2 ELEVATION: Angle in degrees measured from the ground plane (Fig. 3). Fig. 3 SIGNAL STRENGTH: Intensity of electronic signal received from the satellite transmission. Page 3... -
Page 6: Installation
INSTALLATION SECTION 3 TOOLS AND MATERIALS REQUIRED: - drill and drill bit set - tape measure - 7/16” open end wrench (coax connections) - adhesive sealant (compatible with roof material) - appropriate fasteners and tools to install all components and wiring - 5/32”... - Page 7 IMPORTANT! The tie strap and spacer, and the bolts and washers must be removed from the bottom of the dome unit prior to installation. DO NOT REMOVE THE DOME COVER TO REMOVE THESE SHIPPING RESTRAINTS. YOU MUST PLUG THE SHIPPING RESTRAINT HOLE AND TWO SHIPPING BOLT HOLES WITH THE SUPPLIED PLUGS.
- Page 8 Insert provided plugs into holes that were occupied by tie strap and shipping bolts. Inserted plugs should be flush with base (Fig. 6). Fig. 6 IMPORTANT! After removing shipping restraints, firmly insert plugs into appropriate holes. Plugs should be flush with base. Page 6...
- Page 9 DOME LOCATION 1. Select an area on the roof for the dome unit and the location where the coax cables will enter the vehicle through the roof to the satellite receivers and internal components. Use the following criteria: a) The shortest distance between the dome unit and the main satellite receiver is most desirable.
- Page 10 3. The dome unit must be positioned so that both feet on each side of the vehicle are equal distances from the roof edge. This should be checked by measuring the distance from each foot to the roof edge. Confirm that these measurements are equal (Fig. 8). Fig.
- Page 11 COMPONENT LOCATION 1. Determine the location of the internal components using the following criteria: a) The Controller, Tuner, and Power Supply should be in the same general vicinity of the main satellite receiver, and ACCESSIBLE FOR OPERATION AND MAINTENANCE PURPOSES. b) The Tuner should not be stacked directly on top of other electronics.
- Page 12 COIL AND STORE EXCESS CABLE IN THE CABINET WITH THE COMPONENTS. DO NOT CUT COAX. If coaxial cable other than that supplied with the King-Dome is used, the following guide lines must be followed (Fig. 10): 1) Ends must be terminated with SNAP-N-SEAL ® connectors.
- Page 13 2. Test that the dome unit is secure by pulling upward from each foot location. Note. The King-Dome is wired for a dual LNB. There are two coaxial ports on the back of the dome unit. The one labeled “MAIN” MUST be connected to the Tuner (IDB) in vehicle. The one labeled “AUX” can be used for an additional receiver (see page 15).
- Page 14 5. Run coax from the back of the dome unit to the roof edge, then along edge to location where coax will be fed into the vehicle. (If installing an optional second receiver, run auxiliary coax to location where it will enter the vehicle.) Secure wiring to roof every 12- 18 inches (Fig.
- Page 15 This page intentionally left blank. Page 13...
- Page 16 ELECTRICAL HAZARD WARNING! The coaxial cable that connects the dome unit to the tuner carries a 24 volt electrical current. Exercise extreme caution when handling this cable. Do not cut, break, or splice this line. Do not insert or connect any devices such as splitters or any other device for any reason.
- Page 17 Fig. 13 9762-LP WIRING DIAGRAM DIRECTV, Dish Network and ExpressVu Standard Programming - 1 or 2 receivers IMPORTANT! AVOID SHARP BENDS WHEN ROUTING COAX. Page 15...
- Page 18 WALL MOUNT FACEPLATE Note: If not using the Faceplate, see Faceplate removal instructions below. 1. Use the Faceplate as a guide to mark and cut out the mounting cavity, and if necessary, mark and drill the mounting holes (Fig. 14). 2.
- Page 19 This page intentionally left blank. Page 17...
-
Page 20: Operation
OPERATION SECTION 4 IMPORTANT! There must be a clear “line of sight” to the satellite (See Fig. 2, Page 3). Mountains, buildings, trees, telephone poles, etc. can all block the satellite signal from reaching the dish. Note: This example is for the DTV 101 satellite in Region 2-North Central. The information on your controller will vary depending on the satellite and region you have chosen (see pages 20-21). - Page 21 AUTOMATIC SATELLITE SWITCHING Note: For DIRECTV switching options see page 22. For Dish Network - ExpressVu switching options see page 23. 1. Simply choose your desired channel using the receiver’s remote control. The Trac-King will automatically switch to the appropriate satellite. Note: For better performance when using the automatic satellite switching feature, change channels by selecting your program from the channel guide rather than channel surfing.
- Page 22 SET SATELLITE SERVICE SATELLITE LIBRARY DTV 101 DIRECTV at 101 DTV 101/ 110 hd DIRECTV HDTV at 101 and 110 DTV 101/ 119 DIRECTV HDTV at 101 and 119 Sat 110 Dish Network at 110 Sat 119 Dish Network at 119 DISH 61 Dish Network at 61 DISH 129...
- Page 23 SET REGION (OPTIONAL) Note: To reduce satellite acquisition time, you can set your current region. REGION OPTIONS: NORTH WEST NORTH CENTRAL NORTH EAST CENTRAL WEST MIDDLE CENTRAL CENTRAL EAST SOUTH WEST SOUTH CENTRAL SOUTH EAST ALL REGIONS RECALIBRATE Page 21...
-
Page 24: Automatic Satellite Switching (Directv )
DIRECTV’s 110° satellite and automatically switch between satellites 101/110 and 101/119 when simply changing channels. IMPORTANT! This King-Dome will receive available HDTV programming from DIRECTV Ku band satellites at 101°, 110° and 119° with the properly installed HD converter accessory. It will not receive channels broadcast from DIRECTV’s Ka band satellites at 99°... -
Page 25: Automatic Satellite Switching
AUTOMATIC SATELLITE SWITCHING SECTION 6 Dish Network - ExpressVu DISH 500 FOR DISH NETWORK The Trac-King will automatically switch between the 110 and 119 satellites for Dish Network by using the receiver’s remote control, after the receiver has been properly configured. Follow the instruction on pages 24-25. - Page 26 DISH 500 for DISH NETWORK IMPORTANT! In order for all receivers to work properly, each one must be configured separately while connected to the MAIN port on the Trac-King. If you do not have a clear view of both satellites, the switch will not load. King Controls recommends using a Dish Network model 311 receiver for automatic satellite switching.
- Page 27 5. On the receiver remote, press MENU 6 1 1. 6. Highlight Check Switch and press select. Screen graphics may vary. 7. Make sure Superdish and Alternate boxes are NOT selected. 8. Highlight Test and press Select. The unit will perform a check switch test, and the dish will periodically move back and forth.
- Page 28 DISH 1000/1000a for Dish Network HDTV IMPORTANT! In order for all receivers to work properly, each one must be configured separately while connected to the MAIN port on the Trac-King. If you do not have a clear view of all three satellites, the switch will not load. King Controls recommends using a Dish Network model VIP211 HDTV receiver for automatic satellite switching.
- Page 29 5. On the receiver remote, press MENU 6 1 1. 6. Highlight Check Switch and press select. Screen graphics may vary. 7. Make sure Superdish and Alternate boxes are NOT selected. 8. Highlight Test and press Select. The unit will perform a check switch test, and the dish will periodically move back and forth.
- Page 30 In order for all receivers to work properly, each one must be configured separately while connected to the MAIN port on the King-Dome. If you do not have a clear view of both satellites, the switch will not load.
- Page 31 5. On the receiver remote, press MENU 6 1 1. 6. Highlight Check Switch and press select. Screen graphics may vary. 7. Make sure Superdish and Alternate boxes are NOT selected. 8. Highlight Test and press Select. The unit will perform a check switch test, and the dish will periodically move back and forth.
-
Page 32: Directv Hdtv Connections
DIRECTV HDTV CONNECTIONS SECTION 7 (1) HD receiver and (1) standard receiver Switching from master receiver only Note: Requires HDTV converter #9747 and other HDTV components (purchased separately). Call King Controls for more information. Note: When configured for automatic switching from the master receiver only, you must manually switch satellites for the secondary receiver using the antenna controller. - Page 33 (2) HD receivers Switching from master receiver only Note: Requires (2) HDTV converters #9747 and other HDTV components (purchased separately). Call King Controls for more information. Note: When configured for automatic switching from the master receiver only, you must manually switch satellites for the secondary receiver using the antenna controller.
- Page 34 (2) or more HD receivers Switching from any receiver Note: Requires HDTV converter #9747 and other HDTV components (purchased separately). Call King Controls for more information. Note: To automatically switch between satellites using any receiver, tune all other receivers to a channel on the 101 satellite.
- Page 35 This page intentionally left blank. Page 33...
-
Page 36: Troubleshooting
TROUBLESHOOTING SECTION 8 SYMPTOM POSSIBLE SOLUTION Controller does not power up. Check: tuner is connected to power supply. controller is connected to tuner. power supply is plugged into 110 VAC outlet. Controller remains in one of the Unplug tuner for 10 seconds, then plug back in. following conditions: Check coax cables and connections between tuner and dome unit. - Page 37 SYMPTOM POSSIBLE SOLUTION Only getting signal on 1/2 of Kinked or sharply bent coax cable. transponders. Verify coax cables are properly terminated with SNAP-N-SEAL ® connectors only. Verify receiver is operating properly. Verify LNB type is set correctly. Unit never locks on or locks on Atmospheric moisture.
- Page 38 OPTION 21 RE-INITIALIZE and 0 RECALIBRATE Page 36...
- Page 39 Page 37...
- Page 40 MECHANICAL CALIBRATION IMPORTANT! The Trac-King must remain perfectly still and level during the mechanical calibration. Do not have the vehicle running during the process. The Trac-King must be running. (NOT IN IDLE/HOLD) Page 38...
-
Page 41: Maintenance
MAINTENANCE SECTION 9 The King-Dome Satellite System has been designed to be maintenance and trouble free. For optimum signal strength, keep the dome clean from dirt, bugs, and other debris. Periodic washing of the dome with mild soap and water is recommended. -
Page 42: Limited Warranty
SECTION 10 Every King-Dome Satellite System is thoroughly inspected and tested before leaving the factory. It is covered by a two year parts and one year labor limited warranty from the date of original purchase. This warranty does not cover installation and external wiring or refurbished units. - Page 44 Trac-King 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com...
