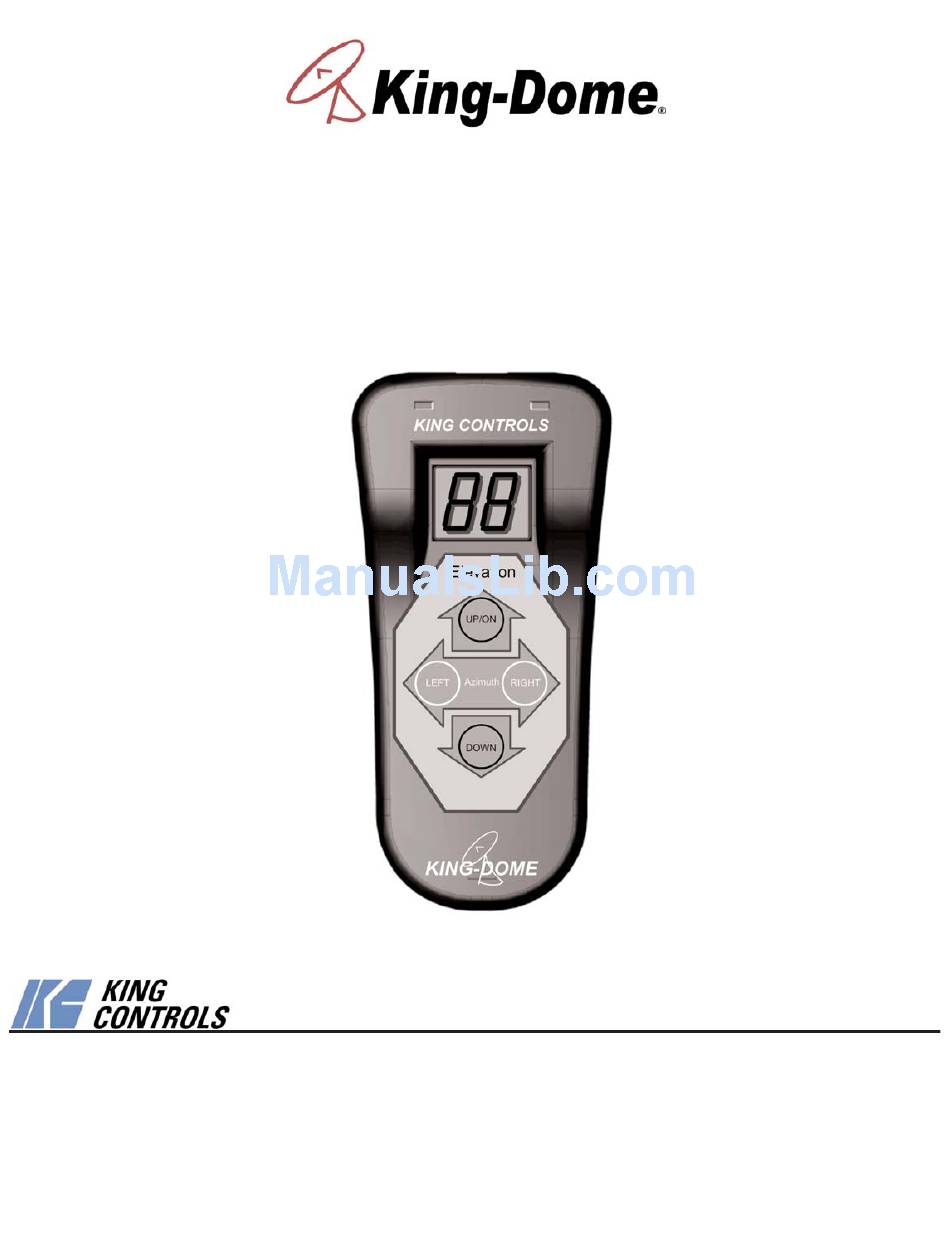

Page 1 AutoScan AutoScan Satellite System 9630 9630-LP Installation and Operating Instructions Satellite Solutions for Mobile Markets 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com 1352 REV M...
Page 3: Table Of Contents
7. MAINTENANCE ...18 8. LIMITED WARRANTY ...19 DIRECTV is a registered trademark of DIRECTV, Inc. Dish Network ® is an official trademark of Echostar Communications Corporation. ® Bell ExpressVu is an official trademark of Bell Canada. ® is a trademark of the DVB Digital Video Broadcast Project (1991-1996)
Page 4: Introduction
SECTION 1 The King-Dome AutoScan Satellite System includes 2 main components (Fig. 1). Dome (Antenna) Unit Controller Note: A TV, satellite receiver, and program subscription are also required for satellite TV viewing. (Not supplied by King Controls.) Fig. 1 Page 2 INTRODUCTION Located on the roof of the vehicle.
Page 5: Definition Of Terms
SECTION 2 AZIMUTH: Circular rotation around the vehicle. (like a clock face: front of vehicle is 12:00, rear is 6:00) (Fig. 2) Fig. 2 ELEVATION: Angle in degrees measured from the ground plane (Fig. 3). Fig. 3 SIGNAL STRENGTH: Intensity of electronic signal received from the satellite transmission. DEFINITION OF TERMS Page 3...
Page 6: Tools And Materials Required
SECTION 3 TOOLS AND MATERIALS REQUIRED: - drill and drill bit set - tape measure - 7/16” open end wrench (coax connections) - adhesive sealant (compatible with roof material) - appropriate fasteners to install all components and wiring - 5/32” allen wrench, channel lock or pliers (to remove shipping bolts) - wire cutter (to remove shipping tie strap) KIT CONTENTS: 1.
Page 7 IMPORTANT! The tie strap and spacer, and the bolts and washers must be removed from the bottom of the dome unit prior to installation. DO NOT REMOVE THE DOME COVER TO REMOVE THESE SHIPPING RESTRAINTS. YOU MUST PLUG THE SHIPPING BOLT HOLES WITH THE SUPPLIED PLUGS (ATTACHED TO TIE STRAP SHIPPING RESTRAINT).
Page 8 DOME LOCATION 4. Select an area on the roof for the dome unit and the location where the wiring will enter the vehicle through the roof to the satellite receiver, controller, and 12 volt power source inside, using the following criteria: a) The shortest distance between the dome unit and the satellite receiver is most desirable.
Page 9: Dome Installation
Fig. 7 IMPORTANT! The dome unit MUST be mounted to the air ride cab: NEVER to any structure mounted directly to the frame. DOME INSTALLATION IMPORTANT! Make sure shipping restraints are removed from bottom of dome unit (Fig. 5, Page 5). Cable connections must ALWAYS be positioned facing the rear of vehicle.
Page 10: External Wiring
Note: The installer is responsible for determining the most appropriate fastener to secure the dome unit to the roof. Depending on the roof material, fasteners such as lag screws, well nuts, sheet metal screws, toggle bolts and T anchors may be used, and should always be used in combination with a roof compatible sealant.
Page 11 11. Run wires from the back of the dome unit to the roof edge, then along edge to location where wiring will be fed into the vehicle. (If installing an optional second receiver, run auxiliary coax to location where it will enter the vehicle.) Secure wiring to roof every 12-18 inches (Fig.
Page 12: Internal Wiring
INTERNAL WIRING IMPORTANT: The connection between the dome unit and the receiver must be a direct connection with no devices in between. Any other devices should be downstream from the receiver. 14. Inside vehicle, connect main coax from the dome unit directly to the “satellite in” port of the main receiver.
Page 13: Operation
SECTION 4 IMPORTANT! There must be a clear “line of sight” to the southern sky. Mountains, buildings, trees, telephone poles, etc. can all block the satellite signal from reaching the dish. 1. Turn TV and satellite receiver on. 2. Go to the signal meter screen on TV. 3.
Page 14 Elevation Map for DIRECTV 101 Find your location on the map. Use the elevation lines to determine your approximate elevation. Page 12...
Page 15 Elevation Map for Dish/DIRECTV 110 Find your location on the map. Use the elevation lines to determine your approximate elevation. Page 13...
Page 16 Elevation Map for Dish/DIRECTV 119 Find your location on the map. Use the elevation lines to determine your approximate elevation. Page 14...
Page 17 While the dish rotates, the direction of the dish in relation to the vehicle’s position will be displayed on the controller as a clock number. (The windshield is always 12:00 o’clock: see Fig. 2, Page 3.) This information can be used to determine when the dish is close to pointing at the desired satellite.
Page 18: Store/Recall Positions
SECTION 5 Note: For use with multi-satellite services. (such as Dish 500) Page 16 STORE/RECALL POSITIONS Store Satellite Position #1 1. Once locked onto a desired satellite, hold LEFT AND RIGHT arrows simultaneously until display flashes. 2. Hold LEFT arrow until 1P (Position 1) appears on display. Position #1 is stored in memory for this position.
Page 19: Diagnostics
DIAGNOSTICS SECTION 6 Page 17...
Page 20: Maintenance
MAINTENANCE SECTION 7 The King-Dome Satellite System has been designed to be maintenance and trouble free. For optimum signal strength, keep the dome clean from dirt, bugs, and other debris. Periodic washing of the dome with mild soap and water is recommended. If you plan on storing your vehicle for long periods of time, it is recommended that the system be put through a search procedure on a quarterly basis to keep all moving parts in good working order.
Page 21: Limited Warranty
SECTION 8 Every King Controls Satellite System is thoroughly inspected and tested before leaving the factory. It is covered by a two year parts and one year labor limited warranty from the date of original purchase. This warranty does not cover installation and external wiring or refurbished units.
Page 22 Notes Page 20...
Page 24 AutoScan 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com...
