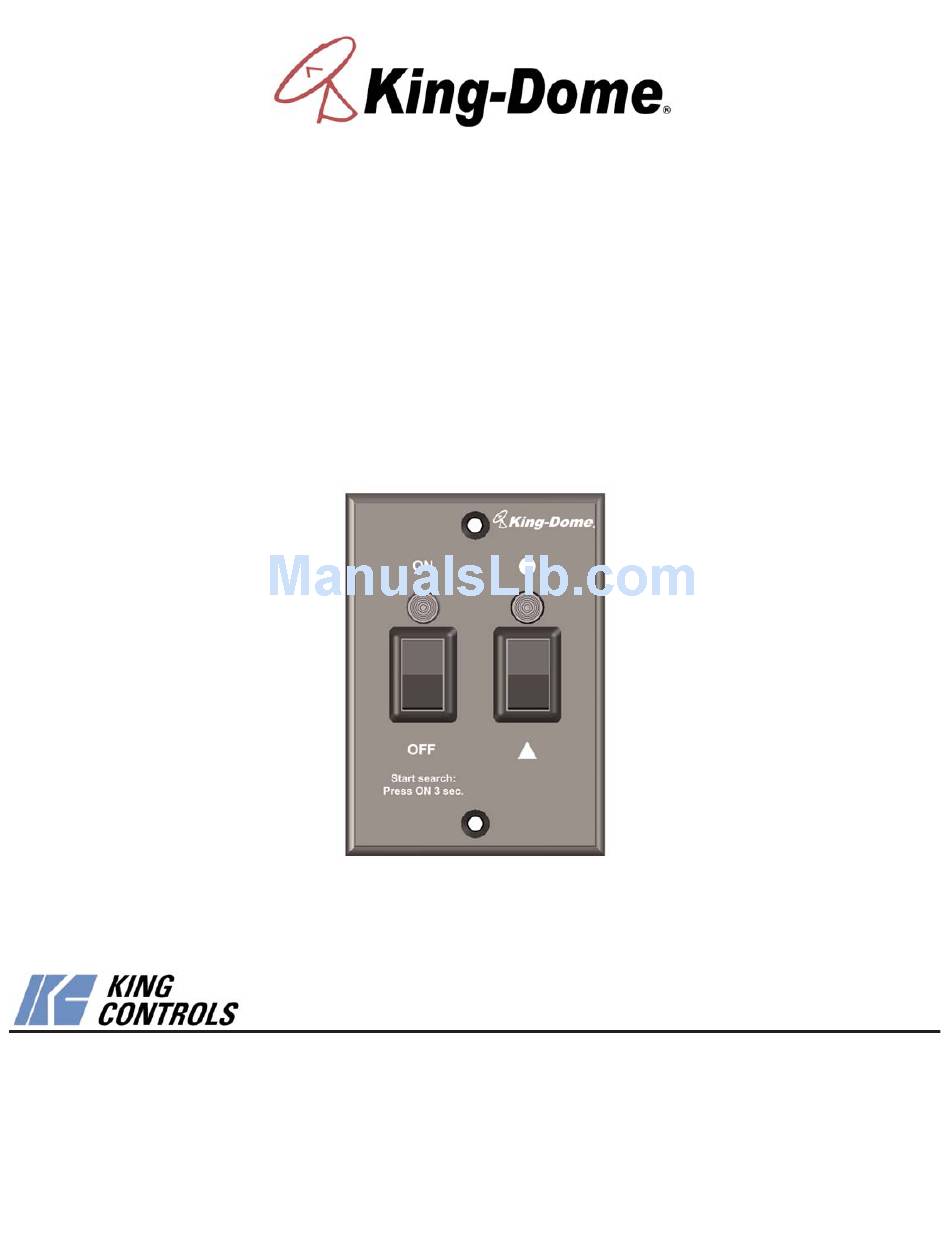

In-Motion Satellite System
with built-in DVB for positive satellite identification
Model 9754
Model 9754-LP
Installation and Operating Instructions
®
Digital TV Solutions for Mobile Markets
11200 Hampshire Avenue South, Bloomington, MN 55438-2453
Phone: (952) 922-6889
Fax: (952) 922-8424
www.kingcontrols.com
1338 REV F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9754 and is the answer not in the manual?

Questions and answers

Related Manuals for King-Dome 9754

Summary of Contents for King-Dome 9754

  • Page 1 In-Motion Satellite System with built-in DVB for positive satellite identification Model 9754 Model 9754-LP Installation and Operating Instructions ® Digital TV Solutions for Mobile Markets 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com 1338 REV F...

  • Page 3: Table Of Contents

    The satellite TV market is expanding and changing. The information in this manual was accurate at the time of printing. If your King-Dome does not operate as outlined in this manual please call King Controls at (952) 922-6889 or visit our website at www.kingcontrols.com.

  • Page 4: Introduction

    INTRODUCTION SECTION 1 The King-Dome Automatic Satellite System includes 2 main components (Fig. 1). Dome (Antenna) Unit Located on the roof of the vehicle. The antenna is covered by a protective dome that keeps operational components free from the elements.

  • Page 5: Definition Of Terms

    DEFINITION OF TERMS SECTION 2 AZIMUTH: Circular rotation around the vehicle. Using a clock as reference, the front of the vehicle is 12:00, and the rear is 6:00 (Fig. 2). Fig. 2 ELEVATION: Angle in degrees measured from a level plane (Fig. 3). Fig.

  • Page 6: Installation

    INSTALLATION SECTION 3 TOOLS AND MATERIALS REQUIRED • drill and drill bit set • tape measure • 7/16” open end wrench (coax connections) • adhesive sealant (compatible with roof material) • appropriate fasteners to install all components and wiring • 5/32” allen wrench, channel lock or pliers (to remove shipping bolts) •...
  • Page 7 IMPORTANT! The tie strap and spacer, and the shipping bolts and washers must be removed from the bottom of the dome unit prior to installation. DO NOT REMOVE THE DOME COVER TO REMOVE THESE SHIPPING RESTRAINTS. YOU MUST PLUG THE SHIPPING BOLT HOLES WITH THE SUPPLIED PLUGS (ATTACHED TO TIE STRAP SHIPPING RESTRAINT).
  • Page 8 DOME UNIT LOCATION 4. Select an area on the roof for the dome unit and the location where the wiring will enter the vehicle through the roof to the satellite receiver, controller, and 12 volt power source inside, using the following criteria: a) A shorter distance between the dome unit and the satellite receiver is most desirable.
  • Page 9 Fig. 7 Example of truck installation using bracket. See bracket instructions for proper installation. IMPORTANT! The dome unit MUST be mounted to the air ride cab: NEVER to any structure mounted directly to the frame. DOME UNIT INSTALLATION IMPORTANT! Make sure shipping restraints are removed from bottom of dome unit and plugs are inserted in holes (Fig.
  • Page 10 (Fig. 9). Note: The King-Dome is wired for multiple receiver support. There are two coax ports on the back of the dome unit. The one labeled “MAIN” MUST be connected to the main receiver in vehicle. This is the receiver that will control automatic satellite switching if applicable.
  • Page 11 11. Run wires from the back of the dome unit to the roof edge, then along edge to location where wiring will be fed into the vehicle. If installing an optional auxiliary receiver, run auxiliary coax to location where it will enter the vehicle. Secure wiring to roof every 12-18 inches (Fig. 10). IMPORTANT! SEALANT MUST BE ROOF COMPATIBLE.
  • Page 12 Note: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is desired. Components and wiring supplied with the 9754/9754-LP are shown in black. Existing components and wiring or those sold separately are shown in gray. 15. Choose your desired wiring configuration:...
  • Page 13 DIRECTV / Bell TV Fig. 11 King-Dome Models 9754, 9754-LP & 9754-LP-HD Single satellite IMPORTANT! Main coax cable must be connected to 18V input on multi-switch. Page 11...
  • Page 14 DIRECTV / Dish Network / Bell TV Fig. 12 King-Dome 9754, 9754-LP & 9754-LP-HD 2 or more satellites with auto switching Note: Using multiple receivers is not recommended for multi-satellite services where automatic satellite switching is desired. Page 12...

  • Page 15: Antenna Configuration

    Network or Bell TV programming, you must re-configure the antenna to work with your satellite service. Doing this will allow the King-Dome to lock on the correct satellites to receive your programming and also enable automatic satellite switching via the receiver’s remote control for multi-satellite service.
  • Page 16 Receive standard digital programming from the 101, and locals from the 119, and automatically switch between the two. IMPORTANT! The King-Dome can receive available HDTV programming from DIRECTV Ku band satellites at 101° and 119°. It will not receive channels broadcast from DIRECTV’s Ka band satellites at 99°...
  • Page 17 (Note: With the Eastern Arc Trio, you cannot receive programming from the 77 satellite while in motion.) The King-Dome antenna can be easily configured to work with either trio. By choosing the appropriate trio based on where you are, you can receive all of your desired programming.

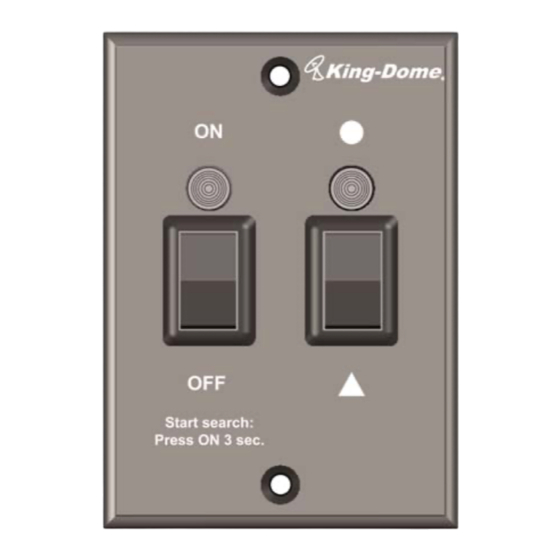

  • Page 18 STEP 2-A: ANTENNA CONFIGURATION USING WALL MOUNT CONTROLLER Note: If using the keypad for programming, go to page 23. On pages 17-21, find your service and follow the instructions in the box. DIRECTV Single Satellite 101 (Factory Pre-set) ..Page 17 DIRECTV Plus .

  • Page 19: Single Satellite 101 (Factory Pre-Set)

    DIRECTV ANTENNA CONFIGURATION Single Satellite 101 The King-Dome is factory pre-set for the DIRECTV 101 satellite. Unless the antenna has been configured for another option since leaving the factory, PERFORM STEP 5 ONLY. 1. On the King-Dome controller, press and release the ON button.

  • Page 20: Dish Network

    DISH NETWORK ANTENNA CONFIGURATION DISH 500 (satellites 110, 119) 1. On the King-Dome controller, press and release the ON button. Wait for the status light to flash orange, and then WAIT 4 MORE SECONDS. 2. Press and release the ON button 12 times.

  • Page 21: Dish Hd Western Arc With Locals

    DISH HD Western Arc with Locals (satellites 110, 119, 129) 1. On the King-Dome controller, press and release the ON button. Wait for the status light to flash orange, and then WAIT 4 MORE SECONDS. 2. Press and release the ON button 20 times.

  • Page 22: Dish Hd Alternate With Locals

    DISH HD Alternate with Locals (satellites 61.5, 110, 119) 1. On the King-Dome controller, press and release the ON button. Wait for the status light to flash orange, and then WAIT 4 MORE SECONDS. 2. Press and release the ON button 16 times.
  • Page 23 Bell TV HDTV 82/91 (satellites 82, 91) 1. On the King-Dome controller, press and release the ON button. Wait for the status light to flash orange, and then WAIT 4 MORE SECONDS. 2. Press and release the ON button 32 times.
  • Page 24 This page intentionally left blank. Page 22...
  • Page 25 Bell TV HDTV 82/91 Alternate is for stationary use only. The King-Dome can receive available HDTV programming from DIRECTV Ku band satellites at 101° and 119°. It will not receive channels broadcast from DIRECTV’s Ka band satellites at 99° and 103°.
  • Page 26 Perform the programming on these two pages using the codes determined from the chart on page 23 (EXCEPT DIRECTV 101 SERVICE). If you have DIRECTV 101 Service, set your receiver for round dish-1 satellite (do this through the receiver’s satellite set-up menu screens), and then go to page 30, OPERATION). SET SATELLITE SWITCHING MODE 1.
  • Page 27 SET SATELLITE PROVIDER CODE * 24 # 1. Press to display the current service provider (see chart on page 23). * 96 # 2. To change the current service provider, press * 66 # * 88 # 3. Press the UP and DOWN arrows (2 and 8 keys) to choose your desired service provider from the chart on page 23.
  • Page 28 This page intentionally left blank. Page 26...
  • Page 29 1. Turn on the TV and satellite receiver. 2. On the King-Dome controller, press and hold the ON button for 3 FULL SECONDS. The antenna will lock onto all the appropriate satellites before completing the search process.
  • Page 30 Note: Not all receivers will display a screen with options that include superdish and alternate boxes. 5. Make sure Superdish and Alternate boxes are NOT selected. 6. Highlight Test and press Select. Screen graphics may vary. The unit will perform a check switch test, and the antenna will periodically move back and forth.

  • Page 31: Bell Tv 91

    Dish HD Alternate with Locals NO “X”s MUST SHOW “SW64” “NO SWITCH Bell TV HDTV 82/91 DETECTED” Bell TV 91 Bell TV HDTV 82/91 Alternate “INSTALLED DEVICE UNKNOWN” similar MUST SHOW “SW21” NO “X”s If indicated results are not obtained, go back to Step 3 and run test again. Contact King Controls if the check switch fails to load after 4 attempts.

  • Page 32: Operation

    The distance driven since last performing a search may affect how long it takes for the King-Dome to find the satellite. This King-Dome can receive available HDTV programming from DIRECTV Ku band satellites at 101° and 119°. It will not receive channels broadcast from DIRECTV’s Ka band satellites at 99°...
  • Page 33 When you park for the evening or any extended period, it is recommended that you perform a stationary search. AUTOMATIC SATELLITE SWITCHING 1. After you have properly configured the King-Dome antenna for your satellite service, the King-Dome will automatically switch between satellites by simply selecting your desired channel using the receiver’s remote control.
  • Page 34 The map below shows the approximate coverage for each trio. The King-Dome antenna can be easily configured to work with either trio as you travel from one coverage area to another. By choosing the appropriate trio based on where you are, you can receive all of your desired programming.
  • Page 35 and then wait 4 more seconds. 1. Press ON. Wait for the Status Light to flash orange, 2. Press and release ON 4 times. Status Light starts rapidly flashing green and red. 3. Select the trio you want to change to: Dish HD Eastern Arc Trio 61.5, 72, 77 Press and hold for 4 seconds.

  • Page 36: Troubleshooting

    STATUS light is steady green but no Satellite receiver is off or requires reset. Turn receiver on or reset. picture. King-Dome is factory set for DIRECTV Configure the King-Dome for your Single Satellite 101 and you have a service (page 13).

  • Page 37: Maintenance

    MAINTENANCE SECTION 7 The King-Dome Satellite System has been designed to be maintenance and trouble free. For optimum signal strength, keep the dome clean from dirt, bugs, and other debris. Periodic washing of the dome with mild soap and water is recommended.

  • Page 38: Limited Warranty

    LIMITED WARRANTY SECTION 8 Every new King-Dome Satellite System is thoroughly inspected and tested before leaving the factory, and is covered by the following two year parts and one year labor limited warranty from the date of original purchase: • Two year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty.
  • Page 40 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (952) 922-6889 Fax: (952) 922-8424 www.kingcontrols.com...
