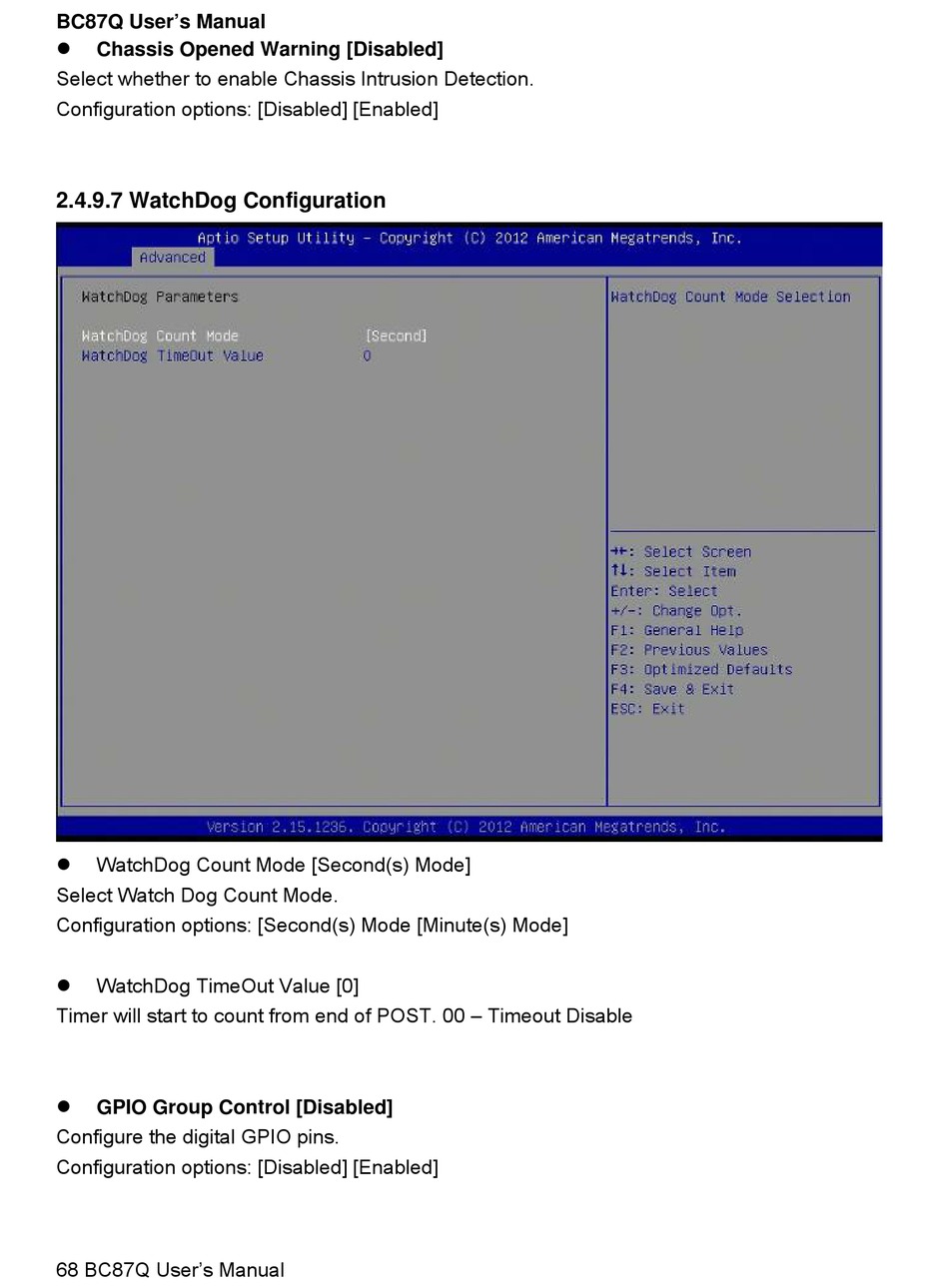

BCM BC87Q User Manual page 68

BC87Q User's Manual

Chassis Opened Warning [Disabled]
Select whether to enable Chassis Intrusion Detection.
Configuration options: [Disabled] [Enabled]
2.4.9.7 WatchDog Configuration
 WatchDog Count Mode [Second(s) Mode]
Select Watch Dog Count Mode.
Configuration options: [Second(s) Mode [Minute(s) Mode]
 WatchDog TimeOut Value [0]
Timer will start to count from end of POST. 00 – Timeout Disable

GPIO Group Control [Disabled]
Configure the digital GPIO pins.
Configuration options: [Disabled] [Enabled]
68 BC87Q User's Manual
