Connect the right-angle side of SATA signal cable to

SATA device. Or you may connect the right-angle side of

SATA cable to the onboard SATA port to avoid

mechanical conflict with large graphics cards.

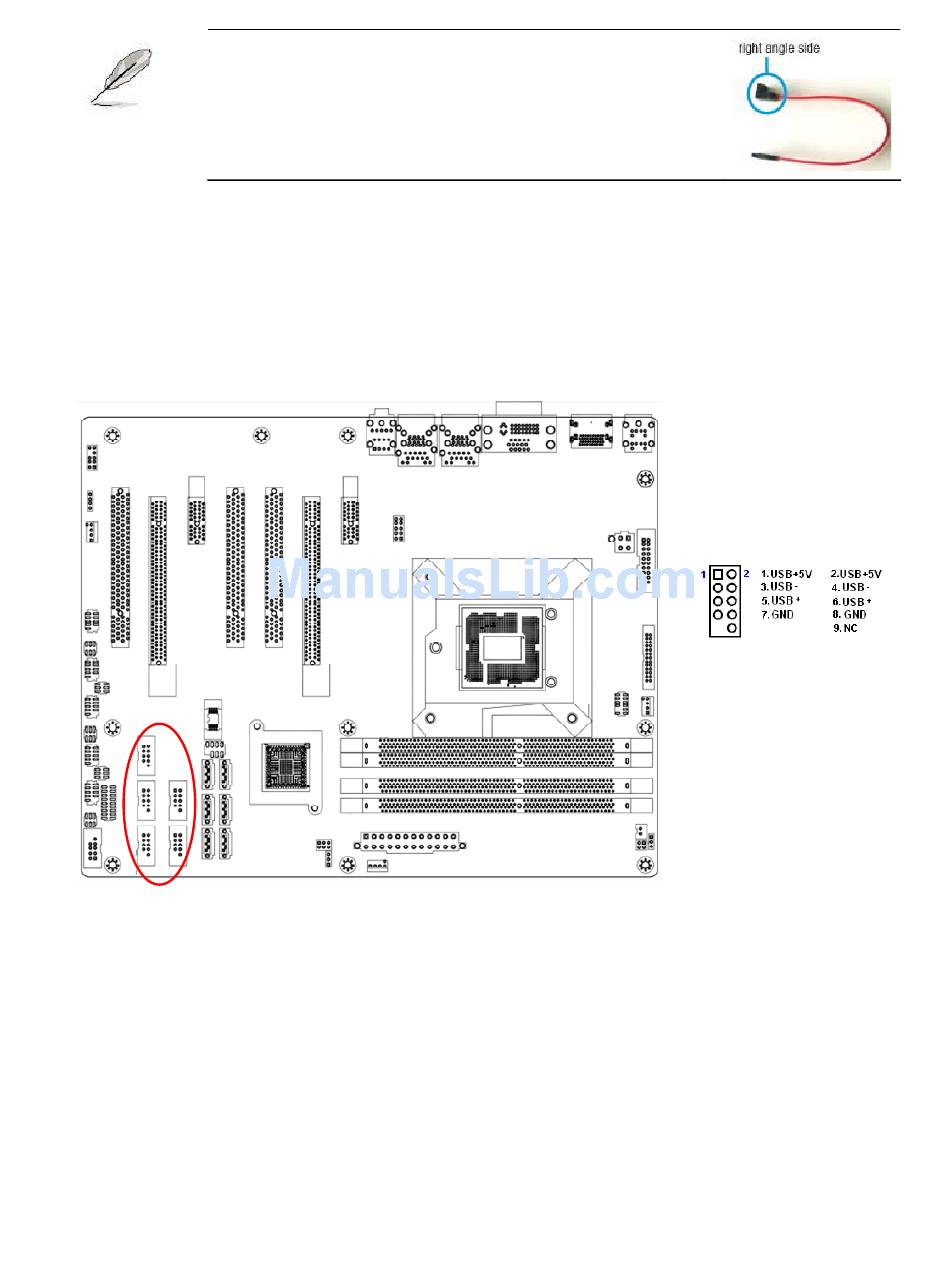

1.8.12 Front USB Headers: USB34, USB78, USB910, USB1112, USB1314

These connectors are for USB 2.0 ports. Connect the optional USB module cable to any of

these connectors, then install the module to a slot opening at the back of the system chassis.

These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps

connection speed.

BC87Q User's Manual

USB

BC87Q User's Manual 43
