IM885-A

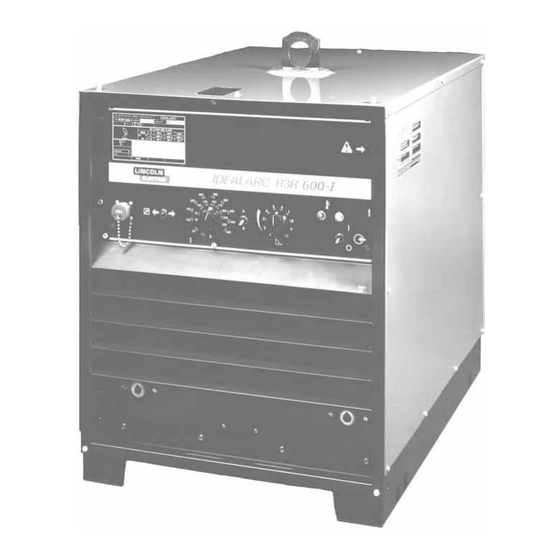

IDEALARC
R3R 600-I
®
November, 2006
11289, 11343
For use with machines having Code Numbers:
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However,
your overall safety can be
increased by proper installation
... and thoughtful operation on
your part. DO NOT INSTALL,
OPERATE OR REPAIR THIS
EQUIPMENT WITHOUT READ-
ING THIS MANUAL AND THE
SAFETY PRECAUTIONS CON-
TAINED THROUGHOUT. And,
most importantly, think before you
act and be careful.
OPERATOR'S MANUAL
Copyright © 2006 Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDEALARC R3R 600-I and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln Electric IDEALARC R3R 600-I

Summary of Contents for Lincoln Electric IDEALARC R3R 600-I

  • Page 1 RETURN TO MAIN MENU IM885-A IDEALARC R3R 600-I ® November, 2006 11289, 11343 For use with machines having Code Numbers: Safety Depends on You Lincoln arc welding and cutting equipment is designed and built with safety in mind. However, your overall safety can be increased by proper installation ...

  • Page 2: California Proposition 65 Warnings

    Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199. BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

  • Page 3: Electric Shock Can Kill

    ELECTRIC SHOCK can kill. 3.a. The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free gloves to insulate hands.
  • Page 4 WELDING SPARKS can cause fire or explosion. 6.a. Remove fire hazards from the welding area. If this is not possible, cover them to prevent the welding sparks from starting a fire. Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.
  • Page 5 PRÉCAUTIONS DE SÛRETÉ Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce manuel aussi bien que les précautions de sûreté générales suiv- antes: Sûreté Pour Soudage A L’Arc 1. Protegez-vous contre la secousse électrique: a.
  • Page 6 The code number is especially important when identifying the correct replacement parts. - Register your machine with Lincoln Electric either via fax or over the Internet. • For faxing: Complete the form on the back of the warranty statement included in the literature packet accompanying this machine and fax the form per the instructions printed on it.

  • Page 7: Table Of Contents

    Installation ............Section A Technical Specifications .

  • Page 8: Installation

    Maximum Open Circuit Voltage .74 @ 500A IDLE CURRENT 11.3@220V/50Hz TEMPERATURE RANGES OPERATING TEMPERATURE RANGE -40°C to +40°C PHYSICAL DIMENSIONS WIDTH DEPTH 22.3 in 32.0 in 566 mm 813 mm IDEALARC R3R 600-I Volts at Rated Amperes 64VDC WEIGHT 446 lbs. 203 kg.

  • Page 9: Input Power Connection

    380 - 400 440 - 460 DUTY CYCLE The maximum output rating of this welder is at a 35% duty cycle. Duty cycle is based on a ten minute period. Therefore, the welder can be operated at the maximum rated output for 3.5 minutes out of every 10 minute period without overheating.

  • Page 10: Output Control

    The R3R name plates feature international symbols in describing the function of the various components. Below are the symbols used and an explanation of what each represents. A. POWER ON-OFF SWITCH IDEALARC R3R 600-I “or “ I “ is provided for Power Input...
  • Page 11 Positive Electrode Polarity Negative Do Not Switch While Welding OPERATION G. RATING PLATE H. HIGH TEMPERATURE WARNING LIGHT I. WARNING J. GROUND IDEALARC R3R 600-I Three Phase Power Transformer Rectifier Rectified DC Output Constant Current Characteristics Shielded Metal Arc Welding...

  • Page 12: Optional Equipment

    K963 – HAND AMPTROL AND K870 FOOT AMPTROL Connect directly to the 6 pin Amphenol on the front of the power source. AMMETER AND VOLTMETER – (factory installed only) IDEALARC R3R 600-I...

  • Page 13: Routine Maintenance

    1. The fan motor has sealed bearings which require no service. 2. In extremely dusty locations, dirt may clog the air channels causing the welder to run hot. Blow out the machine at regular intervals. POCKET AMPTROL Routine cleaning should be the only maintenance required.

  • Page 14: How To Use Troubleshooting Guide

    HOW TO USE TROUBLESHOOTING GUIDE Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual.
  • Page 15 9.Lead broken or loose connec- tion in 115V starter circuit. 10.Thermostats defective. (High Temperature Warning Light should be lit.) CAUTION IDEALARC R3R 600-I RECOMMENDED COURSE OF ACTION 1.Repair or replace. 2.Check with Power Company. 1.Replace (look for reason for blown fuse first).
  • Page 16 6. Latching resistor, R3, open. 7. Control circuit problems. 1. Possible defective power SCR. 2. Possible defective control board. CAUTION IDEALARC R3R 600-I RECOMMENDED COURSE OF ACTION 1. Repair connections. 2. Repair. 3. Replace blown fuse – check fuse size.
  • Page 17 2. Machine output shorted causing overload protection on control board to operate. 3. Control circuit defective. CAUTION IDEALARC R3R 600-I RECOMMENDED COURSE OF ACTION 1. Replace fuse or repair input line. Check reason for fault. 2. Repair. 3. Check bridge per...
  • Page 18 3. Current control potentiometer defective. 4. Lead or connection in control circuit open. 5. Defective control or circuit boards. CAUTION IDEALARC R3R 600-I RECOMMENDED COURSE OF ACTION 1. Refer to Power Hybrid, Troubleshooting Procedures, Section J and Snubber, Section 2. Repair.
  • Page 19 5. Lead or connection in current control circuit open. 6. Control PC board plug discon- nected or loose. 7. Control circuit problems. CAUTION IDEALARC R3R 600-I RECOMMENDED COURSE OF ACTION 1. Place switch in “remote” ( position. 2. Correct connection.
  • Page 20 TROUBLESHOOTING CONTROL CIRCUIT TROUBLESHOOTING CHART IDEALARC R3R 600-I...

  • Page 21: Troubleshooting Procedures

    (low resis- tance value) and then slowly return to the left (high resistance value). This indicates that the capacitor in the snubber circuit is taking a charge. IDEALARC R3R 600-I Load Current ±5% 50 Hz 100 A...
  • Page 22 The 220, 221 and 223 leads from the Snubber PC board. d. Lead 220 that connects to the latching resis- tor (R3). e. The cathode of each diode (4 total). Connector J4 on latest control board. IDEALARC R3R 600-I CAUTION on the Control PC...
  • Page 23 An open gate circuit will have an infinite or high resistance. A good gate circuit will read a low resistance, but not zero ohms. IDEALARC R3R 600-I E-10...

  • Page 24: Wiring Diagram

    CONTROL OPTIONAL METER KIT 212 76 (SWITCH SHOWN IN LOCAL POSITION) TO CONTROL BOX GROUNDING STUD REMOTE CONTROL RECEPTACLE IDEALARC R3R 600-I PRIMARY CONNECTIONS RECONNECT PANEL SHOWN TO SUPPLY LINES 4-7, 5-8 AND 6-9 CONNECTED FOR 220V TO GROUND ARE MADE AT THE...

  • Page 25: Dimension Print

    Part No. Type M12244-7 M12244-7 7-7-78 DIMENSION PRINT R3R 600-I K817 or K817R (K841 not shown) 32.00 15.39 3092 1.44 30.02±.11 33.07±.06 IDEALARC R3R 600-I...
  • Page 26 ● WARNING ● Spanish ● AVISO DE PRECAUCION ● French ● ATTENTION ● ● German WARNUNG ● Portuguese ● ATENÇÃO ● Japanese Chinese Korean Arabic ● ● ● ● ● ● ● ● ● ●...
  • Page 27 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Spanish ● PRECAUCION French ● ATTENTION ● German Portuguese ● ● Japanese Chinese Korean Arabic WARNING AVISO DE WARNUNG ATENÇÃO...
  • Page 28 • World's Leader in Welding and Cutting Products • • Sales and Service through Subsidiaries and Distributors Worldwide • Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com...
