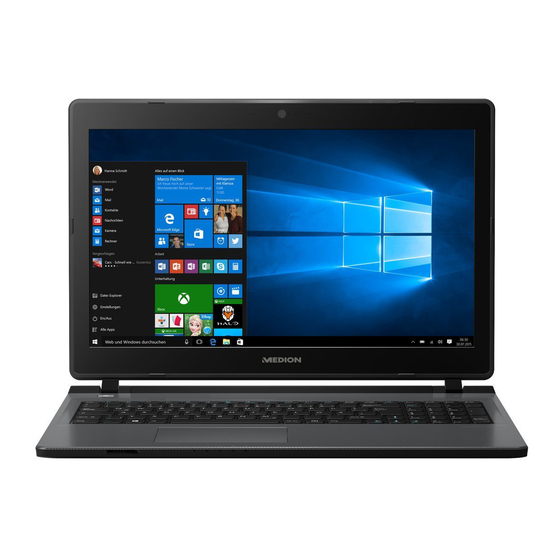

39.6 cm / 15.6" Notebook
®
®
MEDION
AKOYA
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKOYA and is the answer not in the manual?

Questions and answers

Related Manuals for Medion AKOYA

Summary of Contents for Medion AKOYA

  • Page 1 39.6 cm / 15.6“ Notebook ® ® MEDION AKOYA Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents About these Instructions ................5 1.1. Warning symbols and key words used in these instructions ....5 1.2. Proper Use ......................... 6 1.3. Declaration of Conformity ................... 6 Safety Instructions ..................7 2.1. Dangers for children and people with reduced ability to operate electronics .........................
  • Page 3 The Hard Drive ................... 33 9.1. Important Directories ..................34 The Optical Drive ..................35 10.1. Inserting a Disc ......................35 10.2. Playing/Reading Discs ..................36 10.3. Regional playback information for DVDs .............36 10.4. Issues Relevant to the Burner ................37 10.5. Installing battery / additional hard drive (optional) .........38 The Sound System ..................
  • Page 4 18.3. Do You Need More Help? ...................61 18.4. Driver Support .......................61 18.5. Transport ........................62 18.6. Maintenance ......................63 18.7. Care of the Display ....................64 Upgrading/Modifying and Repair ............64 19.1. Notes for Service Technicians ................65 19.2. Information on Laser Radiation ...............65 Recycling and Disposal................
  • Page 5 This document contains legally protected information. All rights reserved. Mechani- cal, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer. Copyright © 2013 ® All rights reserved. This manual is protected by copyright. MEDION is the owner of the copyright. ® ®...

  • Page 6: About These Instructions

    1. About these Instructions Before using the device for the first time, please read these operating in- structions carefully, paying special attention to the safety notices. This device should only be used as designated and as described in these instructions. Please keep these instructions in a safe place for future reference.

  • Page 7: Proper Use

    Wireless LAN (optional) • Bluetooth (optional) Medion AG hereby declares that this device conforms to the fundamental require- ments and the remaining relevant regulations of the 1999/5/EC R&TTE Directive. This product satisfies the basic requirements and relevant regulations of the Ecode- sign Directive 2009/125/EC.

  • Page 8: Safety Instructions

    2. Safety Instructions 2.1. Dangers for children and people with reduced ability to operate electronics • This device is not intended for use by people (including children) with reduced physical, sensory or mental abilities or for those with- out experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed in its use.
  • Page 9 • The Notebook is not intended for use by companies in the heavy industry sector. • To avoid damage from lightning strikes, do not operate the Note- book during thunderstorms. • Do not place any objects on top of the Notebook and do not exert pressure on the display.

  • Page 10: Never Carry Out Repairs Yourself

    2.3. Never Carry Out Repairs Yourself WARNING! Never try to open or repair the device yourself. There is a risk of electric shock. • If there is a fault, contact the Medion Service Center or other suita- ble specialist workshop. 2.4. Data Backup CAUTION! Back up your data on external storage media before each up- date.

  • Page 11: Environmental Requirements

    2.6. Environmental Requirements • The Notebook is most reliably operated at an ambient temperature between 5° C (+41° F) and 30° C (+86° F) and at a relative humidity between 20% and 80% (without condensation). • When powered off, the Notebook can be stored at temperatures between 0°...

  • Page 12: Ergonomics

    2.7. Ergonomics PLEASE NOTE! Avoid dazzle, reflections and strong bright-dark contrast in order to protect your eyes. The Notebook should never be placed next to a window because this is the bright- est part of the room in daylight. This brightness can make it more difficult for the eyes to adjust to the darker display.

  • Page 13: Connecting

    2.8. Connecting Follow the instructions below to connect your Notebook correctly and safely: 2.8.1. Power Supply DANGER! Do not open the housing of the mains adapter. There is a risk of electric shock when the housing is open. It does not contain any parts requiring maintenance.

  • Page 14: Information About The Touchpad

    • Maintain a distance of at least one metre from sources of high-fre- quency and magnetic interference (TV sets, loudspeakers, mobile phones, DECT telephones, etc.) in order to avoid malfunctions and data loss. • Please note that only shielded cables that are shorter than 3 me- tres may be connected to the external interfaces of this Notebook.

  • Page 15: Battery

    2.11. Battery CAUTION! Danger of explosion if battery is incorrectly replaced. Re- place only with the same or equivalent type recommen- ded by the manufacturer. Dispose of used batteries according to the manufacturer‘s instructions. Never attempt to disassemble or reassemb- le.

  • Page 16: Views

    4. Views 4.1. Open Notebook (illustration similar) Webcam Webcam LED Microphone Ambient light sensor Volume Button Windows Button 15 of 71...

  • Page 17: Left Side

    4.2. Left Side 11 12 13 (illustration similar) Power Socket LAN Port (RJ-45) HDMI Connector USB 3.0 Port USB 3.0 Port Mini Display Port Audio Out /Headset connection 4.3. Right Side (illustration similar) Multimedia Card Reader USB 2.0 Ports* Optical Drive Disc Eject Button Emergency Ejection Power ON/OFF...

  • Page 18: First Use

    5. First Use To operate your Notebook safety and ensure a long service life, you should read the “Operational safety” chapter at the beginning of this manual. All operating software is already fully preinstalled on the Notebook so there is no need for you to install any more drivers and you can get started right away.

  • Page 19: Power Supply

    ` Switch the Notebook on by pressing the on/off switch (19). The Notebook will now start and run through various steps. PLEASE NOTE! There should be no bootable disk (e.g. the recovery disc) in the optical drive as this will prevent the operating system from being loaded from the hard drive.

  • Page 20: Mains Power

    6.2. Mains Power Your Notebook comes with a universal mains adapter for alternating current which automatically adapts to the available power source. The following values are sup- ported: AC 100–240 V~/50–60 Hz. Observe the safety information concerning the power supply on pages 12 ff. The adapter is connected to an AC outlet via a mains cable.

  • Page 21: Battery Mode

    The Microsoft Store allows you to purchase new apps or update previously installed apps. If you log in on a local account, you can set up a Microsoft account later at any time. The following animated windows simply contain information about using the ®...

  • Page 22: Removing The Battery

    6.3.2. Removing the Battery ` To remove the battery pack, slide the battery lock and to the ‘lock open’ position and remove the battery pack from the compartment. CAUTION! Do not remove the battery while the Notebook is switched on or data may be lost.

  • Page 23: Power Management (Power Options)

    6.3.5. Battery Performance The actual operating time varies depending on the configuration of the power-sav- ing functions. You can configure these to suit your requirements in the Control Pa- nel under System and Security, Power Options. Note: your Notebook consumes more power when running certain applications, e.g.

  • Page 24: Eco Function (Optional)

    6.5. ECO Function (optional) You will be able to save energy and extend the running time of your battery by de- liberately activating functions. The ECO Function is switched on or off by means of the Fn + F2 key combination. 7.

  • Page 25: Touch Screen (Optional)

    Opening and closing the display can be assigned different functions in the power options. ` Fold over the display with your thumb and index finger until you feel some resis- tance (at 300°). ` The keyboard on the notebook will be automatically deactivated when it is placed onto a stable surface.
  • Page 26 7.3.2. Touch screen gestures These are the main gestures which allow you to run programs and access settings on your notebook: Diagram Command • Swipe from the left ` Swipe from the left edge to- edge towards the wards the centre of the screen centre to display the last app •...

  • Page 27: Screen Resolution

    Diagram Command ` Press an app tile and hold it down to move the app to a new location Hold down ` Press the top edge of an open app and hold it down to close it and drag the app to the bot- tom edge of the screen ` Tap on the required app to open it...

  • Page 28: Appearance And Customisation

    7.5. Appearance and Customisation This program gives you the option of customising your desktop. This includes the background image, the screensaver and other settings for your monitor and your graphics card. The program can be started as follows: Personalise. • Right-click on the Windows desktop and left-click on Via Settings, Personalisation, Display by double clicking with the left mouse •...

  • Page 29: Connecting An External Monitor

    7.6. Connecting an External Monitor The Notebook has a Mini Display Port (12) as well as an HDMI port (9) for an exter- nal monitor. ` Shut down your Notebook correctly. ` Plug the external monitor’s signal cable into the Mini Display Port socket on the Notebook (12).

  • Page 30: Data Input

    7.6.1. Duplicate This mode duplicates the Notebook display on the external monitor. PLEASE NOTE! In this mode the same screen resolution must be configured for both devices. 7.6.2. Extend In this mode, a blank desktop is displayed on the second (external) monitor. Win- dows on the first screen can be moved onto the second screen and vice versa.
  • Page 31 8.1.1. Notebook-Specific Keyboard Shortcuts Description Sleep Fn + F1 To configure these keys to suit your requirements, please go to Power Options. ECO function (optional) Fn + F2 Enables or disables the ECO function. Mute Fn + F4 Switches the sound on or off. Quieter Fn + F5 Decreases the playback volume.

  • Page 32: The Touchpad

    8.2. The Touchpad In normal mode, the cursor follows the direction specified by moving your fingers in the corresponding direction on the touchpad. ATTENTION! Do not use pens or other objects as this can damage your touchpad. The left and right mouse buttons are found in the lower section of the touchpad and can be used in the same way as those on a conventional mouse.
  • Page 33 8.2.1. Two-Finger Touchpad Operation Your touchpad supports two-finger operation which enables certain commands to be executed in some applications. You can perform the following commands using your touchpad: Image Command Function zoom out Drag two fingers togeth- from an object/ er or apart zoom in on an object Place one finger in the...

  • Page 34: The Hard Drive

    9. The Hard Drive The hard drive is your main memory medium and combines high storage capacity with rapid data access. You Notebook is supplied with an OEM version** of the Mi- crosoft Windows®8 operating system which supports all of the Notebook’s perfor- mance features.

  • Page 35: Important Directories

    9.1. Important Directories We have listed the most important directories below and described their contents. CAUTION! Do not delete or modify these directories or their content other- wise data may be lost or system functionality may be impaired. The C: drive root directory contains important files required for Windows® 8 startup. On delivery these files are hidden for security reasons.

  • Page 36: The Optical Drive

    10. The Optical Drive 10.1. Inserting a Disc Unlike optical drives on a desktop PC, the Notebook uses a mount to hold the disc. When inserting the disc ensure that it is pressed into the mount correctly and that it clicks into position there. PLEASE NOTE! Do not stick protective film or other adhesive labels to the disc.

  • Page 37: Playing/Reading Discs

    CAUTION! Do not try to remove the disc from the drive while the Note- book is accessing the optical drive. 10.1.1. Emergency Release of a Blocked Disc In the event of the drawer no longer opening automatically, it can be opened man- ually providing your device has an emergency eject hole.

  • Page 38: Issues Relevant To The Burner

    10.4. Issues Relevant to the Burner This section only concerns devices supplied with a CD-RW, a combination CD/DVD read drive or a DVD-RW drive. First some information about blank discs 10.4.1. Blank CDs and DVDs Normal CDs are pressed by a glass master and then sealed. With blank discs, digi- tal information is burned onto them using the drive’s laser.

  • Page 39: Installing Battery / Additional Hard Drive (Optional)

    10.5. Installing battery / additional hard drive (optional) You have the option of exchanging the optical drive for an additional hard drive or a battery. PLEASE NOTE! The additional hard drives/batteries are not included in the delivery. 10.5.1. Safety instructions •...

  • Page 40: The Sound System

    11. The Sound System 11.1. External Audio Connections Your Notebook has an integrated stereo speaker so you can always reproduce sound without additional devices. Using the external connections provides you with an ideal opportunity to connect your Notebook to external devices. The Fn + F5 and Fn + F6 keyboard shortcut enables you to adjust the volume.

  • Page 41: Network Operation

    12. Network Operation 12.1. What is a Network? We talk about a network when multiple computers are directly connected to one another. This allows users to transfer information and data with one another and to share their resources (printers and drives). Here are a few concrete examples: •...

  • Page 42: Bluetooth

    12.2.1. Requirements A so-called WLAN access point may be used as a remote station. A WLAN access point is a radio transmitting device that communicates with your Notebook and controls access to the connected network. WLAN access points are frequently found in large offices, airports, train stations, universities or Internet cafés.

  • Page 43: Flight Mode

    CAUTION! Do not operate the Bluetooth function in locations (e.g.: hos- pitals, aeroplanes, etc.) where there is sensitive equipment. Do not switch the device unless you are sure it will cause no inter- ference. 12.4. Flight Mode In flight mode, all wireless connections (e.g. WLAN, Bluetooth) are disabled. Flight mode is disabled by default to ensure that all wireless connections are available.

  • Page 44: The Multi-Card Reader

    13. The multi-Card Reader Memory cards are media that are used, e.g. in the field of digital photography, and are gradually replacing the diskette. The shape and capacity of a memory card can vary depending on the manufacturer. Your Notebook supports the following formats: •...

  • Page 45: The Universal Serial Bus Port

    15. The Universal Serial Bus Port The universal serial bus (USB 1.1 and USB 2.0) is a standard for connecting input de- vices, scanners and other peripherals. Up to 127 devices can be connected to the USB ports via a single cable. The USB 3.0 ports are fully backwards compatible with USB 2.0 and 1.1.

  • Page 46: Software

    Software 16.2. This section deals with the subject of software. We distinguish here between the operating system, the software (the applications), the Windows activation and the UEFI firmware configuration. PLEASE NOTE! The current Windows family currently includes Windows 8 and Windows 8.1.

  • Page 47: Windows ® 8 - What's New

    16.5. Windows ® 8 – What’s New 16.5.1. Microsoft Account A Microsoft account is an e-mail address and password for logging in to Windows ® 8. You can use any e-mail address. We recommend using the address you use to communicate with friends and log into your favourite web sites, however.

  • Page 48: Jump Lists

    16.5.3. Jump Lists Jump lists offer a practical way of calling up recently opened files. To display the re- cently used files, simply right-click on the application icon in the taskbar. Thus if you right-click on the Word icon, the recently used Word documents are displayed. You can also easily place other files you wish to have easily to hand in the jump list so that they are always displayed.

  • Page 49: Overview

    16.5.5. Improved Device Management Windows ® 8 allows you to connect, manage and use all devices via the central “De- vices” function. All devices are shown in a central location. With the new “Device Stage” technology, however, Windows® 8 goes one step fur- ther with device management.

  • Page 50: Logging In To Windows

    16.6.1. Logging in to Windows To be able to work with Windows ® 8, you must set up a Windows ® 8 user account. ` Move the mouse pointer into the top right or bottom corner of the display, Settings. move the mouse down and click ` Next, select Change PC settings.

  • Page 51: Linking A User Account To A Liveid

    16.7. Linking a User Account to a LiveID You can link your user account to a LiveID. This enables you to log in to any comput- er or mobile device connected to the Internet using your LiveID. ` Move the mouse pointer into the top right or bottom corner of the display, Settings.

  • Page 52: Windows® 8 Desktop

    Information such as the following may be displayed here, for example: Windows 8 App Windows 8 apps are executable programs. ® ® The “Desktop” tile opens the traditional Windows display. The Internet Explorer tile launches Internet Explorer PLEASE NOTE! Apps are applications that are displayed on a desktop with a program thumbnail.

  • Page 53: Working With Windows

    Information such as the following may be displayed here, for example: Classic desktop Desktop apps are applications that are displayed on a apps desktop with a program thumbnail. The app thumb- nails are bigger than the standard tiles. The classic “Power Recover” desktop app launches the system recovery program.
  • Page 54 Linking apps to the Start ` Right-click on the Start screen. screen ` Click All Apps in the bottom right hand cor- ner of the display. ` Right-click on the desired app to highlight it. ` Click Pin to Start in the bottom left-hand corner of the display.

  • Page 55: Control Panel

    Arranging apps ` Click and hold the left mouse button down on the desired app and drag it to the desired position. Selecting multiple apps ` Right-click the desired apps. 16.9.2. Using the Search Function Use the search function to find individual tasks, settings or apps quickly. ` Move the mouse pointer into the top right or bottom corner of the display and click Search.
  • Page 56 General ` Configure the general settings for time zone, spell checking, language and memory here. ` Reinstall the operating system without losing personal user data or key basic settings. ` Restore your Notebook to its factory settings. ` Perform a reboot with a CD inserted. Data protection ` Configure the security settings for apps, accounts and Windows...

  • Page 57: Windows ® 8 Power On/Off Functions

    16.11. Windows 8 Power On/Off Functions ® 8 allows you to restart your Notebook, put it into sleep mode or The new Windows ® shut it down. Changes can be made to the sleep settings at any time in the power options. In sleep mode the content of your Notebook’s RAM is preserved while practically all other components of your Notebook are disabled or their power consumption reduced to a minimum.

  • Page 58: Resetting The Notebook To Its Factory Settings

    16.13. Resetting the Notebook to its Factory Settings In the event of problems with the installation or other software problems which ® make it necessary to reinstall the software, Windows 8 offers three options for rein- ® stalling Windows 8 on your Notebook. First ensure that you have backed up all important data and programs.

  • Page 59: Uefi Firmware Configuration

    16.14. UEFI firmware configuration The UEFI firmware configuration (basic hardware configuration of your system) pro- vides you with a number of options for the configuration and operation of your notebook. For example, you can modify the operating mode for interfaces, security features or power supply management.

  • Page 60: Faq - Frequently Asked Questions

    17. FAQ – Frequently Asked Questions Do I need to install the discs supplied? − No All programs are preinstalled. The discs are provided as backup copies only. Where can I find the necessary drivers for my Notebook? − The drivers can be found in the second hard drive partition in the Drivers and Tools folders.

  • Page 61: Customer Service

    18. Customer Service 18.1. What To Do In Case of Hardware Problems Malfunctions can sometimes have quite trivial causes, but they may also be the re- sult of defective components. We have included a brief troubleshooting guide be- low which may help to solve any problems. If these tips don’t do the trick, then we’ll be more than pleased to help you out.

  • Page 62: Do You Need More Help

    18.3. Do You Need More Help? You’ve checked through the suggestions in the previous section and you’re still hav- ing problems with your device? Then call our hotline or contact us at www.medion. de/service. We’ll be glad to help you.

  • Page 63: Transport

    18.5. Transport Please note the following information if you wish to transport the Notebook: • Switch the Notebook off. This ensures that the hard drive heads are automati- cally moved to a safe area to avoid damage. Remove any inserted DVDs/CDs. •...

  • Page 64: Maintenance

    18.6. Maintenance CAUTION! None of the parts inside the Notebook housing require clean- ing or maintenance. You can increase the lifespan of your Notebook with the following measures: • Always unplug the device, disconnect all cables and remove the battery before cleaning. •...

  • Page 65: Care Of The Display

    18.7. Care of the Display • Close the Notebook when you are not working with it. Avoid scratching the sur- face of the screen because it can be easily damaged. • Make sure that no water droplets remain on the screen. Water can cause perma- nent discolouration.

  • Page 66: Notes For Service Technicians

    19.1. Notes for Service Technicians • Only service technicians may open up the Notebook housing or upgrade or modify your Notebook. • Use only original replacement parts. • Before opening the housing, disconnect all power and connecting cables and remove the battery. If the Notebook is not disconnect- ed from the power supply before being opened, there is a risk that components could be damaged.

  • Page 67: Recycling And Disposal

    20. Recycling and Disposal Should you have any questions concerning the disposal please contact your dealer or customer service. Packaging Your device has been packaged to protect it against transportation damage. Packaging is raw material and can be re-used or added to the recycling system.

  • Page 68: European En 9241-307 Class Ii Standard

    However, these approaches were mostly very complicated and var- ied from one manufacturer to the next. When handling warranty issues for all of its display products, MEDION therefore adheres to the strict and transparent require- ments of the standard ISO 9241-307, Class II; which has been briefly summarised below.
  • Page 69 Pixel defect types: • Type 1: permanently illuminated pixel (bright, white dot) even when not activated. A white pixel occurs due to the illumination of all three sub-pixels. • Type 2: non-illuminated pixel (dark, black dot) even when activated. • Type 3: abnormal or faulty red, green or blue sub-pixel (e.g.

  • Page 70: Fcc Compliance Statement

    21.1. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not ins- talled and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 71: Index

    22. Index Factory Settings .......... 57 FAQ ..............59 Battery Mode ..........20 Charging the Battery ......21 Help and Support ........58 Discharging the Battery ...... 21 HomeGroup ..........48 Inserting the Battery ......20 Removing the Battery ......21 Improved Desktop ........
  • Page 72 Recycling and Disposal ......66 Restarting ............56 Saving Energy ..........56 Sleep ............... 56 Software Getting to know Windows® 8 .... 45 Windows® 8 – What’s New ....46 Windows activation ......45 Sound card ............ 38 Taskbar ............46 Touchpad............
