3-12
You don't need to install any additional drivers for IEEE 1394 devices. The newest operation system
will fully support this feature. For example: Windows

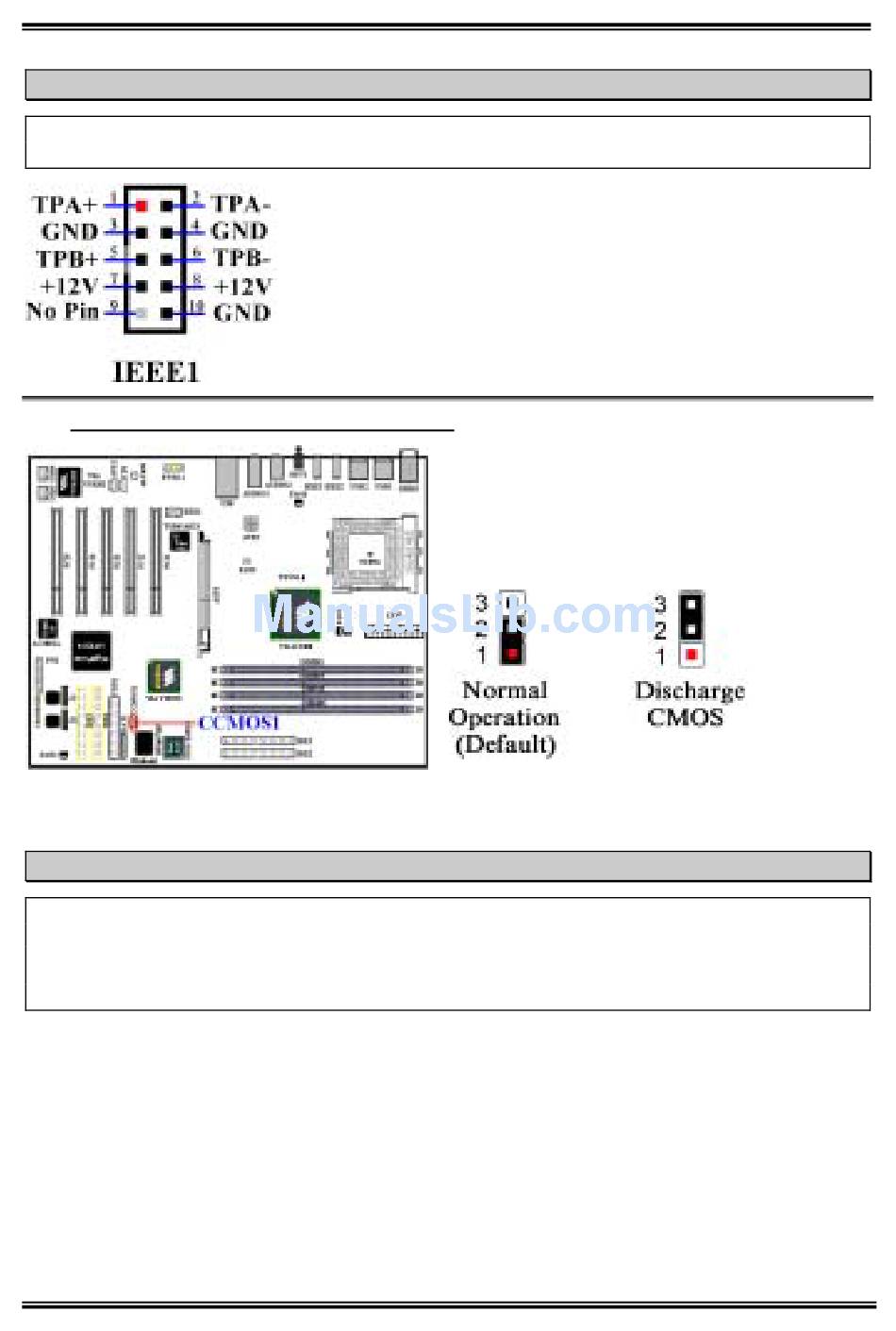

(7). CCMOS1 Header: CMOS Discharge Jumper
Note: Watch the pin position and the orientation
Before you clear the CMOS, you have to first turn the power off (including the +5V standby power).
Otherwise, your system may work abnormally.
After updating your BIOS and before boot up, please clear the CMOS first. Then put the jumper to its
default position. After that, you can reboot your system and ensure that your system is working fine.
AT7-MAX2
Note
®
2000, Windows
Jumper CCMOS1 used to discharge CMOS memory.
When you install the motherboard, make sure this
jumper is set for normal operation (pin 1 and 2
shorted). See figure below.
Note
®
XP, etc.
Chapter 3
