3-8
First, Let's see the headers that AT7-MAX2 uses, and what their functions are. We will show you all the
connectors and headers.
(1). Plug the Power connectors to the ATX1 and ATX2 Connectors
AT7-MAX2

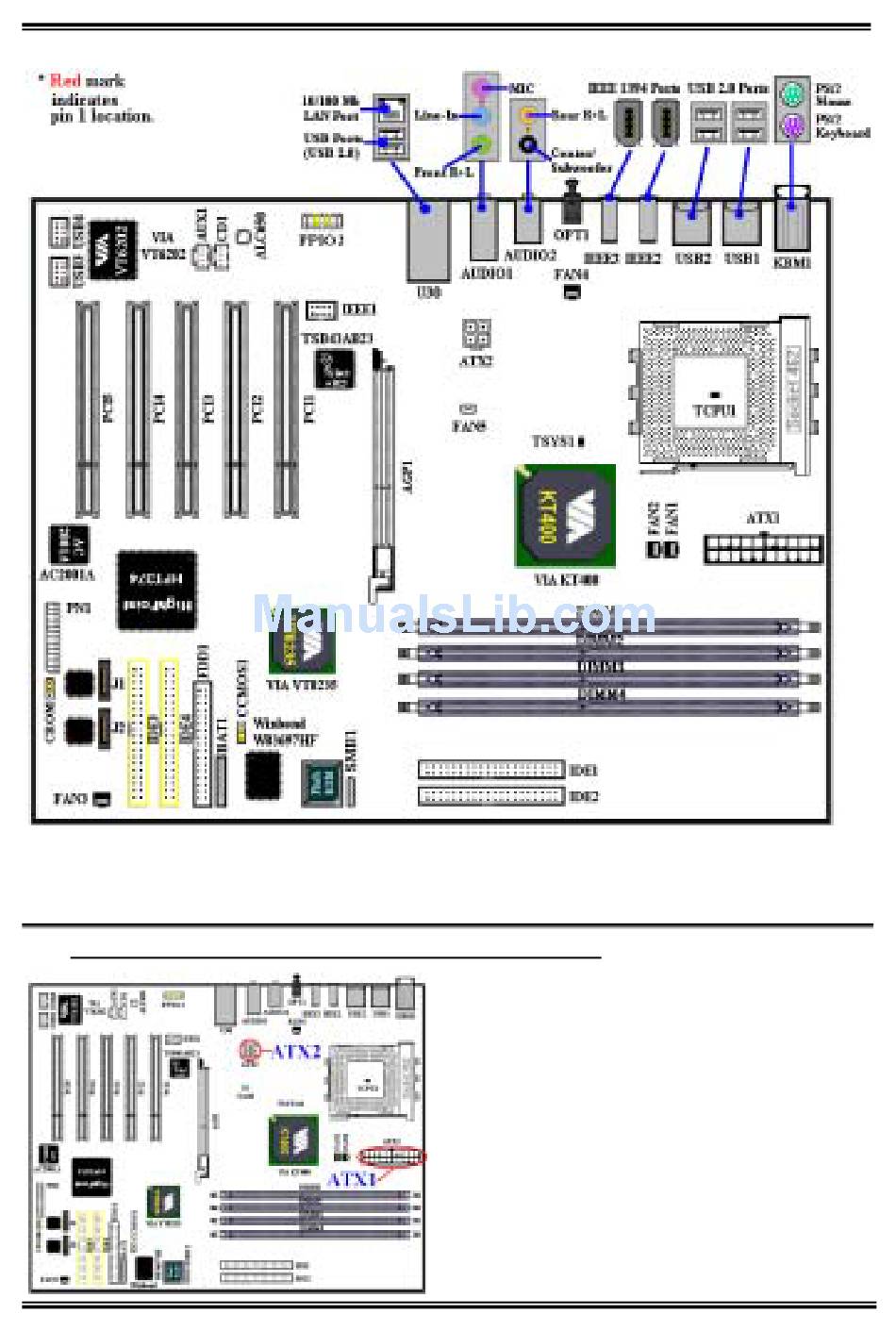

Figure 2-7. All connectors and headers for the AT7-MAX2
AT7-MAX2 had designed two power connectors
(ATX1 and ATX2), it is different from the regular
one. It can provide for power supply designed for
®
Pentium
4 processors, also can provide for general
designed ATX power to connect to AT7-MAX2. It's
a newly designed ATX12V1 +12VDC power with
300W, 20A +5VDC capacity at least for heavily
loaded system, and 720mA +5VSB at least for
supporting some special features.
Attach the connector from the ATX power supply to
the ATX1 and ATX2 connectors here (General
designed ATX power supply do not have ATX12V1
connector provide, so you don't need to connect
Chapter 3
