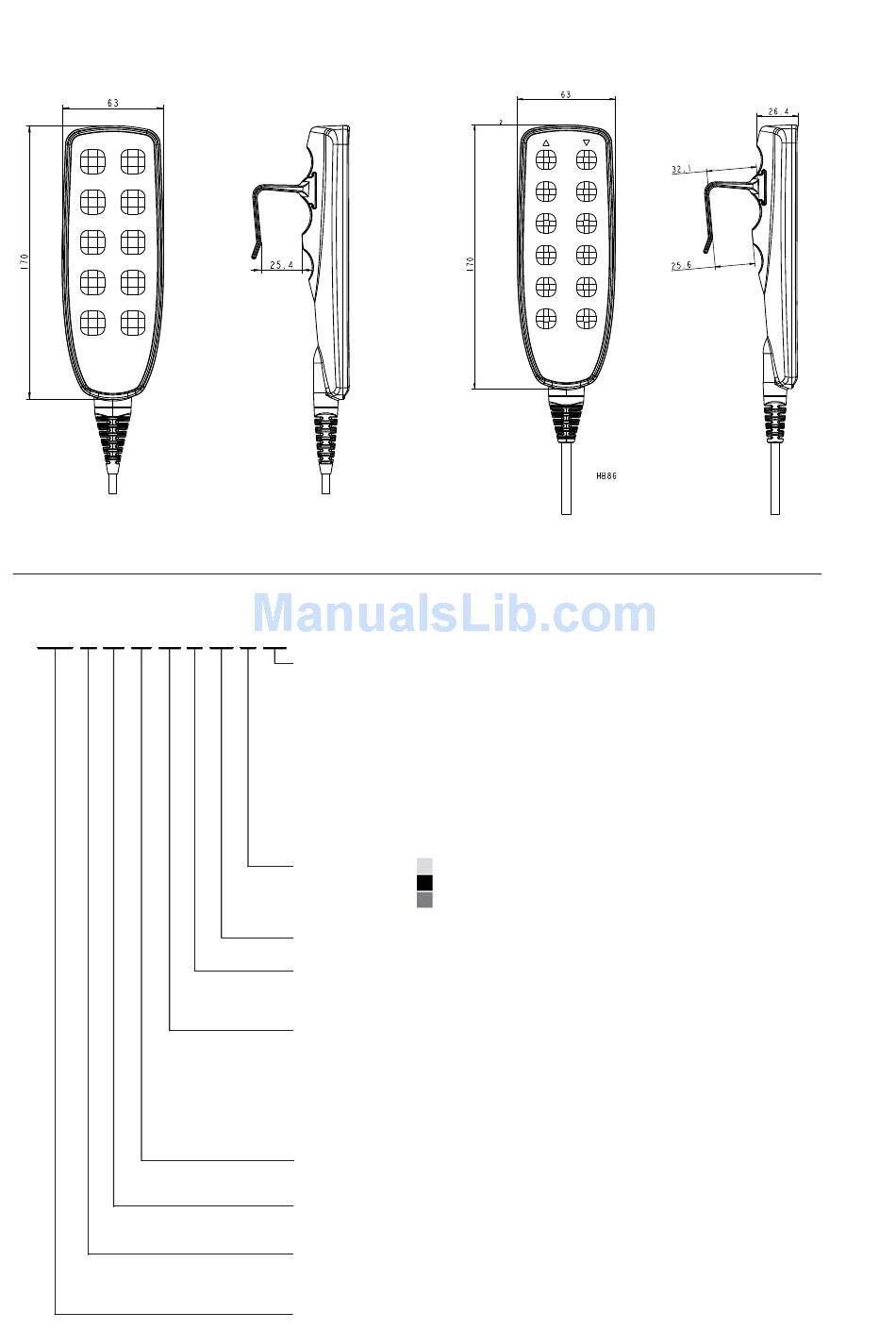

Dimensions (mm):

HB81 - HB85
Precautions:
• The HB86 version has a shorter distance between the buttons and cannot be approved according to EN 1970.
HB80

Ordering example:

HB8 1 5 6 00 0 01 + 01
Cable ID
Box colour
Front cover
Background light
Functionality
0x (HB40 like) for: CB6, (CB6 with 3 ch. = ch.1, 3 and 4) CB7, CB8, CB18
(max. 3 channels) TDC, CBJH, sometimes CB9..AX and CB12 - see also Hx
Ex (Matrix) for: CB9..Px (not CB9..PM/..PN) and CB14
EF (Matrix) for: CB140
Hx (HB40 like, common gnd) for: CB9..Ax and CB12 with simultaneous drive
EW (Memory / Matrix) for: CB9..Px (not CB9..PM/..PN) and CB14
Vx (OPENBUS™ functionality)
Housing
IP rating
Number of rows (exclusive rows for memory)
HB-type
Dimensions (mm):
HB86
Cable length
ID Total Coiled
01 850 mm 600 mm
03 850 mm 600 mm
11 750 mm 500 mm
13 750 mm 500 mm
21 2400 mm 0 mm
23 2400 mm 0 mm
31 2400 mm 0 mm
33 2400 mm 0 mm
45 850 mm 600 mm
61 850 mm 600 mm
63 850 mm 600 mm
+ = Grey - RAL7035 (not for CB6)
-
= Black (not for CB6)
= = Dark grey - RAL7016 (Only for CB6)
See later pages
0 = no
1 = green (ONLY Openbus™)
2 = blue (ONLY Openbus™)
5 5 ROW based - big bottons only 1 - 5 ROWs
6 ROW based - small bottons
6
4 IP54
9 IP66 washable
1 - 5 rows - Big bottoms
6 rows - Small bottoms
Color Plug
Grey DIN 8P
Black DIN 8P
Grey DIN 8P (7 wires max. HB83)
Black DIN 8P (7 wires max. HB83)
Grey DIN 8P (7 wires max. HB83)
Black DIN 8P (7 wires max. HB83)
Grey DIN 8P
Black DIN 8P
Dark Grey MJ RJ45 10P (not for OPENBUS)
Grey MJ RJ45 10P (6 wires)
Black MJ RJ45 10P (6 wires)
