P R O D U C T D A T A S H E E T

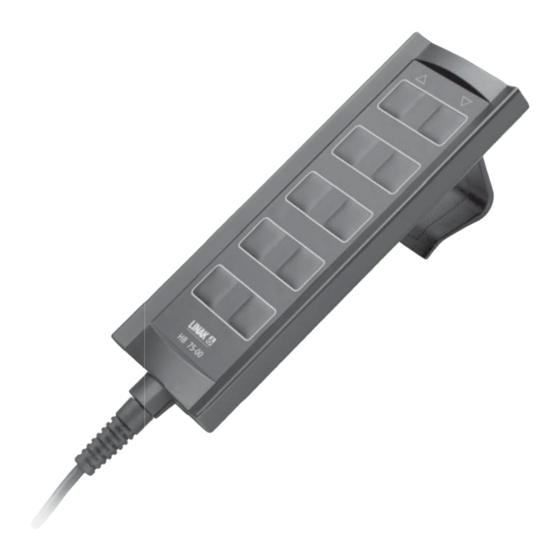

H B7 0
H AN DS E T
Features:
• Easily operated by both left and right handers
• Ergonomic and elegant design
• Tactile switches secure long lifetime
• Up to 10 easy-touch buttons
• Protection class IP66
• 600 mm coiled cable
• Colour black (RAL 9005)
Options:
• Customised front cover
• Memory options
• Simultaneous drive of more actuators
• Colour grey (RAL7035) / dark grey (RAL 7016
- only CB6/LA27 system)
• Protection class IP66 washable
• Protection class IP51 (CS27)
Usage:
• Compatible with most LINAK control boxes
• Approved according to: EN 60601-1, EN 60335-1
and UL 60601-1 as part of a LINAK actuator
system
re actuators
ark grey (RAL 7016
ble
ontrol boxes
1-1, EN 60335-1
AK actuator
HB70 combines ergonomic design and functional-
ity.
LINAK offers HB70 with protection class IP 66 as
standard and a range of options such as control
of up to 5 actuators, memory and simultaneous
drive. HB70 is designed to operate with most
LINAK control boxes.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Linak HB70
Summary of Contents for Linak HB70
- Page 1 HB70 combines ergonomic design and functional- ity. LINAK offers HB70 with protection class IP 66 as standard and a range of options such as control of up to 5 actuators, memory and simultaneous drive. HB70 is designed to operate with most...
- Page 2 Dimensions (mm): Precautions: • It is not possible to combine the HB7x with the binary based CB9..PM/PN. • The IP66 Washable version has a special adhesive for the front covers. • The HB75xEx used together with the CB140 will give trend and anti-trend on channel 1 and 2 of the control box when using the last button row.
-
Page 3: Ordering Example
HB7 1 6 00 + 4 2420 For customised front covers, please contact the sales department at LINAK A/S. Functionality overview for the HB7X : (HB40 like) for: CB6 (CB6 with 3 ch. = ch.1,3 and 4), CB7, CB8, CB18 (max. 3 channels),TDC, CBJH, sometimes CB9..AX and CB12 - see also Hx... - Page 4 HB71.. 0C/EC 00/E0 HB72.. 00/E0 0C/EC HB72.. 05/H5 1+2U 1+2D HB73.. 00/E0 For all types attention should be given to ensure that the channels shown correspond to the channels on the chosen control box. 01/E1 01/E1 02/H2 3+4U 3+4D 3D4U 3U4D 02/H2 03/H3...
- Page 5 HB73.. 05/H5 3+4U 1+2U 1+2D HB73.. HB74.. 06/H6 3+4U 1+2U 3+4U 3+4D HB74.. 04/H4 3+4U 2+3U 2+3D 3D4U 08/H8 07/H7 1+2U 1+2D 3+4D 1U2D 1D2U HB74.. 00/E0 07/H7 03/H3 3+4D 1+2D 3+4U 3+4D 08/H8 02/H2 1+2U 1+2D 3+4D 1D2U 1U2D 3U4D 0A/HA 1+2U...
- Page 6 HB74.. HB75.. 02/H2 1+2U 1+2D 3+4U 3+4D 2+3U 3D4U 3U4D HB75.. 09/H9 1+2U 1+2D 3+4U 3+4D 1D2U 1U2D HB73.. HB75.. HB75.. 0A/HA 1+2D 1+2U 04/H4 07/H7 3+4U 2+3D 1+2U 3D4U 3U4D E0/EF HB72.. EW/L0 EW/L0 0B/HB 1+2U 1+2D 08/H8 3+4D 3+4U 3+4D 1+2U...
- Page 7 HB70 Standard front covers - when ordering check that the handset functionality corresponds to the symbols on the front cover. The last 2 digits in the front cover code are to be used in the ordering example (xx). HBW071W-01 HBW072-00...
- Page 8 Specifications subject to change without prior notice. It is the responsibility of the product user to determine the suitability of LINAK A/S products for a specific application. LINAK will at point of delivery replace/repair defective products covered by the war- ranty if promptly returned to the factory.
