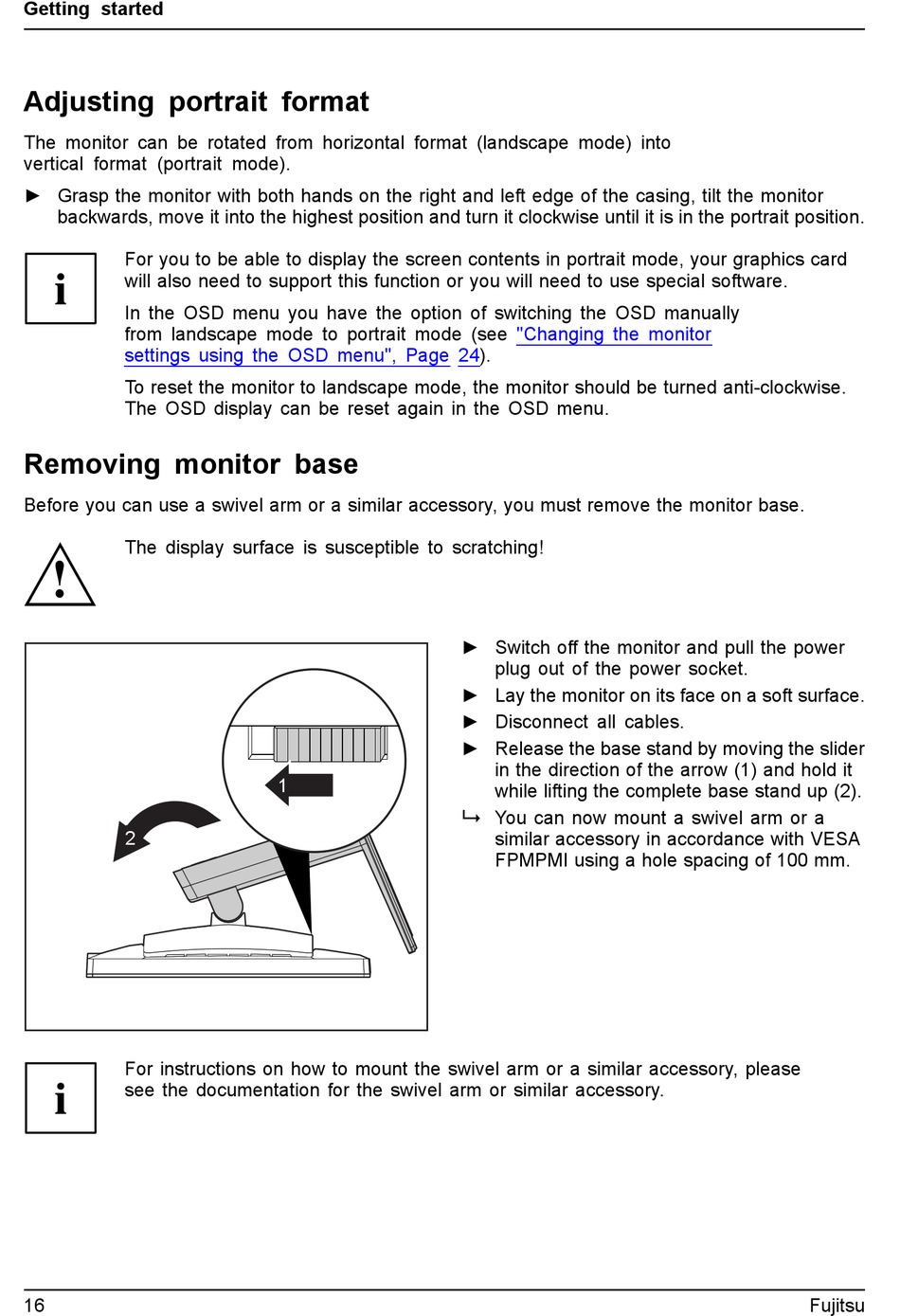

Getting started

Adjusting portrait format

The monitor can be rotated from horizontal format (landscape mode) into
vertical format (portrait mode).
► Grasp the monitor with both hands on the right and left edge of the casing, tilt the monitor
backwards, move it into the highest position and turn it clockwise until it is in the portrait position.
For you to be able to display the screen contents in portrait mode, your graphics card
will also need to support this function or you will need to use special software.
In the OSD menu you have the option of switching the OSD manually
from landscape mode to portrait mode (see
settings using the OSD menu", Page
To reset the monitor to landscape mode, the monitor should be turned anti-clockwise.
The OSD display can be reset again in the OSD menu.

Removing monitor base

Before you can use a swivel arm or a similar accessory, you must remove the monitor base.
The display surface is susceptible to scratching!
2
For instructions on how to mount the swivel arm or a similar accessory, please
see the documentation for the swivel arm or similar accessory.
16
1
"Changing the monitor
24).
► Switch off the monitor and pull the power
plug out of the power socket.
► Lay the monitor on its face on a soft surface.
► Disconnect all cables.
► Release the base stand by moving the slider
in the direction of the arrow (1) and hold it
while lifting the complete base stand up (2).

You can now mount a swivel arm or a
similar accessory in accordance with VESA
FPMPMI using a hole spacing of 100 mm.
