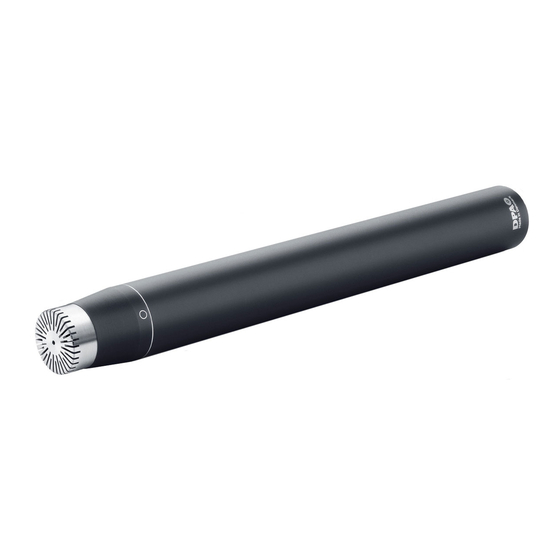

- Page 1 USER’S MANUAL Omnidirectional Microphones 4003 Type 4006 Type 4006-TL Type Included in kit solutions 3529-A Type 3530-A Type...
-
Page 2: Table Of Contents
USER’S MANUAL Omnidirectional Microphones 4003 Type 4006 Type 4006-TL Type Included in kit solutions 3529-A Type 3530-A Type CONTENTS Technical Description Full Specifications Care of Microphone Service and Repair Warranty CE Marking... -
Page 3: Technical Description
Ground use a 16 mm diameter prepolarized condenser cartridge. The cartridge has low self noise (typical 15 dB(A) re. 20 µPa) and high sensitivity (4003: 40 mV/Pa, 4006-TL: 35 mV/Pa and 4006: 10 mV/Pa). For optimum stability 130 V DC... - Page 4 The APEs are precision made from a special compact nylon The Diffuse-field Grid, Black material and will only fit the Types 4003 and 4006 fitted with the The Diffuse-field Grid DD0297 is supplied as standard. It is designed standard Free-field Grid DD0251. There are three different APEs in for diffuse-field recordings, or recordings in the far field.
- Page 5 Diffuse 5 dB 20 Hz 1 kHz Fig. 4. On-axis and diffuse-field responses of Types 4003, 4006 and Fig. 7. Diffuse-field response of Types 4003, 4006 and 4006-TL with 4006-TL with the Free-field Grid DD0251 fitted. Nose Cones UA0777 fitted.
- Page 6 50 kHz 5 kHZ Fig. 10. Directional characteristics of Types 4003, 4006 and 4006-TL Fig. 12. On-axis amplitude and phase responses of Types 4003, 4006 with Diffuse-field Grid DD0297. and 4006-TL plotting using a linear frequency axis for evaluation of the phase response.
- Page 7 5 dB On-axis 1 kHz 10 12 16 20 5 dB On-axis 1 kHz 10 12 16 20 5 dB On-axis 1 kHz 10 12 16 20 Fig. 15. Directional characteristics of APE L30B (top left), APE L40B, Fig. 14. Response characteristics of APE L30B (top), APE L40B and (top right) and APE L50B.
-
Page 8: Full Specifications
19 mm (0.75 in) PREAMPLIFIER: Capsule diameter: 16 mm (0.63 in) Weight: 150 g (5.29 oz) Frequency range: 4003: 20 Hz to 50 kHz ±0.2 dB, 5 Hz to 150 kHz -3 dB 4006 and 4006-TL: 20 Hz to 40 kHz ±1dB... - Page 9 The 3529-A UA0897 Shock Mount uses the DPA preamp included. This allows a completely transformer- UA0639 Microphone Clip less signal path and high voltage powering. Both sets are delivered in...
-
Page 10: Care Of Microphone
2 x UA0777 Nose Cone 2 x UA0638 Windscreen for 4003/4006/4006-TL Types 4003, 4006 and 4006-TL are supplied with an additional 2 x L30B Acoustic Pressure Equaliser, 30 mm (1.18 in) Ball Diffuse-field Grid DD0297 (see “Technical Description” and “Full 2 x L40B Acoustic Pressure Equaliser, 40 mm (1.57 in) Ball... - Page 11 USE OF ACOUSTIC PRESSURE EQUALISERS Acoustic Pressure Equalisers are only to be used with the standard silver protection grid DD0251. Do not touch the diaphragm Do not try to fit APEs on Nose Cone UA0777. The microphone must be inserted into the APE from the hole oppo- site to the O-ring.
-
Page 12: Service And Repair
WARRANTY All products from DPA Microphones are covered by a two-year limited warranty on both mechanical functionality and documented specifica- tions as long as the items are not mistreated, abused or modified in any way. In case of a warranty claim, your invoice is your warranty registration. - Page 13 DPA Microphones A/S Gydevang 42-44 DK-3450 Alleroed, Denmark Tel: +45 4814 2828 Fax: +45 4814 2700 info@dpamicrophones.com www.dpamicrophones.com...
