7.3. 3D Phase Sync Polarity

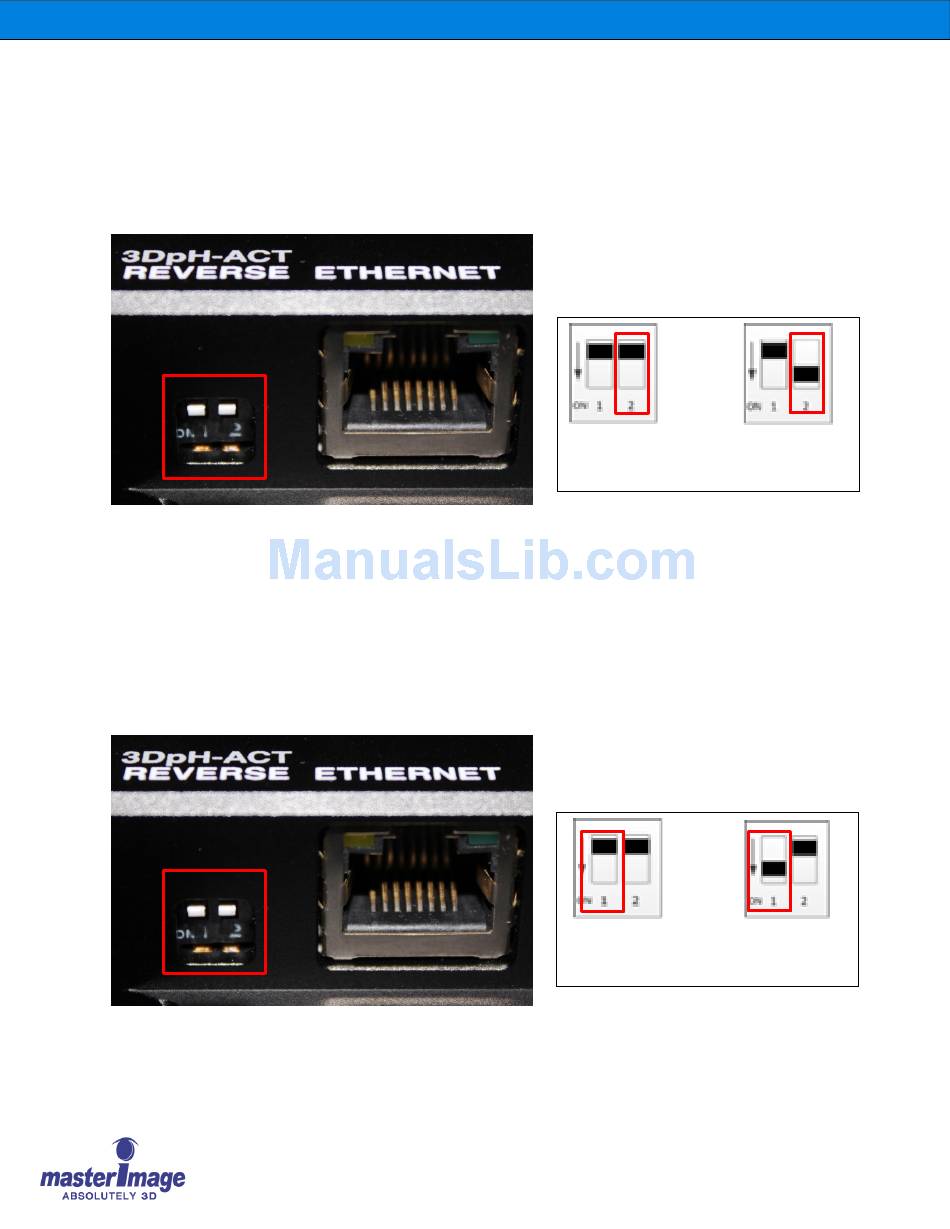

If necessary it is possible to change the sync polarity of the 3D phase by changing the position of
DIP switch 2 on the Control Box next to the Ethernet RJ-45 Connector.
Using the tip of your finger nail move the switch to the ON position as indicated to 'Invert' the sync
polarity.
7.4.

Actuator 3D Position

If necessary it is possible to change the actuator 3D position by changing the position of DIP switch
1 on the Control Box next to the Ethernet RJ-45 Connector.
Using the tip of your finger nail move the switch to the ON position as indicated to change the
Actuator 3D Position from Left to Right depending on your installation.
