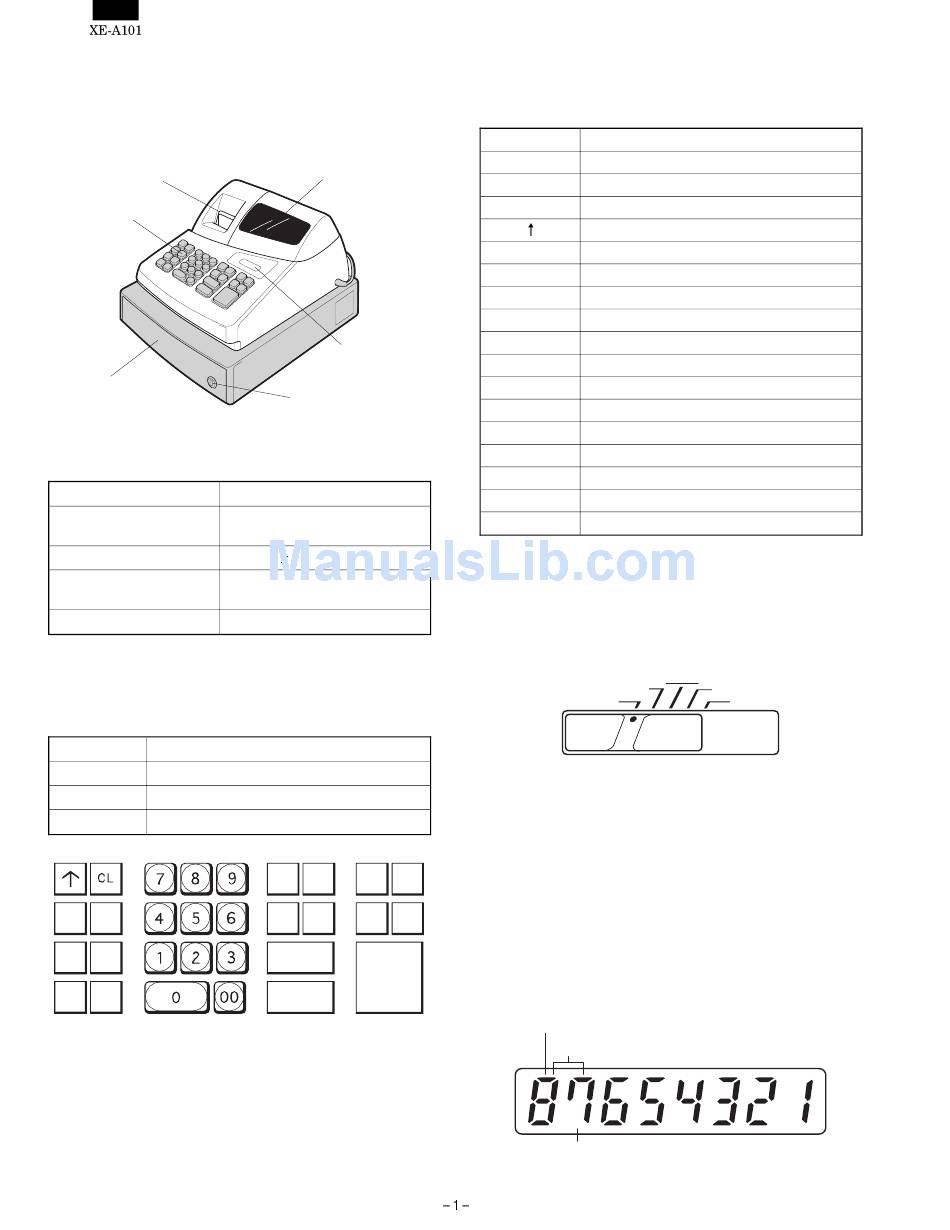

CHAPTER 1. SPECIFICATIONS

1. APPEARANCE
Front view
Printer cover
Keyboard
Drawer
2. RATING
Weight Approx 5.0kg
External dimension 330 (W) x 363 (D) x 253 (H) mm
(Including the drawer) 13 (W) x 14.3 (D) x 9.96 (H) inches
Power source AC 120V ( 10%), 60Hz
Power consumption Stand-by 4W
Operating 12.5W
Working temperature 0~40°C (32 to 104°F)
3. KEYBOARD
1) KEYBOARD LAYOUT
Type Normal keyboard
Key position STD/MAX 30
Key pitch 19 (W) x 19 (H) mm
Key layout Fixed type
TAX1
@/TM
SHIFT
/RA
TAX2
%
SHIFT
/PO
VOID ESC
Display
Mode switch
Drawer lock
SHIFT PLU CHK CLK#
7 8
#/
CH
SBTL
3 4
6
2
CA/AT/NS
5
1
2) KEY LIST
Keytop
0-9,00 Numeric keys
CL Clear key
@/TM Multiplication & Time display key
Paper feed key
Tax 1 Shift/RA Tax 1 shift and Received on account key
Tax 2 Shift/PO Tax 2 shift and Paid out key
% Percent keys
ESC Error escape key
VOID Void key
CLK# Clerk code Entry key
PLU PLU code entry key
SHIFT Department shift key
#/SBTL Non-add code & Tax Included subtotal key
CHK Check key
CH Charge key
CA/AT/NS Cash sale Amount tender and No Sale key
Dept1-8 Department key
4. MODE SWITCH
1) LAYOUT
•
Slid type
OFF
REG
5. DISPLAY
1) OPERATOR DISPLAY
Display device: LED numeric display
Number of line: 1 line
Number of positions: 8 positions numeric display
Color of display: Yellow / Green
Character size: Numeric 14 (H) x 8 (W) mm
(Layout)
Department code
PLU code
Repeat
Description
VOID
X/F
Z/PGM
